Quick Details
-
Brand Name:
-
BEIHAI
-
Model Number:
-
BEIHAI
-
Surface Treatment:
-
Smooth Surface
-
Type:
-
basalt fiber
-
Color:
-
Brown
-
Feature:
-
Chemical stability
-
Density (g/cm3):
-
2.63
-
Tensile Strength(MPa):
-
3200-3850
-
Elastic modulus (Gpa):
-
93
-
Elongation at break(%):
-
3.1
-
Softening point (℃):
-
1050
-
Working temperature(℃):
-
-260~650
-
Temporary temperature (℃):
-
1100
Quick Details
-
Application:
-
Reinforced Building
-
Technique:
-
Molded
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
BEIHAI
-
Model Number:
-
BEIHAI
-
Surface Treatment:
-
Smooth Surface
-
Type:
-
basalt fiber
-
Color:
-
Brown
-
Feature:
-
Chemical stability
-
Density (g/cm3):
-
2.63
-
Tensile Strength(MPa):
-
3200-3850
-
Elastic modulus (Gpa):
-
93
-
Elongation at break(%):
-
3.1
-
Softening point (℃):
-
1050
-
Working temperature(℃):
-
-260~650
-
Temporary temperature (℃):
-
1100
Product Introduction

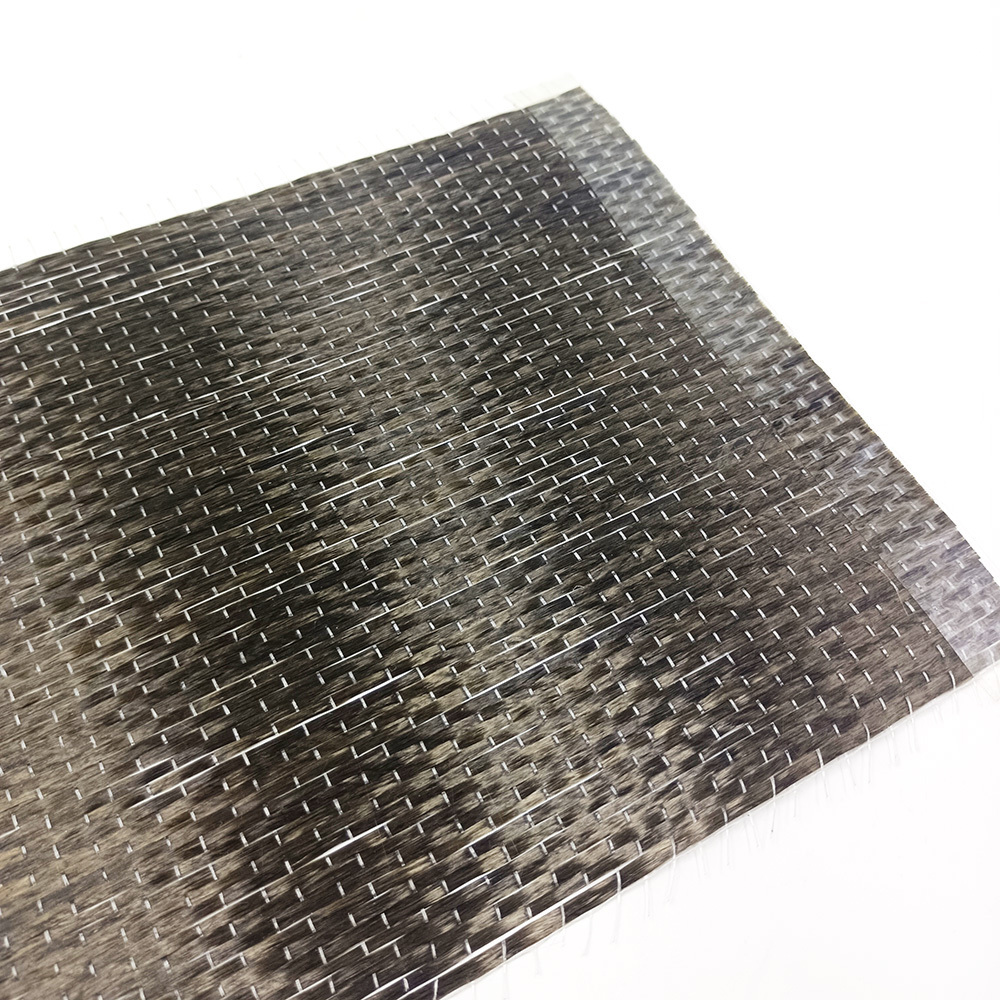

Basalt Fiber Unidirectional Cloth
Basalt fiber unidirectional cloth is a type of reinforcement fabric made from continuous basalt fibers aligned in a single direction. It is designed to provide high strength and stiffness in the specified direction, making it ideal for applications where load-bearing capacity and directional reinforcement are required.
Product Feature
1. High Strength-to-Weight Ratio: Basalt fiber unidirectional cloth offers excellent tensile strength and stiffness, providing high strength-to-weight ratio in the designated direction.
2. Directional Reinforcement: The fibers in the cloth are aligned in a single direction, allowing for targeted reinforcement to resist specific loads and stresses.
3. Corrosion Resistance: Basalt fibers exhibit good resistance to corrosion and chemicals, making the unidirectional cloth suitable for applications in corrosive environments.
4. Fire Resistance: Basalt fibers are naturally fire-resistant, providing enhanced fire protection to the composite structure.
5. Compatibility: Basalt fiber unidirectional cloth is compatible with various resin systems, enabling good adhesion and efficient composite manufacturing.
2. Directional Reinforcement: The fibers in the cloth are aligned in a single direction, allowing for targeted reinforcement to resist specific loads and stresses.
3. Corrosion Resistance: Basalt fibers exhibit good resistance to corrosion and chemicals, making the unidirectional cloth suitable for applications in corrosive environments.
4. Fire Resistance: Basalt fibers are naturally fire-resistant, providing enhanced fire protection to the composite structure.
5. Compatibility: Basalt fiber unidirectional cloth is compatible with various resin systems, enabling good adhesion and efficient composite manufacturing.
Production Process
Product Parameters
|
Style
|
Reinforcement
Yarn
|
Weave
|
Tensile
Intensity
|
Tensile
Modulus
|
Elongation
|
Thickness
|
Width
|
|
|
|
|
MPa
|
GPa
|
%
|
mm
|
cm
|
|
BH-150
|
132Tex
|
Unidirection
|
≥3000
|
≥85
|
3.2
|
0.10
|
10-100
|
|
BH-200
|
132Tex
|
Unidirection
|
≥3000
|
≥85
|
3.2
|
0.12
|
10-100
|
|
BH-280
|
800Tex
|
Unidirection
|
≥2800
|
≥85
|
3.2
|
0.15
|
10-100
|
|
BH-300
|
800Tex
|
Unidirection
|
≥2800
|
≥85
|
3.2
|
0.15
|
10-100
|
|
BH-350
|
800Tex
|
Unidirection
|
≥2800
|
≥85
|
3.2
|
0.25
|
10-100
|
|
BH-600
|
800Tex
|
Unidirection
|
≥2800
|
≥85
|
3.2
|
0.4
|
10-100
|
Application
1. Aerospace and Defense: Basalt fiber unidirectional cloth is widely used in aerospace and defense applications, such as aircraft components, missile casings, and armor panels. It provides high strength and stiffness in critical load-bearing areas.
2. Automotive and Transportation: The unidirectional cloth finds applications in the automotive industry for reinforcing composite parts, including chassis components, body panels, and structural reinforcements. It offers lightweight reinforcement and improved mechanical properties.
3. Sporting Goods: Basalt fiber unidirectional cloth is utilized in the production of sporting goods, such as bicycle frames, tennis rackets, and golf club shafts. It provides directional reinforcement, improving the strength and performance of the equipment.
4. Wind Energy: Basalt fiber unidirectional cloth is employed in the manufacturing of wind turbine blades to provide specific reinforcement along the blade's length, enhancing strength and stiffness for efficient power generation.
5. Marine and Offshore: The unidirectional cloth is used in marine and offshore applications, including boat hulls, yacht masts, and oil rig components. It offers directional reinforcement to withstand the forces and loads experienced in these environments.
2. Automotive and Transportation: The unidirectional cloth finds applications in the automotive industry for reinforcing composite parts, including chassis components, body panels, and structural reinforcements. It offers lightweight reinforcement and improved mechanical properties.
3. Sporting Goods: Basalt fiber unidirectional cloth is utilized in the production of sporting goods, such as bicycle frames, tennis rackets, and golf club shafts. It provides directional reinforcement, improving the strength and performance of the equipment.
4. Wind Energy: Basalt fiber unidirectional cloth is employed in the manufacturing of wind turbine blades to provide specific reinforcement along the blade's length, enhancing strength and stiffness for efficient power generation.
5. Marine and Offshore: The unidirectional cloth is used in marine and offshore applications, including boat hulls, yacht masts, and oil rig components. It offers directional reinforcement to withstand the forces and loads experienced in these environments.
