Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Shandong, China, Shandong,China
-
Brand Name:
-
You Guang, You Guang
-
Model Number:
-
YJV, YJV
-
Hot Sale Size:
-
70mm,90mm,95mm,120mm,400mm
-
Color:
-
Customized Color
-
Other Core:
-
3/4/5 Core
-
Rated voltage:
-
0.6-1KV
-
Standard:
-
IEC60502
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Industrial
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Shandong, China, Shandong,China
-
Brand Name:
-
You Guang, You Guang
-
Model Number:
-
YJV, YJV
-
Hot Sale Size:
-
70mm,90mm,95mm,120mm,400mm
-
Color:
-
Customized Color
-
Other Core:
-
3/4/5 Core
-
Rated voltage:
-
0.6-1KV
-
Standard:
-
IEC60502
|

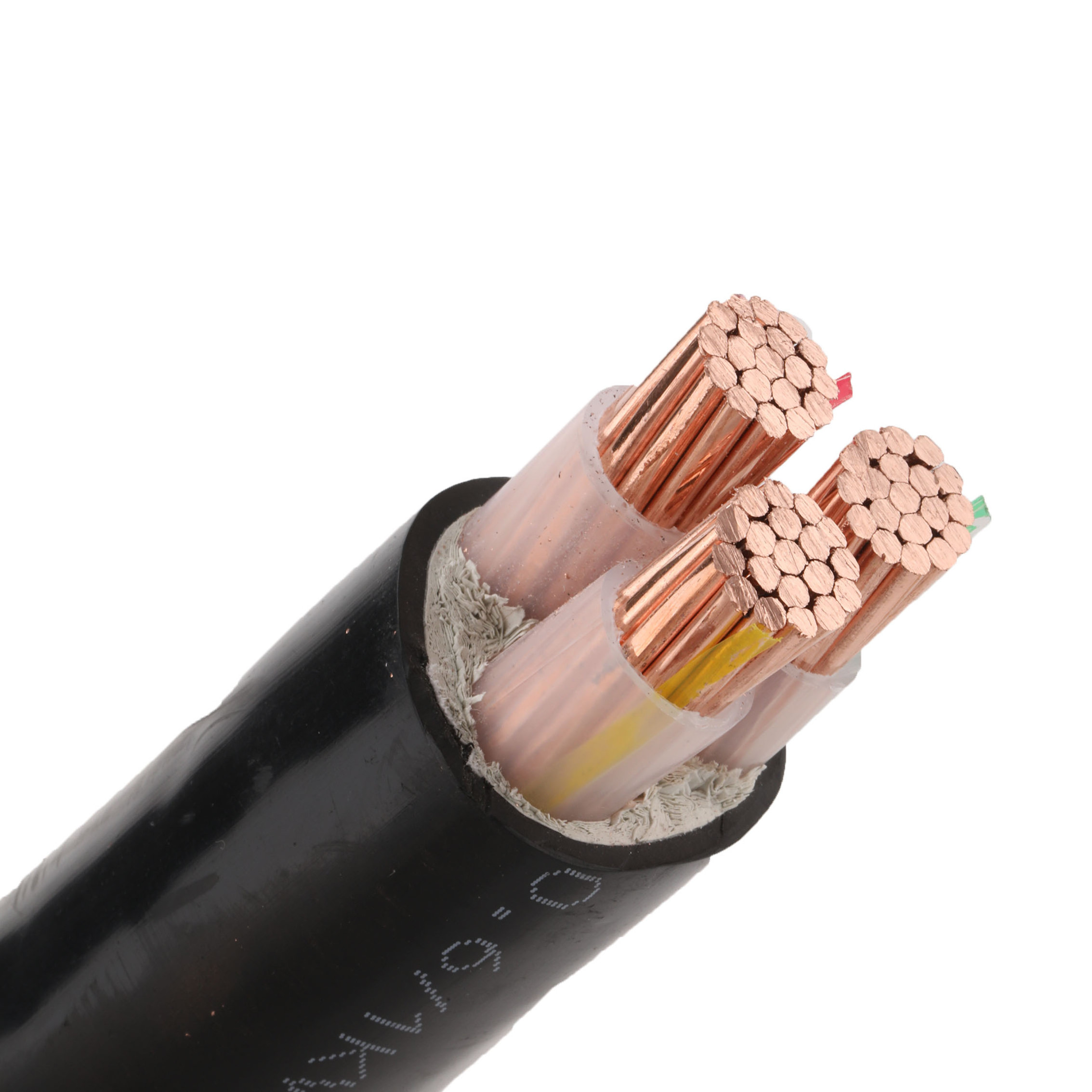

Conductor
|
Copper or aluminium
|
|
Insulation
|
Materials such as cross-linked polyethylene (XLPE) provide high temperature resistance and excellent dielectric strength-providing enhanced electrical properties.
|
|
Cores
|
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
|
|
Bedding
|
A layer to create a protective barrier between the insulation and the armour.
|
|
Armour
|
SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured
|
|
Sheath
|
The constituent parts of the cable are held together by a sheath offering a further level of protection. Black sheaths can be carbon-loaded for UV stability.
|
|
Voltage
|
Voltage ratings of 0.6-1KV, 6.35-11KV and 19-33KV.
|
|
Application
|
Building, engineered, railway, plant construction, shool, hospital, underground and so on.
|
|
nominal cross section area of conductor(mm²)
|
Nominal insulation thickness（mm）
|
Nominal thickness of sheath（mm）
|
Approximate outer diameter of cable？（mm）
|
Approximate cable weight
|
|
|
|
|||
|
|
|
|
|
YJV32
|
YJLV32
|
YJV33
|
YJLV33
|
|||
|
4×4
|
0.7
|
1.8
|
17
|
550
|
495
|
510
|
475
|
|||
|
4×6
|
0.7
|
1.8
|
18
|
670
|
605
|
625
|
560
|
|||
|
4×10
|
0.7
|
1.8
|
21
|
1215
|
1115
|
1160
|
1060
|
|||
|
4×16
|
0.7
|
1.8
|
25
|
1555
|
1420
|
1500
|
1355
|
|||
|
4×25
|
0.9
|
1.8
|
29
|
2010
|
1835
|
2010
|
1760
|
|||
|
4×35
|
0.9
|
1.9
|
33
|
2830
|
2425
|
2735
|
2340
|
|||
|
4×50
|
1.0
|
2.1
|
35
|
3370
|
2740
|
3260
|
2640
|
|||
|
4×70
|
1.1
|
2.2
|
39
|
4370
|
3240
|
4250
|
3010
|
|||
|
4×95
|
1.1
|
2.3
|
43
|
5585
|
3510
|
5445
|
3390
|
|||
|
4×120
|
1.2
|
2.5
|
47
|
7135
|
4175
|
6965
|
4005
|
|||
|
4×150
|
1.4
|
2.7
|
52
|
8515
|
4860
|
8325
|
4670
|
|||
|
4×185
|
1.6
|
2.8
|
57
|
10315
|
5740
|
10085
|
5515
|
|||
|
4×240
|
1.7
|
3.1
|
63
|
12925
|
6920
|
12655
|
6650
|
|||
|
4×300
|
1.8
|
3.3
|
68
|
16490
|
8950
|
16160
|
8620
|
|||
|
4×400
|
2.0
|
3.5
|
74
|
20715
|
11085
|
20125
|
10830
|
|||
|
5×4
|
0.7
|
1.8
|
18
|
620
|
495
|
580
|
450
|
|||
|
5×6
|
0.7
|
1.8
|
19
|
760
|
570
|
715
|
525
|
|||
|
5×10
|
0.7
|
1.8
|
24
|
1390
|
1070
|
1330
|
1010
|
|||
|
5×16
|
0.7
|
1.8
|
27
|
1820
|
1315
|
1750
|
1245
|
|||
