Quick Details
-
Certification:
-
ISO 9001:2008
-
Molecular weight:
-
2.5 million to 9 million
-
Elongation at break:
-
≥300%
-
Impact strength:
-
198KJ/m2
-
Wear consumption:
-
1.3mg
-
Coefficient of friction:
-
0.1~0.2
-
Tensile strength:
-
37Mpa
-
Temperature variations:
-
-80℃~80℃
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Self-lubricating mobile ice rink sheet synthetic ice skating rinks
-
Color:
-
white, black, yellow, depend on the clients' requirements
-
Certification:
-
ISO 9001:2008
-
Molecular weight:
-
2.5 million to 9 million
-
Elongation at break:
-
≥300%
-
Impact strength:
-
198KJ/m2
-
Wear consumption:
-
1.3mg
-
Coefficient of friction:
-
0.1~0.2
-
Tensile strength:
-
37Mpa
-
Temperature variations:
-
-80℃~80℃

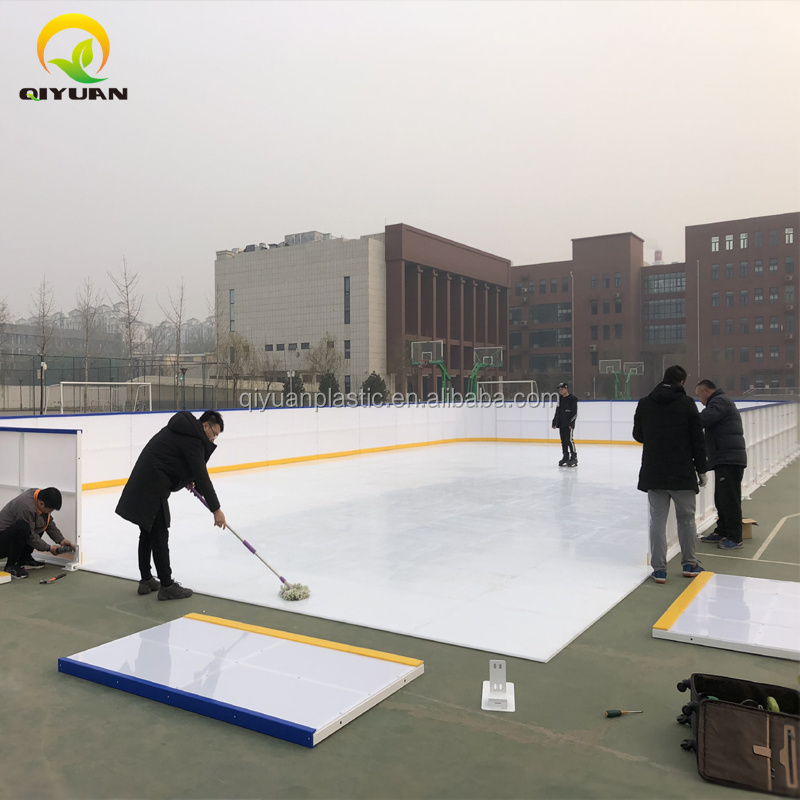

Self-lubricating mobile ice rink sheet synthetic ice skating rinks
General Properties of UHMW-PE pad
|
Property |
Test Method |
Reference rang |
Unit |
|
Molecular Weight |
|
1.5-9 million |
|
|
Density |
ISO 1183-1:2012/DIN53479 |
0.92-0.98 |
g/cm³ |
|
Compression Strength |
ISO 604:2002 |
≥32 |
Mpa |
|
Tensile Strength |
ISO 527-2:2012 |
≥22 |
Mpa |
|
Elongation at break |
ISO 527-2:2012 |
≥300 |
% |
|
Dynamic Friction Coefficient |
ASTM D 1894 /GB 10006-88 |
≤0.18 |
|
|
Notched impact strength (charpy) |
ISO 179-1:2010/GB/T 1043.1-2008 |
≥100 |
kJ/ m2 |
|
Abrasion wear index |
ES-X60210-2008 |
≤30 |
mg |
|
Vicat softing point |
ISO 306:2004 |
≥80 |
℃ |
|
Hardness Shore-D |
ISO 868:2003 |
61-66 |
D |
Select Ultra High Molecular Weight Polyethylene (UHMWPE) Synthetic ice rink panel for:
Commercial use
Figure skating
Hockey practice
Blade&Roller skating
Select High Density Polyethylene (HDPE) Synthetic ice rink panel for:
Home or backyard ice skating entertainment
Home ice hockey and roller games and practice
Properties:
-
N o costs of maintenance
-
N o energetic costs
-
Q uick and easy installation (non requirements of specialized personnel)
-
O utdoor and indoor possibilities
-
100% recyclable and non-toxic
- zero water absorption
Main advantages of a synthetic ice rink over a real ice rink:
Versatility:
Personali z ed rink shapes and sizes
Choice of rink surface colors
Different thicknesses according to need
Maintenance:
No compressors or complex machinery
No cold generation (no chillers, no generators)
Low maintenance energy cost
Low water consumption
Low maintenance costs
Applications:
Indoor and outdoor skating
Wide variety of uses
Great for places where a real ice rink cannot be installed for technical or aesthetic reasons
Quick installation (approximately 3 days)
International standard pallets with plastic film for hdpe roller skating rinks plastic synthetic uhmwpe panel ice rink
