XCMG Authenticity guaranteed fork lift solid tires FD25T hydraulic fork lift price
XCMG Authenticity guaranteed fork lift solid tires FD25T hydraulic fork lift price
XCMG Authenticity guaranteed fork lift solid tires FD25T hydraulic fork lift price
XCMG Authenticity guaranteed fork lift solid tires FD25T hydraulic fork lift price
XCMG Authenticity guaranteed fork lift solid tires FD25T hydraulic fork lift price
XCMG Authenticity guaranteed fork lift solid tires FD25T hydraulic fork lift price
XCMG Authenticity guaranteed fork lift solid tires FD25T hydraulic fork lift price
XCMG Authenticity guaranteed fork lift solid tires FD25T hydraulic fork lift price

XCMG Authenticity guaranteed fork lift solid tires FD25T hydraulic fork lift price

FOB Reference Price: Get Latest Price
≥1 Pieces
US $30000
≥5 Pieces
US $10000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Fork Length:
1070mm
Fork Width:
120mm
Overall Dimensions:
2643*1150*2215mm
Weight (KG):
3950 kg
After-sales Service Provided:
Overseas service center available
Load Centre:
500mm
Total Weight:
3950kg
Travel Speed (No Load):
19km/h
Turning Radius (Outside):
2365mm
Marketing Type:
Hot Product 2019

Quick Details

Warranty:
1 Year
Place of Origin:
Jiangsu, China
Brand Name:
XCMG
Fork Length:
1070mm
Fork Width:
120mm
Overall Dimensions:
2643*1150*2215mm
Weight (KG):
3950 kg
After-sales Service Provided:
Overseas service center available
Load Centre:
500mm
Total Weight:
3950kg
Travel Speed (No Load):
19km/h
Turning Radius (Outside):
2365mm
Marketing Type:
Hot Product 2019
Products Description

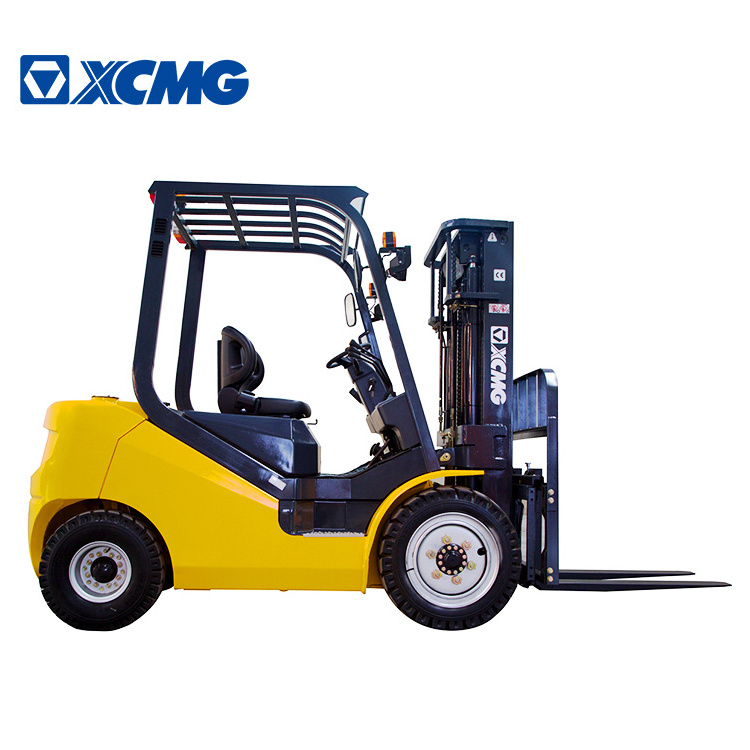

XCMG Authenticity guaranteed fork lift solid tires FD25T hydraulic fork lift price
XCMG Diesel Forklift provide you with multiple choice as per your real need, we have different reliable engines for choice. All these engine have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of client across the worldwide.
These engines are specifically designed for the forklift use, with low fuel consumption, less noise and vibration, all these features improve the whole performance of the forklift.
High efficiency is also delivered through the performance of the axles, the excellent brake system make sure the forklift operate with safety, the steering axle provide prompt and precise feedback to the driver when steering.
Advantages and Highlights:
1, One-piece designed of suspension frame.
2, New water tank & cooling system.
3, Larger operation space.Optimized steering wheel, operating handle and pedals.
4, High-efficiency hydraulic system, lower fuel consumption.
5, Enhanced wide view mast improves the work efficiency and operating safety.
Specification
Model
Unit
FD25T-E
FD25T-F
FD25T-JB
FD25T-JC
FD25T-JE
Power Type
Diesel
Rated Load Capacity
kg
2500
Load Centre
mm
500
Rated Lift Height
mm
3000
Free Lift Height
mm
100
Fork Size (L×W×T)
mm
1070×120×40
Mast Tilt Angle (F/R, α°/β°)
deg
6°/12°
Fork Overhang (Wheel Center to Fork Face)
mm
479
Rear Overhang
mm
520
Ground Clearance (Bottom of Mast)
mm
130
Length to Face of Fork (Without Fork)
mm
2643
Overall Width
mm
1150
Mast Lowered Height
mm
2055
Mast Extended Height (With Backrest)
mm
4070
Overhead Guard Height
mm
2215
Turning Radius (Outside)
mm
2365
Min.Aisle width for pallets
mm
4120
Travel Speed (No Load)
km/h
19
Lifting Speed (Full Load)
mm/sec
510
Lowering Speed (Full Load)
mm/sec
450
Max.Gradeability (Full Load)
%
20
Tyre (Front x 2)
mm
7.00-12-12PR
Tyre (Rear x 2)
mm
6.00-9-10PR
Total Weight
kg
3950
Battery
V/Ah
12/90
Engine Model
C490BPG-237
C490BPG -37
C240PKJ30
4TNE92
4TNE98
Engine Manufacturer
XINCHAI
XINCHAI
ISUZU
YANMAR
YANMAR
