Quick Details
-
Color:
-
Orange
-
Place of Origin:
-
Hubei, China
-

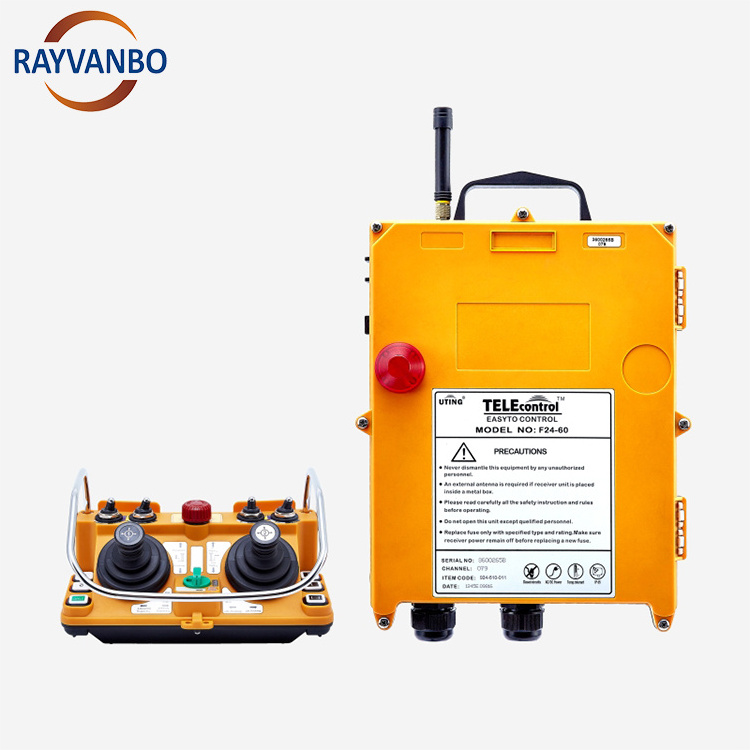

Product name:
-
Industrial Remote Control
-
Model:
-
F24-60
-
Application:
-
Industrial Equipment
-
Safety code:
-
32 bits (4.3billion)
-
Control distance:
-
Approx 100m(200 meters is customized)
-
Enclosure protector grade:
-
IP 65
-
Frequency range:
-
VHF: 310-331MHz; UHF: 425-446MHz
-
material:
-
Glass-Fiber PA
-
Battery:
-
2 AA batteries
-
Temperature range:
-
- 40℃~+85℃
Quick Details
-
Function:
-
Waterproof, LED indicator light
-
Brand Name:
-
RAYVANBO
-
Model Number:
-
F24-60
-
Color:
-
Orange
-
Place of Origin:
-
Hubei, China
-
Product name:
-
Industrial Remote Control
-
Model:
-
F24-60
-
Application:
-
Industrial Equipment
-
Safety code:
-
32 bits (4.3billion)
-
Control distance:
-
Approx 100m(200 meters is customized)
-
Enclosure protector grade:
-
IP 65
-
Frequency range:
-
VHF: 310-331MHz; UHF: 425-446MHz
-
material:
-
Glass-Fiber PA
-
Battery:
-
2 AA batteries
-
Temperature range:
-
- 40℃~+85℃
Products Description
Product Specifications :
12V UHF : The Receiver power supply 12V AC DC . Frequency UHF 425~446MHz . Arrow buttons
18-65V UHF : The Receiver power supply 18-65V AC DC . Frequency UHF 425~446MHz . Arrow buttons
65-440V UHF : The Receiver power supply 65-440V AC DC . Frequency UHF 425~446MHz . Arrow buttons
F24-60 Function Characteristic :
1. 6 function buttons, 2 three-position and 2 two-position rotating switch, stop, rotary start switch .
2. 2 pcs five-step joysticks with 10 million times of mechanical life and pure proportion.
3. Control contact is up to 40.
4. With battery voltage warning device, the power supply is cut off during low power.
5. Safety switch key is to prevent from unauthorized user.
6. Program the button function by computer software.
( The program software /data line need to buy extra )
7. The spare buttons can be programmed to normal, toggle, interlock or start, etc.
( The program software /data line need to buy extra )
8. Start button can be program to be start, normal, toggle function etc.
( The program software /data line need to buy extra )9. Installed with proportional module for analog signal output (optional)
( The program software /data line need to buy extra )
F24-60 Standard Configuration:
1 pieces transmitters (with hanging belt)
1 piece receiver with 1.5M cable connector
1 pieces dust bag
1 piece english manual
18-65V UHF : The Receiver power supply 18-65V AC DC . Frequency UHF 425~446MHz . Arrow buttons
65-440V UHF : The Receiver power supply 65-440V AC DC . Frequency UHF 425~446MHz . Arrow buttons
F24-60 Function Characteristic :
1. 6 function buttons, 2 three-position and 2 two-position rotating switch, stop, rotary start switch .
2. 2 pcs five-step joysticks with 10 million times of mechanical life and pure proportion.
3. Control contact is up to 40.
4. With battery voltage warning device, the power supply is cut off during low power.
5. Safety switch key is to prevent from unauthorized user.
6. Program the button function by computer software.
( The program software /data line need to buy extra )
7. The spare buttons can be programmed to normal, toggle, interlock or start, etc.
( The program software /data line need to buy extra )
8. Start button can be program to be start, normal, toggle function etc.
( The program software /data line need to buy extra )9. Installed with proportional module for analog signal output (optional)
( The program software /data line need to buy extra )
F24-60 Standard Configuration:
1 pieces transmitters (with hanging belt)
1 piece receiver with 1.5M cable connector
1 pieces dust bag
1 piece english manual
Specification
|
F24-60 Transmitter Parameters
|
|
|
|
|
||||
|
Material
|
|
Glass-Fiber PA
|
|
|
||||
|
Enclosure protection class
|
|
IP65
|
|
|
||||
|
Frequency range
|
|
VHF: 310-331MHz (UHF: 425-446MHz is optional)
|
|
|
||||
|
Transmitter power
|
|
≤10dBm
|
|
|
||||
|
Transmitter power supply
|
|
2 AA alkaline batteries (not included)
|
|
|
||||
|
Safety code
|
|
32 bits (4.3billion)
|
|
|
||||
|
Temperature range
|
|
-40℃-+85℃
|
|
|
||||
|
Control distance
|
|
Approx 100m(200 meters is customized)
|
|
|
||||
|
Size
|
|
210x152x128mm
|
|
|
||||
|
Weight
|
|
980g (without battery)
|
|
|
||||
|
F24-60 Receiver Parameters
|
|
|
|
|
||||
|
Material
|
|
Glass-Fiber PA
|
|
|
||||
|
Enclosure protection class
|
|
IP65
|
|
|
||||
|
Frequency range
|
|
VHF: 310-331MHz; UHF: 425-446MHz
|
|
|
||||
|
Receiver sensitivity
|
|
-110dBm
|
|
|
||||
|
Receiver power supply
|
|
18~65V AC/DC; 65~440V AC/DC (optional)
|
|
|
||||
|
Safety code
|
|
32 bits (4.3billion)
|
|
|
||||
|
Temperature range
|
|
-40℃-+85℃
|
|
|
||||
|
Output contactor capacity
|
|
8A sealed relay output (with AC 250V/10A relays, 10A fuse)
|
|
|
||||
|
Cable length
|
|
1.65m (Other length can be customized)
|
|
|
||||
|
Size
|
|
320x253x107mm
|
|
|
||||
|
Weight
|
|
2020g
|
|
|
||||
