- Product Details
- {{item.text}}
Quick Details
-
Brix Min. Div.:
-
0.2%
-
Measurement Range:
-
0-80%
-
Warranty:
-
1 year, 1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
can be customized
-
Model Number:
-
FND-80
-
Min. Div.:
-
0.2%
-
Brix Range:
-
0.2%
-

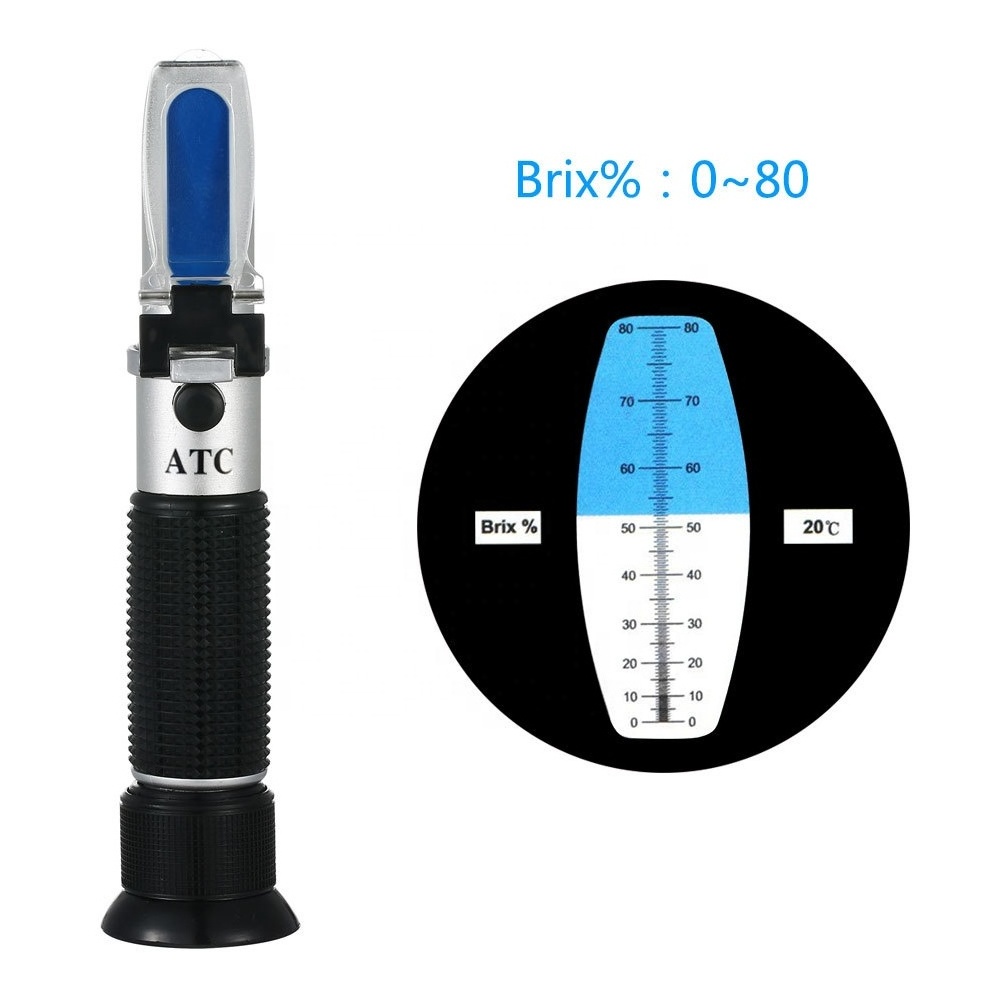

Product name:
-
brix meter optical instruments
-
Usage:
-
Test sugar in Fruit juice milk alcohol beverages fruit honey,
-
Material:
-
Aluminium
-
Brix Measurement Range:
-
0-80%
-
Accuracy:
-
1%
-
Feature:
-
ATC
-
Length:
-
16cm
-
Packing:
-
plastic box
Quick Details
-
Size:
-
25*9.5*5.5cm
-
Weight:
-
260g, 0.8kg
-
Measurement Accuracy:
-
1%
-
Brix Min. Div.:
-
0.2%
-
Measurement Range:
-
0-80%
-
Warranty:
-
1 year, 1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
can be customized
-
Model Number:
-
FND-80
-
Min. Div.:
-
0.2%
-
Brix Range:
-
0.2%
-
Product name:
-
brix meter optical instruments
-
Usage:
-
Test sugar in Fruit juice milk alcohol beverages fruit honey,
-
Material:
-
Aluminium
-
Brix Measurement Range:
-
0-80%
-
Accuracy:
-
1%
-
Feature:
-
ATC
-
Length:
-
16cm
-
Packing:
-
plastic box
Product Description
Specification
Instructions:
ATC accuracy: Hand held brewing refractometer with automatic temperature Compensation (ATC), the brix refractometer will account
for changes in ambient temperature and automatically compensate accordingly to provide accurate and repeatable measurements on an
easy to read scale.
Dual scale - Bix 0~32% specific gravity 0.2% .Measurement range of Salinity 0~28%, specific gravity 0.2% .
1.ATC: Built-in automatic temperature compensation
2. Dual design: Rapidly and precisely display the Bix( 0~32%) ,specific gravity (0.2%) .Measurement range of Salinity (0~28%),
specific gravity (0.2%) at the same time, without switching units!
Easy to use:
Simply test a drop of your brew on the prism and hold the refractometer to the light, then look through the eyepiece to get the
reading, no need for clutter some tables!
Operation steps:
1. Open the cover with a soft cloth carefully wipe detection prism.
2. Test a few drops of the solution, placed on the detection prism, gently close the cover ,to avoid air bubbles, spreading the
solution across the surface of the prism.
3. Align the light source and observe through the eyepiece, adjusting with the wheel.
4. Make a clear dividing line between blue and white marks. Scale value is the concentration of the solution of the boundary.
ATC accuracy: Hand held brewing refractometer with automatic temperature Compensation (ATC), the brix refractometer will account
for changes in ambient temperature and automatically compensate accordingly to provide accurate and repeatable measurements on an
easy to read scale.
Dual scale - Bix 0~32% specific gravity 0.2% .Measurement range of Salinity 0~28%, specific gravity 0.2% .
1.ATC: Built-in automatic temperature compensation
2. Dual design: Rapidly and precisely display the Bix( 0~32%) ,specific gravity (0.2%) .Measurement range of Salinity (0~28%),
specific gravity (0.2%) at the same time, without switching units!
Easy to use:
Simply test a drop of your brew on the prism and hold the refractometer to the light, then look through the eyepiece to get the
reading, no need for clutter some tables!
Operation steps:
1. Open the cover with a soft cloth carefully wipe detection prism.
2. Test a few drops of the solution, placed on the detection prism, gently close the cover ,to avoid air bubbles, spreading the
solution across the surface of the prism.
3. Align the light source and observe through the eyepiece, adjusting with the wheel.
4. Make a clear dividing line between blue and white marks. Scale value is the concentration of the solution of the boundary.
|
Used
|
Test sugar
|
|
Brix Measurement Range
|
0-10%
|
|
Accuracy
|
0.2%
|
|
Feature
|
ATC
|
|
Weight
|
about 0.4kg
|
|
Packing
|
plastic box
|
Packing & Delivery
Calibration Method:(Details please check below photos)
Accurate measurement depends on careful calibration.To calibrate the refractometer accurately.First you should make sure the
ambient temperature is
about 68F,I recommend you do the calibration in an air conditioned room in which the temperature is set on 68F.
Distilled water to calibrate
Open the cover plate,place 2-3 drops of distilled water on the prism,then close the cover plate and make sure the water spreads
across the prism
without air bubbles or dry spots.Waiting for about 30 seconds to let the reading to stabilize,look into the eyepiece and turn the
calibration screw with the
screw driver until the reading is “0”.
Accurate measurement depends on careful calibration.To calibrate the refractometer accurately.First you should make sure the
ambient temperature is
about 68F,I recommend you do the calibration in an air conditioned room in which the temperature is set on 68F.
Distilled water to calibrate
Open the cover plate,place 2-3 drops of distilled water on the prism,then close the cover plate and make sure the water spreads
across the prism
without air bubbles or dry spots.Waiting for about 30 seconds to let the reading to stabilize,look into the eyepiece and turn the
calibration screw with the
screw driver until the reading is “0”.
Company Profie
FAQ
1.How can we get a samples for test?
Re:Usuallt we will send you free samples,however,freight collect,you can through our website or catalog choose the interesting
samples
2.Can we doing OEM/ODM service
Re: yes,we can doing OEM servise,printing your logo on products and cartons,if you have item drawings we can customized the
products for you.
3.Are you manufacturer or trading company?
Re: we are manufacturer,located in cixi,ningbo,china,have more than 15 years production experience,and we welcome you can come to
visit our factory.
4.What is your terms of delivery?
Re: FOB,CIF,CFR.
5.What about payment terms?
Re:small amount by T/T 100%,usually 30% in advance,the balamce before shipment.
6.What about the delivery time?
Re: For sample orders the delivery time within 7 days,usually 15-25 days
Re:Usuallt we will send you free samples,however,freight collect,you can through our website or catalog choose the interesting
samples
2.Can we doing OEM/ODM service
Re: yes,we can doing OEM servise,printing your logo on products and cartons,if you have item drawings we can customized the
products for you.
3.Are you manufacturer or trading company?
Re: we are manufacturer,located in cixi,ningbo,china,have more than 15 years production experience,and we welcome you can come to
visit our factory.
4.What is your terms of delivery?
Re: FOB,CIF,CFR.
5.What about payment terms?
Re:small amount by T/T 100%,usually 30% in advance,the balamce before shipment.
6.What about the delivery time?
Re: For sample orders the delivery time within 7 days,usually 15-25 days
