Quick Details
-
Color Temperature(CCT):
-
3000~6000K, Warm/Pure/Cool white
-
Product Weight（kg）:
-
0.8
-
Input Voltage(V):
-
100-277V
-
CRI (Ra>):
-
82
-
Working Temperature(℃):
-
-25 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lonyung
-
Model Number:
-
LY-T5SL900-25W
-
Item Type:
-
Tube Lights
-
Name:
-
led integrated tube, t5 led tube
-
Optional power:
-
9w-60w
-
Power Factor:
-
>0.95
-
Frequency:
-
50-60Hz
-
Material:
-
AL + PC cover
-
Fuction:
-
dimmable/sensor/om-off switch are optional
-
LED Light Source:
-
SMD2835
-
Certification:
-
ETL/DLC/TUV/CE/SAA
Quick Details
-
Warranty(Years):
-
3
-
Lamp Luminous Efficiency(lm/w):
-
120
-
Lamp Body Material:
-
Aluminum
-
Color Temperature(CCT):
-
3000~6000K, Warm/Pure/Cool white
-
Product Weight（kg）:
-
0.8
-
Input Voltage(V):
-
100-277V
-
CRI (Ra>):
-
82
-
Working Temperature(℃):
-
-25 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lonyung
-
Model Number:
-
LY-T5SL900-25W
-
Item Type:
-
Tube Lights
-
Name:
-
led integrated tube, t5 led tube
-
Optional power:
-
9w-60w
-
Power Factor:
-
>0.95
-
Frequency:
-
50-60Hz
-
Material:
-
AL + PC cover
-
Fuction:
-
dimmable/sensor/om-off switch are optional
-
LED Light Source:
-
SMD2835
-
Certification:
-
ETL/DLC/TUV/CE/SAA
Product Paramenters
|

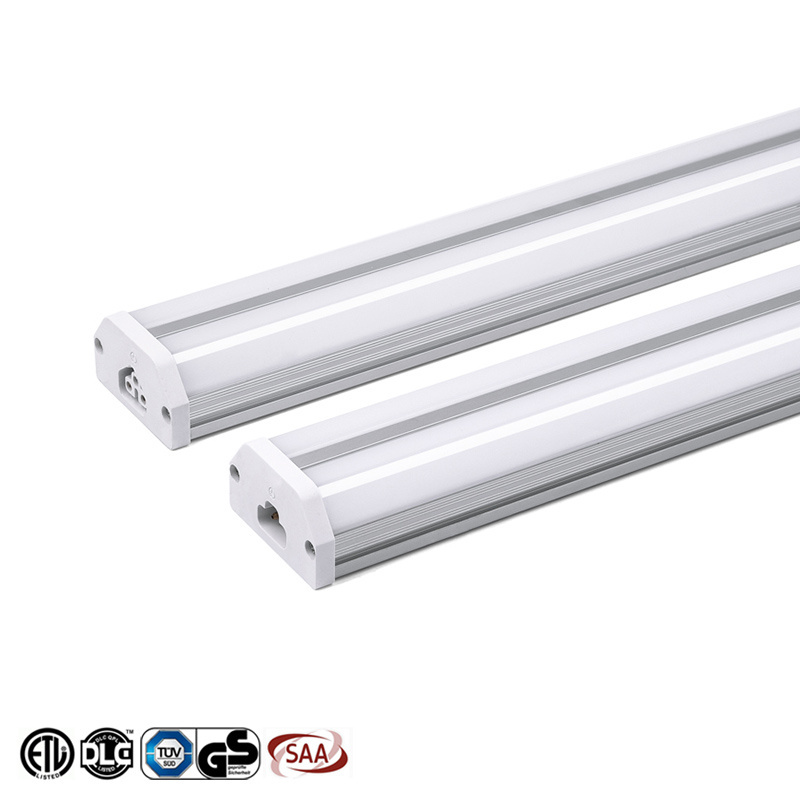

New V Shape Dual Aluminum PC 30W 36W 1200MM 4FT 8Feet Shop Double Row Linear Batten Light Fitting T5 Led Tube Light Fixture
|
|
|
|
|
|
|
|
|||||||
|
Item No
|
Length
(mm/ft)
|
Power
|
PC
Cover
|
Color
Temperature
|
Efficiency
|
Luminous
Flux
|
CRI
|
|||||||
|
LY-T5SL600-15W
|
600mm/2ft
|
15W
|
Frosted/Clear
|
2700-6500K
|
120 + LPW
|
1800lm
|
≥80
|
|||||||
|
LY-T5SL900-25W
|
900mm/3ft
|
25W
|
Frosted/Clear
|
2700-6500K
|
120 + LPW
|
3000lm
|
≥80
|
|||||||
|
LY-T5SL1200-30W
|
1200mm/4ft
|
30W
|
Frosted/Clear
|
2700-6500K
|
120 + LPW
|
3600lm
|
≥80
|
|||||||
|
LY-T5SL1500-40W
|
1500mm/5ft
|
40W
|
Frosted/Clear
|
2700-6500K
|
120 + LPW
|
4800lm
|
≥80
|
|||||||
|
LY-T5SL1800-44W
|
1800mm/6ft
|
44W
|
Frosted/Clear
|
2700-6500K
|
120 + LPW
|
5280lm
|
≥80
|
|||||||
|
LY-T5SL2400-60W
|
2400mm/8ft
|
60W
|
Frosted/Clear
|
2700-6500K
|
120 + LPW
|
7200lm
|
≥80
|
|||||||
|
·
Certification :
ETL & DLC & TUV & SAA
· Product Feature :
1、Pgraded Design End Cap, Seamless Connection, Shadowless Lighting.
2、Isolated Led Dirver, Constant Current Power Supply With Ic Chip Controlling Pcb. Keep The Voltage More Stable.
3、Energy Saving Up To 80% High Intensity, Inner Power Efficiency More Than 87%.
4、No Rf Interference, No Flickering Or Buzzing.
5、Solid State, High Shock/Vibration Resistant.
|
|
|
|
|
|
|
|
|||||||
Products Description
1、One-piece Aluminum chassis
2、Patent Male-female linkable design
3、Seamless & No Dark in-line connection
4、UL ETL TUV SAA approved, DLC Listed
5、0.8mm aluminum housing for excellent heat dissipation
6、Universal mounting standard. Come with integral hanging loops and with standard surface mounting application
7、Fuctions: Normal / Triac Dimmable/sensor can be optional
8、Connection Way: Lead in wire / M-F Connection / Power cord with Plug
9、Installation Type : Standard Clip / Magnetic Clip / Suspending Kits
10、Max Linkable: Less than 200W
