Quick Details
-
Brand Name:
-
primopal
-
Model Number:
-
PR-LAS828
-
Torque:
-
Requests
-
Protection Class:
-
IP66
-
Stroke:
-
1200mm
-
Noise:
-
≤56dB
-
Control method:
-
Electric control
-
Position Feedback:
-
Hall Sensor / Potentiometer
-
Max. load:
-
45KN high thrust
-
Rated Voltage:
-
24 VDC
-
Limit Switch:
-
Built-in Limit Switch
-
Speed:
-
1.4mm/s\2mm/s\3mm/s or Requests
Quick Details
-
Speed(RPM):
-
Requests
-
Efficiency:
-
IE 1
-
Place of Origin:
-
shanghai,china
-
Brand Name:
-
primopal
-
Model Number:
-
PR-LAS828
-
Torque:
-
Requests
-
Protection Class:
-
IP66
-
Stroke:
-
1200mm
-
Noise:
-
≤56dB
-
Control method:
-
Electric control
-
Position Feedback:
-
Hall Sensor / Potentiometer
-
Max. load:
-
45KN high thrust
-
Rated Voltage:
-
24 VDC
-
Limit Switch:
-
Built-in Limit Switch
-
Speed:
-
1.4mm/s\2mm/s\3mm/s or Requests
Product Paramenters
| 24v DC permanent magnet motor |
| Load: 10kn (10000 cycles) - 15kn (2000 cycles) |
| Static load: 45kn |
| Dynamic wind stress 15kn,push and pull 80,000 times |
| Speed: 1.4mm/s, 2.0mm/s, 3mm/s. |
| Stroke length: up to 1200mm. |
| Equipped with high-strength aluminum housing for use in harsh environments and high-efficiency trapezoidal screw. |
| Protection grade: IP66 for outdoor use, integrated brake, high self-locking capacity. |
| Usually the axial distance from the outer tube to the hole center of the fisheye joint is 0.25-0.5mm, the maximum axial clearance after 10 years +0.4mm, non-rotating fisheye joint, can be embedded in electronic products and achieve signal feedback, such as Hall pulse. |
| Noise level: 56 dB, measurement method: DS/EN ISO8746. |
| 25 years design life. |
| Options: embedded limit switches, Hall reaction sensors with A-B signals. |
| External magnetic limit switch with interchangeable cables of different lengths. |
| Operating instructions: Operating frequency at maximum load: 12% Temperature: -30-70 degrees C. Operating temperature range -30-70 degrees C at full load 15kn. |

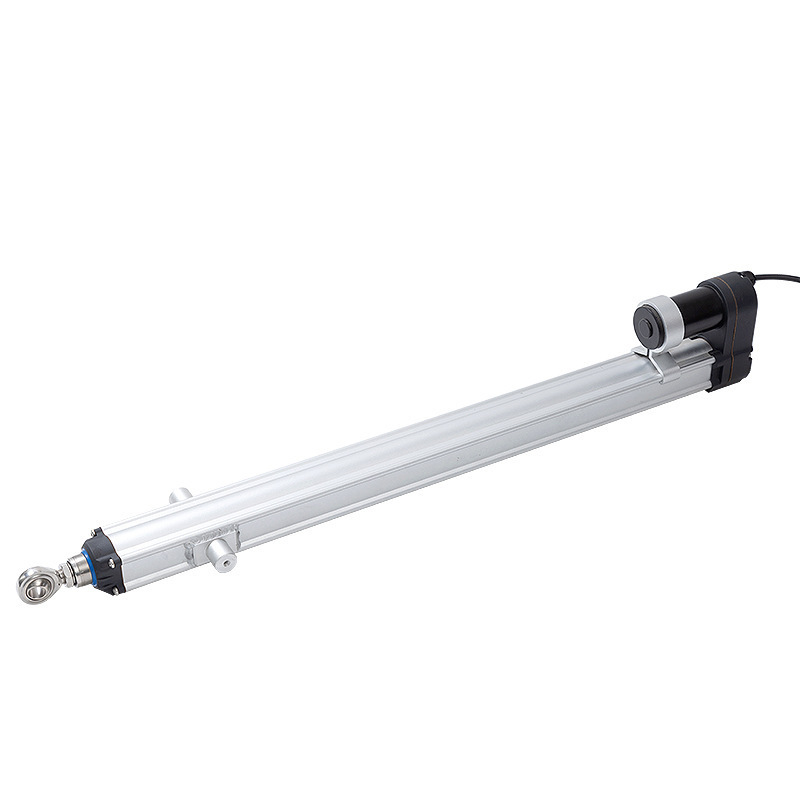

Product Show
