Quick Details
-
Model Number:
-
ZF120A-1200500
-
Output Frequency:
-
47Hz~63Hz
-
Efficiency:
-
80% Min
-
Working hours:
-
50000 hrs
-
Size:
-
76*38*23mm
-
IP Rank:
-
IP20
-
Protections:
-
short circuit, overload, over voltage, over temperature
-
Material:
-
ABS+PC
-
Warranty:
-
3 years
-
Application:
-
LED Lighting, Celling Light etc
-
Packing:
-
White Box + Carton
-
Product Name:
-
12V 500mA LED Driver
Quick Details
-
Warranty(Year):
-
3-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZH
-
Model Number:
-
ZF120A-1200500
-
Output Frequency:
-
47Hz~63Hz
-
Efficiency:
-
80% Min
-
Working hours:
-
50000 hrs
-
Size:
-
76*38*23mm
-
IP Rank:
-
IP20
-
Protections:
-
short circuit, overload, over voltage, over temperature
-
Material:
-
ABS+PC
-
Warranty:
-
3 years
-
Application:
-
LED Lighting, Celling Light etc
-
Packing:
-
White Box + Carton
-
Product Name:
-
12V 500mA LED Driver

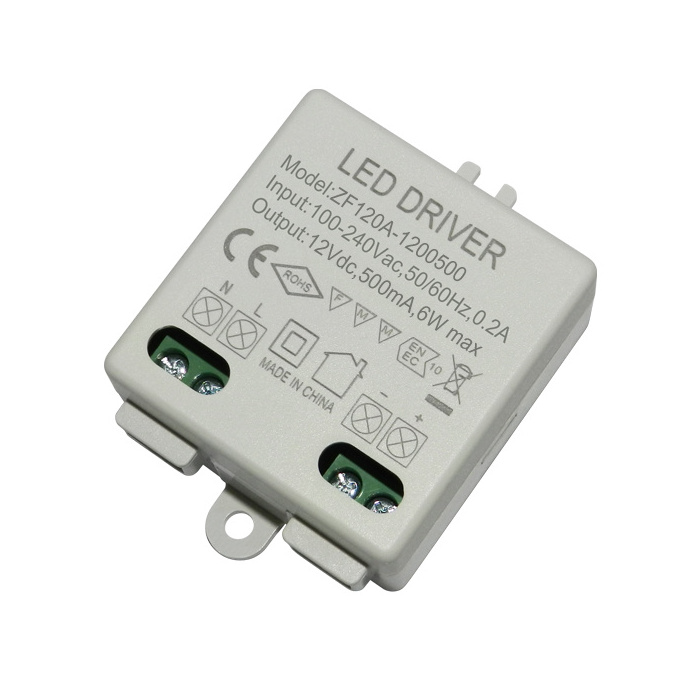

Constant Voltage IP20 6W 12V 0.5A Power Supply 12V 500mA LED Driver with CE TUV UL CUL Certificate
Product Description
| Model NO. | ZF120A-1200500 |
| Input: | 100-240VAC 50/60Hz |
| Output: | 12V DC 0.5A 6W |
| Output type: | Single Output |
| Mode: | Constant Voltage |
| Size: | 42*40*22mm |
| Warranty: | 3 years |
| Protection: | OVP/OCP/SCP |
| Leakage Current: | 0.5mA Max @230VAC Input |
| Ripple&Noise: | <120mV |
| Working temperature and humidity: | -10℃~+60℃, 20%~90%RH |
| Storage temperature and humidity: | -20℃~+85℃, 10%~85%RH |
