Quick Details
-
Voltage:
-
380v
-
Power:
-
4KW
-
Dimension(L*W*H):
-
1100 * 2300 mm (diameter * height )
-
Weight:
-
700
-
Name:
-
500L Jacketed heating Stirred Chemical Reactor
-
Application:
-
Alkyd resin, Epoxy resin, Phenolic resin
-
Motor power:
-
4KW
-
Work capacity:
-
500L
-
Rotate speed:
-
0 - 63 rpm controllable
-
Shaft seal:
-
mechanical seal
-
Heating:
-
electric heater heating
-
Material:
-
stainless steel as contact part; carbon steel for non-contact part
-
Discharge way:
-
bottom ball valve discharge & 2.5 '' opening
-
Dimension:
-
1100 * 2300 mm (diameter * height )
Quick Details
-
Capacity:
-
500L
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YUANYANG
-
Voltage:
-
380v
-
Power:
-
4KW
-
Dimension(L*W*H):
-
1100 * 2300 mm (diameter * height )
-
Weight:
-
700
-
Name:
-
500L Jacketed heating Stirred Chemical Reactor
-
Application:
-
Alkyd resin, Epoxy resin, Phenolic resin
-
Motor power:
-
4KW
-
Work capacity:
-
500L
-
Rotate speed:
-
0 - 63 rpm controllable
-
Shaft seal:
-
mechanical seal
-
Heating:
-
electric heater heating
-
Material:
-
stainless steel as contact part; carbon steel for non-contact part
-
Discharge way:
-
bottom ball valve discharge & 2.5 '' opening
-
Dimension:
-
1100 * 2300 mm (diameter * height )

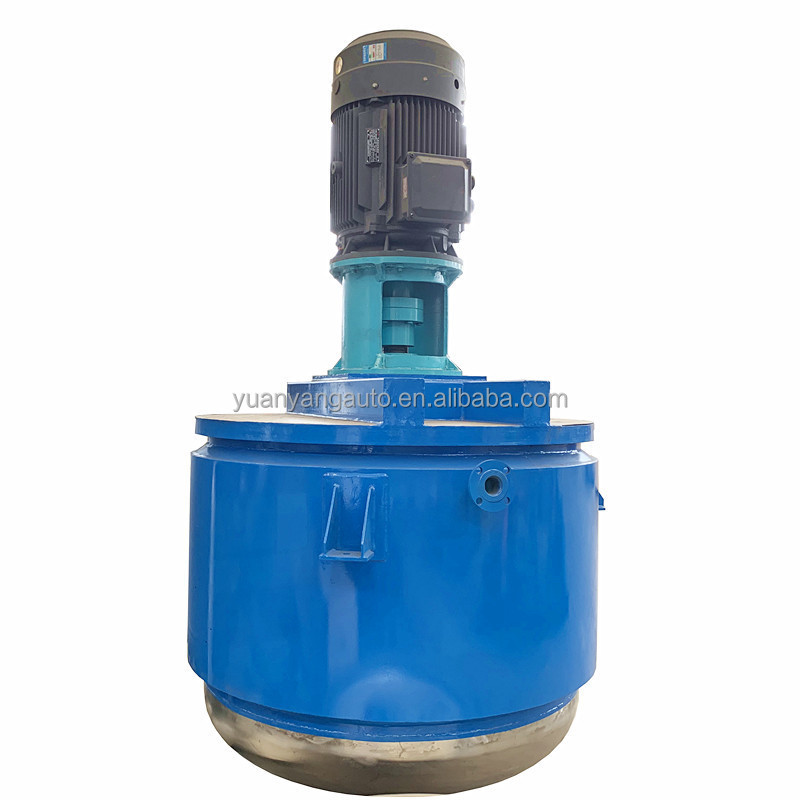

500L electric heating Jacketed Stirred Tank Chemical Reactor
Product Description
This is a Physical or chemical reaction vessels, has heating, evaporation, cooling and high/low speed mixing functions.
Structure Composition:
Mainly consists of the Driving part (including motor, gear reducer), reactor body, tank cover (top and bottom cover), heating jacket/coil, agitator etc.
Chemical Industry : Liquid resin, Polymer liquid, Dyestuff, Pesticide, White latex, Universal glue, Paint, Organic solvent, Chemical additives etc.
Daily Chemical Industry : Shampoo, Body wash, Facial cleanser, Sunscreen, Liquid laundry detergent. Disinfecting hand sanitizer, Sunscreen etc.
Pharmaceutical Industry : Oral liquid, Ointment, Emulsion, Vaseline, disinfectant hand sanitizer etc.
Food and Beverage Industry : Reconciling oil, Seasoning sauce, Fruit juice, Alcohol, Dairy products.
PRODUCT SPECIFICATIONS
|
Working volume
|
1000L
|
|
Motor
|
5.5KW, equipped with Gear reducer & Inverter
|
|
Material
|
Mixing chamber: SUS304 & 6 mm steel plate
Heating jacket: carbon steel & 6 mm steel plate
|
|
Heating
|
circulating oil heating
|
|
Rotate speed
|
0-63 RPM controllable
|
|
Shaft seal
|
mechanical seal
|
|
Discharge valve
|
2.5' opening
|
|
Dimension
|
1300 * 2800 mm (diameter * height )
|
DETAILED PHOTOS
Top & Bottom Head:
SIMILAR PRODUCTS
PACKING & SHIPPING
It can be packed in a standard plywood case or loading in a 20GP full container, for transportation by sea, or by train optional.
