Quick Details
-
Weight (KG):
-
600
-
Voltage:
-
220V 50hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
taichuan packing machine
-
Dimension(L*W*H):
-
L736*W1269*H2376 mm
-
Product name:
-
Automatic Vertical Packing Machine
-
Usage:
-
Soft Pouch Packing
-
Main Function:
-
Weighing Forming Filling Sealing
-
Keyword:
-
Automatic Snack Food Sugar Packing
-
Bag type:
-
3/4 Sides Seal/Back Seal
-
Machine type:
-
Vertical Automatic Packing Machine
-
Packing speed:
-
10-70 Bags/min
-
Film material:
-
Laminatied Film
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ce certification
Quick Details
-
Function:
-
FILLING, Laminating, Sealing, SLITTING
-
Packaging Type:
-
Cartons, Bags, Film, Pouch
-
Packaging Material:
-
Plastic, Paper, Wood
-
Weight (KG):
-
600
-
Voltage:
-
220V 50hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
taichuan packing machine
-
Dimension(L*W*H):
-
L736*W1269*H2376 mm
-
Product name:
-
Automatic Vertical Packing Machine
-
Usage:
-
Soft Pouch Packing
-
Main Function:
-
Weighing Forming Filling Sealing
-
Keyword:
-
Automatic Snack Food Sugar Packing
-
Bag type:
-
3/4 Sides Seal/Back Seal
-
Machine type:
-
Vertical Automatic Packing Machine
-
Packing speed:
-
10-70 Bags/min
-
Film material:
-
Laminatied Film
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ce certification

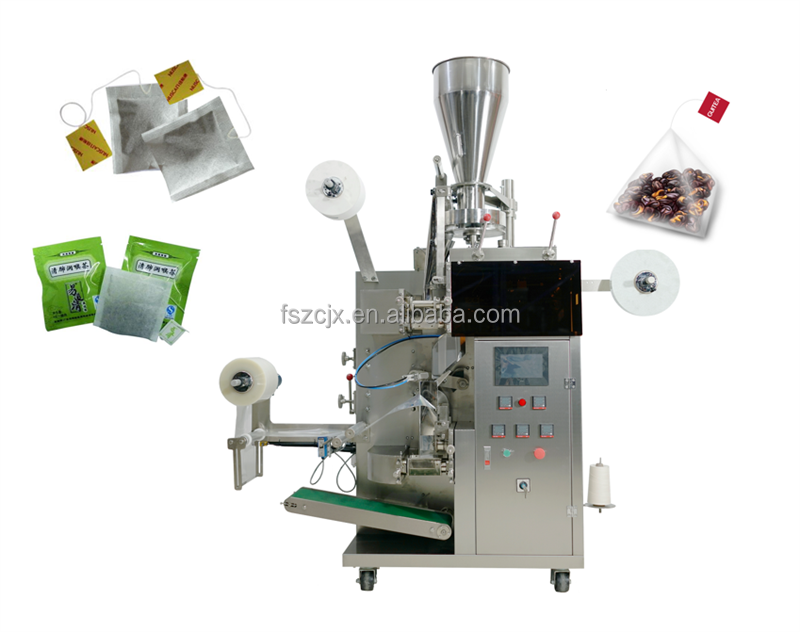

Product Description
Features
1. The outer sealing paper is controlled by stepping motor, the bag length is stable and the positioning is accurate;
2. Adopt PID temperature controller to control the temperature more accurately;
3. PLC is used to control the movement of the whole machine, man-machine interface display, easy to operate;
4. All accessible materials are made of SUS304 stainless steel to ensure the hygiene and reliability of products;
5. Some working cylinders adopt original imported parts to ensure the accuracy and stability of their work;
6. The additional device of this machine can complete the functions of flat cutting, date printing, easy tearing etc.
7. Ultrasonic and thermal sealing form can achieve linear incision, save the filling space inside the mounting ear, and reach 12g packaging capacity;
8. Ultrasonic sealing is suitable for all non-woven packaging materials cutting, success rate is close to 100%;
9. The equipment can be equipped with nitrogen filling device, date printing device and stirring device, etc.
2. Adopt PID temperature controller to control the temperature more accurately;
3. PLC is used to control the movement of the whole machine, man-machine interface display, easy to operate;
4. All accessible materials are made of SUS304 stainless steel to ensure the hygiene and reliability of products;
5. Some working cylinders adopt original imported parts to ensure the accuracy and stability of their work;
6. The additional device of this machine can complete the functions of flat cutting, date printing, easy tearing etc.
7. Ultrasonic and thermal sealing form can achieve linear incision, save the filling space inside the mounting ear, and reach 12g packaging capacity;
8. Ultrasonic sealing is suitable for all non-woven packaging materials cutting, success rate is close to 100%;
9. The equipment can be equipped with nitrogen filling device, date printing device and stirring device, etc.

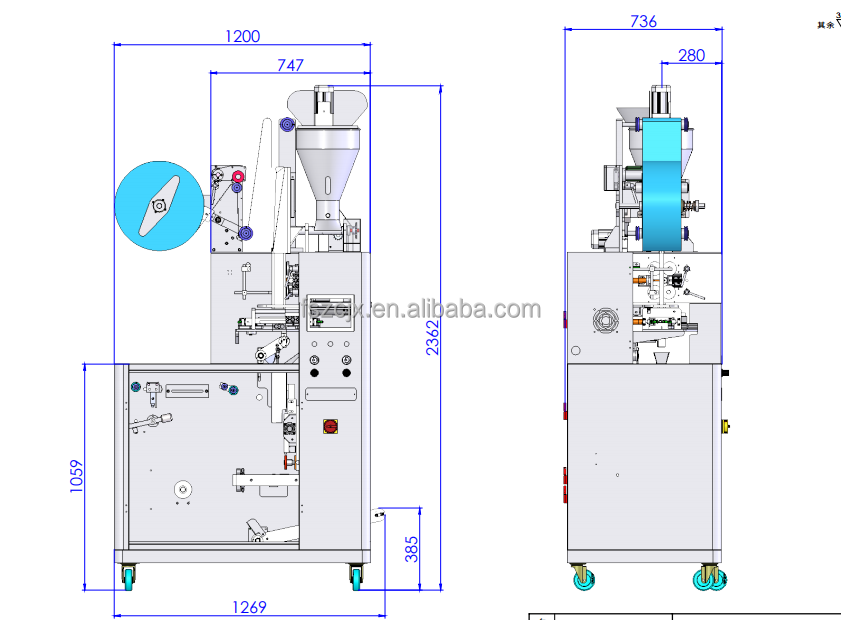

Dimensional stereogram drawing
Materials&Bags
It is suitable for single-use packing of small particles such as coffee, tea, medicinal tea, health tea and plants in inner and outer bags.
Specification
|
Model
|
TCLB-160S
|
|
Sealing Method
|
Ultrasonic sealing
Heat sealing
|
|
Sealing Type of Inner Bag
|
Three sides sealing
|
|
Sealing Type of Envelope
|
Three sides sealing
|
|
Measuring
|
5-12 g/bag (At customer’s option)
|
|
Capacity
|
30-50 bags/min
|
|
Size of Inner Bag
|
L50—75㎜；W50—75㎜ (At customer’s option)
|
|
Size of Envelope
|
L85—120㎜；W75—95㎜(At customer’s option)
|
|
Input Voltage
|
Single phrase 220V/50HZ
|
|
Total Power
|
3.7kw
|
|
Dimension
|
1050X700X1300MM
|
|
Weight
|
650KG
|
|
Recommended Size of Inner Bag
|
74*90mm
|
|
Recommended Size of Envelope
|
100*120mm
|
Details Images
Related productions
Automatic pillow plastic bag protein bar packing machine horizontal flowing energy bar/ chocolate bar packing machine
Company Introduction
Certifications
Packing&Shipping
FAQ
1) Which machine suitable for me? How can I chose?
All our machine is customized for a big factory or a small business.
1. To figure out the product you will pack
2. The dimension of the product or the dimension of the packing bag Length, width and height? Weight per bag?
3. Bag type If you are not sure, we can help you to fine a perfect bags and provide you a project for you to choose.
All our machine is customized for a big factory or a small business.
1. To figure out the product you will pack
2. The dimension of the product or the dimension of the packing bag Length, width and height? Weight per bag?
3. Bag type If you are not sure, we can help you to fine a perfect bags and provide you a project for you to choose.
2) It's the machine durable or ensure long-time use?
1. We have spare part production department most of our spare part is producing by our factory and our engineers master every part will good to the running of the machine.
2. Well maintain is not to be ignored
3) How long the delivery date?
The small machine is 15-20 days and the large machine will be 20-45 days.
4) How about the After-sale service?
We have professional after-sale technical team, we can make you a video to show you how to fix and installation.
1. We have spare part production department most of our spare part is producing by our factory and our engineers master every part will good to the running of the machine.
2. Well maintain is not to be ignored
3) How long the delivery date?
The small machine is 15-20 days and the large machine will be 20-45 days.
4) How about the After-sale service?
We have professional after-sale technical team, we can make you a video to show you how to fix and installation.
