Quick Details
-
type:
-
LV-1600A
-
width:
-
1600mm
-
slitting speed:
-
200m/min
-
min. cutting width:
-
40mm
-
max. cutting diameter:
-
650mm
-
max. unwinding diameter:
-
1200mm
-
Certification:
-
ISO/CE Certificate
Quick Details
-
Type:
-
Paper Cutting Machine
-
Place of Origin:
-
Hebei, China
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
type:
-
LV-1600A
-
width:
-
1600mm
-
slitting speed:
-
200m/min
-
min. cutting width:
-
40mm
-
max. cutting diameter:
-
650mm
-
max. unwinding diameter:
-
1200mm
-
Certification:
-
ISO/CE Certificate

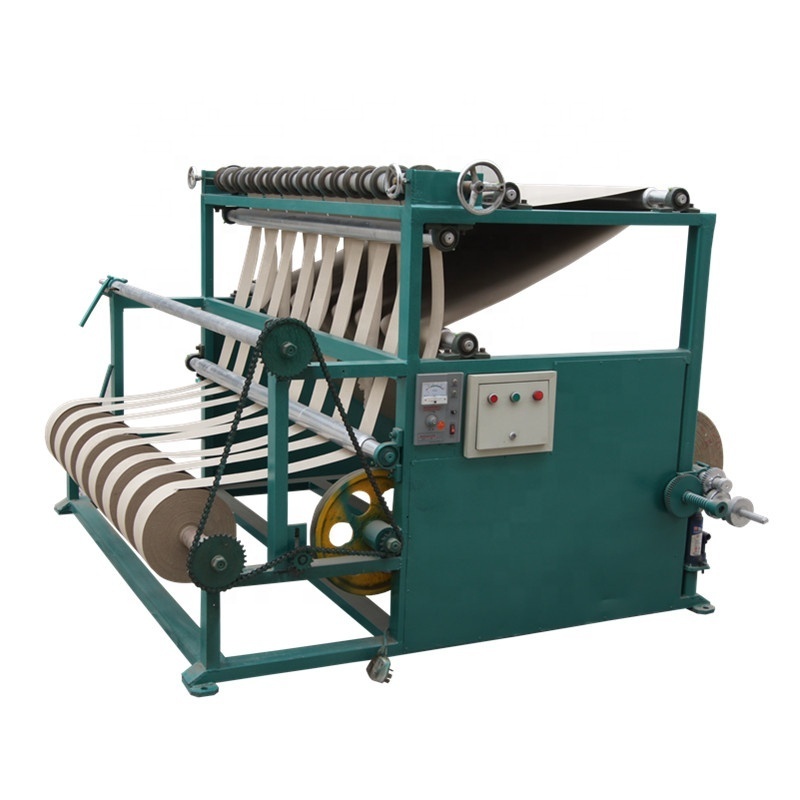

Kraft Paper Rolls Slitting Machine
Usage:
Apply to slitting and rewinding raw paper.
Specification:
Dividing &cutting speed: 200m/min
Quantity of operators: 1-2
Dividing & cutting capacity: 60-600g/m2
Main machine power: 1.5kw
Min. dividing & cutting width: 40mm
Max. dividing & cutting diameter: 650mm
Original paper max. width: 1600mm
Cutters quantity: 25 pairs
Original paper max. diameter: 1200mm
Main machine spec. (mm): 2200*2200*1600
Paper feeding method: Lifting jack
Speed regulation: Electromagnetic Speed regulation
Paper reeling method: Pneumatic expansion internal retraction
Power supply: Four
Features:
Double-blade cutting, upper-dish type cutting disc, Inferior fovea cutter
The upper and lower blades can be adjusted within 20-1600mm for random width
Both edges of paper strip after cutting
is smooth and clean cut without any burrs
All operations are integrated on the control panel of
convenient operation
Paper roll is coiled firmly with clean-cut
edges
High production capacity, output of each machine
can supply pare for three paper tube reeling machines simultaneously.
Steel plate structure of the complete machine, favorable appearance
Controlled by double magnetic-particle brake with
Uniform tension force
Low noise, stable operation
Photos:
Packaging & Shipping:
Our Factory:
Our Certificate:
Our Customers:
For more details, please directly contact me at any time.
