Quick Details
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting, Roof Mounting
-
Certificate:
-
ce
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TANFON SOLAR
-
Model Number:
-
SPB10KW
-
Output Voltage (V):
-
110V or 220V
-
Work Time (h):
-
depend to the grid electricity
-
System Application:
-
On grid residential solar system
-
Solar panel:
-
Monocrystalline Solar Panel 200W-360W
-
Inverter power:
-
10KW grid tie inverter
-
Working time:
-
according to city power
-
Solar panel rack:
-
Ground and Roof Mounting Rack Optional
-
Delivery time:
-
10-15 days
-
Function:
-
can sell excess electricity to the public grid
-
warranty:
-
solar panel 10 years, Inverter 5 years
-
service:
-
ship the free materials
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting, Roof Mounting
-
Certificate:
-
ce
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TANFON SOLAR
-
Model Number:
-
SPB10KW
-
Output Voltage (V):
-
110V or 220V
-
Work Time (h):
-
depend to the grid electricity
-
System Application:
-
On grid residential solar system
-
Solar panel:
-
Monocrystalline Solar Panel 200W-360W
-
Inverter power:
-
10KW grid tie inverter
-
Working time:
-
according to city power
-
Solar panel rack:
-
Ground and Roof Mounting Rack Optional
-
Delivery time:
-
10-15 days
-
Function:
-
can sell excess electricity to the public grid
-
warranty:
-
solar panel 10 years, Inverter 5 years
-
service:
-
ship the free materials
Professional PV company design complete set supply easy install on grid 10kw three phase solar power system
Solar Power System Grid-tie Complete Kit Connection Diagram
| Product Description |
How the on grid solar system working:
The grid-connected solar photovoltaic power generation system is composed of photovoltaic grid array grid-tie inverters. Without the storage of the battery, the on grid inverter directly inputs the power into the public grid. The on grid solar power generation system saves the energy storage and release process of the battery compared with the off- grid solar photovoltaic power generation system, which reduces the energy consumption, saves space and reduces the configuration cost.
What's the difference between off grid and on grid solar power system?
Off-grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.
On-grid solar power system connects to the power grid, can sell excess electricity to the public grid. In general, it includes solar panels, grid-tie inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.
| Product Details |
TANFON On grid solar power supply system- SPB-10KW
|
|
Solar Panel FS350W mono solar panel(poly optional ) Vmp: 38.39V Voc: 47.13V Imp: 9.25 A Size: 1956*992*40mm Coated steel Glass: 3.2mm Tempered Terminal block: IP65 with MC4 connector Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time (CE RoHS) Quantity: 30 pieces |
|
Solar Panel Rack Slope Roof or Flat roof or Ground (option) including complete fittings wind load: 55m/s, snow load:1.5kn/m2 structure: Anodized Aluminum + stainless steel Quantity: 1 set |
|
|
|
Solar Inverter Power capacity: HBF10KW MPPT voltage: 160V-960V Rate voltage: 600V Number of MPP inputs: 2 Number of DC inputs: 2 Allowed Voltage Range Of Grid: 380-415V Communication interface: RS485 Inverter size:483*452*200mm Quantity: 1 piece |
|
Cables 4mm 2 PV cable *100M 10mm 2 inverter cable *50M (4mm 2 PV cable each string connect to PV combiner) Quantity: 1 set |
|
If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.
Please contact to us to discuss more details, we can support to you all you need with your requirement.

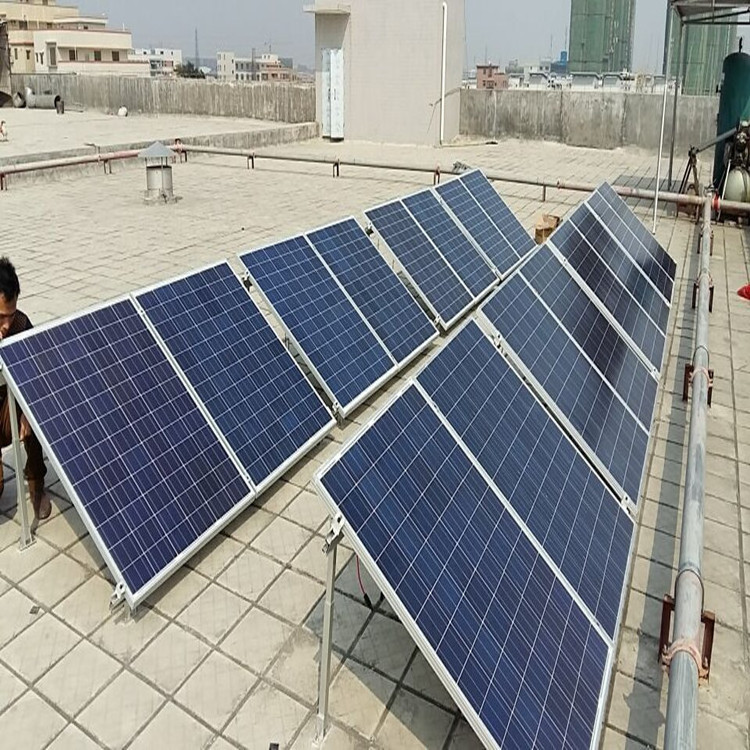

| Solar Power System Projects |
Why Choose Tanfon?
Quality:
-
Each set solar power system has tested by power-off test of 100 times per hour.
Service:
-
Pre- sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.
-
Selling: Three days per time of follow-up services, video inspection .
-
After sales: Engineer can be on-site installation service .
Efficiency:
-
Project design solution will send to you quickly within 1 hour
-
The fastest will be shipped in 7 days
-
The engineer will arrive at the installation site within 10 days after the goods arrived at port.
| Tanfon Customers' Feedback |
| Tanfon Factory Pictures |
| Solar Products FAQ |
|
Q: What can be included for this system from TANFON? A:This system includes: solar panels, PV array combiner, Solar inverter, solar panel rack, cables.,etc. |
|
Q: Is the system solution always the same? Can I customize one? A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 10kw system may be with different configuration. |
|
Q: Who arranges the shipping? A: We could help you arrange the shipment, we have good service forwarder in Guangzhou. |
|
Q: What is the lifetime of the solar power system? A: Solar panel’s lifetime are 25 years, charger controllers 5~ 7 years, inverters 20 years, batteries 6~8 years. |
|
Q: What can Tanfon supply? A: Tanfon Supply: Free site survey, design, production, installation, maintenance of one- stop service. |
