Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
HUB
-
Brand Name:
-
JINGHONG
-
Weight (KG):
-
30 KG
-
Core Components:
-
Laser tube
-
Laser type:
-
Hermetic CO2 glass tube
-
Support software:
-
CorelLASER/LaserDRW/CorelDRAW
-
Cutting depth:
-
0-5mm
-
Location precision:
-
0.01mm
-
Power supply:
-
AC220V/110V 50/60HZ
Quick Details
-
Engraving Area:
-
300mm*200mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-500mm/s(adjustable)
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
HUB
-
Brand Name:
-
JINGHONG
-
Weight (KG):
-
30 KG
-
Core Components:
-
Laser tube
-
Laser type:
-
Hermetic CO2 glass tube
-
Support software:
-
CorelLASER/LaserDRW/CorelDRAW
-
Cutting depth:
-
0-5mm
-
Location precision:
-
0.01mm
-
Power supply:
-
AC220V/110V 50/60HZ
Product Description

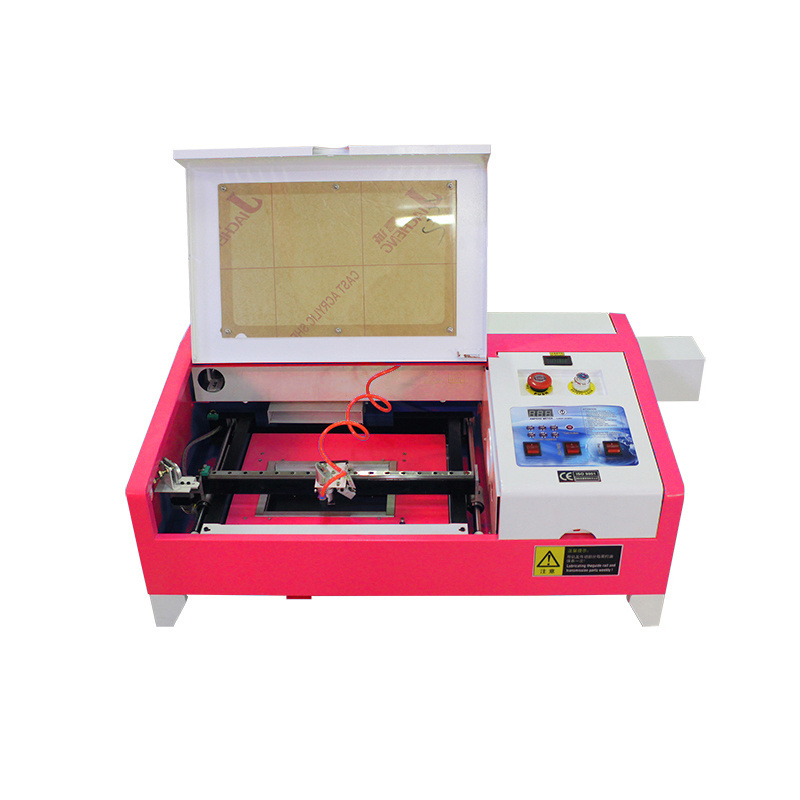

50W Laser Engraving Machine 3020 CO2 Engraver Cutter
Mini Desktop Stamp Co2 Laser Engraving Machine is designed mainly for engraving all kinds of nonmetal , it is portable in size, so you can put it on table, thus save your space.
It is suitable for the new business starter in stamps and art works industry.
Because of the clear pictures engraving, it sells well in our local market, and believe that you will find a ready market either.
Beasides, it can also engrave on many other materials, such as wood, leather, glass, etc. and even on some metals.
It is suitable for the new business starter in stamps and art works industry.
Because of the clear pictures engraving, it sells well in our local market, and believe that you will find a ready market either.
Beasides, it can also engrave on many other materials, such as wood, leather, glass, etc. and even on some metals.
1. Precision Plotter
Plotter adopts linear guide rail, high precision Fast speed and wear resistance.
2. Laser Head
High precision laser head has long service life. It is equipped with red light indication and easy to position. It is easy to cause fire break out while processing, so it is added a flame-retardant blowing device to stop burning.
3. The laser tube
High quality laser tube, high quality output power, small spot, strong penetration, high power, more stable output, good heat resistance, high temperature resistance.
4. Operating Panel
Push-button control makes the operation of the controller more convenient, which makes the current adjustment more precise.The operation is simple and easy and the desigh is more user-friendly.
5. High Quality Mirror Frame
Being made specially for machine, precise and durable thickened galvanized aluminum plate, antioxidant, durable and easy to adjust, precision hardware, long service life.
Samples
Specification
|
Laser type:
|
Hermetic CO2 glass tube
|
|
Laser power:
|
40W/50W
|
|
Support software:
|
CorelLASER/LaserDRW/CorelDRAW
|
|
Working area:
|
300*200mm
|
|
Working speed:
|
0-500mm/s (adjustable)
|
|
cutting depth:
|
0-5mm (According to material)
|
|
Location precision:
|
0.01mm
|
|
Power supply:
|
AC220V/110V 50/60HZ
|
|
Min Carving Character:
|
words2*2mm/number1*1mm
|
|
Work enviroment:
|
5-40℃ 5-95% (rh)
|
|
Cooling way：
|
Water cooling
|
