- Product Details
- {{item.text}}
Quick Details
-
Type:
-
managed poe switch
-
Material:
-
Metal shell
-
Networking Port-1:
-
16*10/100/1000M POE
-
Uplink Port-2:
-
4x10/100/1000M SFP
-
Uplink Port-3:
-
4x10/100/1000M RJ45
-
Power Input:
-
AC 100~240VAC, 50/60Hz
-
Power (W):
-
250W
-
software:
-
support customized service
-
Warranty:
-
3 Years
-
PoE Protocol:
-
IEEE802.3af/at
Quick Details
-
Brand Name:
-
Thinkwind
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TW-M816GP-4G4SFP
-
Type:
-
managed poe switch
-
Material:
-
Metal shell
-
Networking Port-1:
-
16*10/100/1000M POE
-
Uplink Port-2:
-
4x10/100/1000M SFP
-
Uplink Port-3:
-
4x10/100/1000M RJ45
-
Power Input:
-
AC 100~240VAC, 50/60Hz
-
Power (W):
-
250W
-
software:
-
support customized service
-
Warranty:
-
3 Years
-
PoE Protocol:
-
IEEE802.3af/at

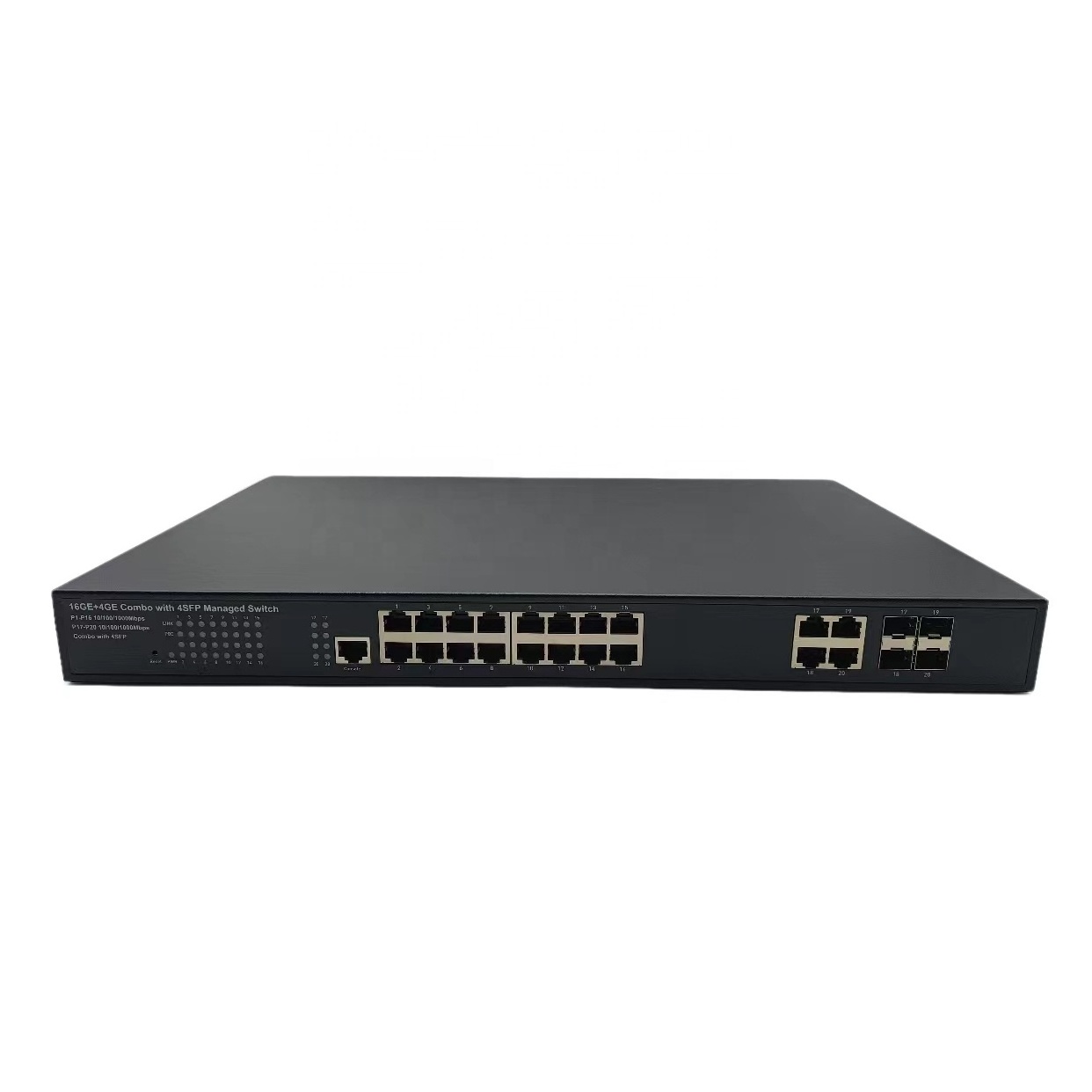

16 Ports Gigabit Managed PoE Switch with 4 x 10/100/1000Mbps RJ45 SFP Combo Switches
Model No.:TW-M816GP-4G4SFP
Product Physical Specification
| Physical Specification | Description | |
| Performance• SwitchingCapacity: 56Gbps• Throughput: 41.66Mpps • MACCapacity: 8K | ||
| Hardware• FlashMemory: 128MB • DRAM: 1GB | ||
| Interface | • 16-Port 10/100/1000M Base-T | •4-Port 1G Base-R(SFP) combo with 4 RJ45 |
| • 1-Port Console(With RJ-45) | ||
| Power | • Input:AC 100~240VAC, 50/60Hz | • Power Consumption: 30W |
| PoE | • Max PoE Power Budget: 250W | • Support 16-Ports 10/100/1000 802.3af/at Base-T, |
| • 15.4W simultaneously on 16 ports | 30W simultaneously on 8 ports | |
| Environmental | • OperatingTemperature: 0~40℃ | • Operating Humidity: 20~85%RH (Non-Condensing) |
| • StorageTemperature: -20~70℃ | • Storage Humidity: 5~95%RH (Non-Condensing) | |
| Mechanical • Dimension: 440(W) x 44(H) x260(D)mm • Weight:3.8kg | ||
| AirFlow • Fanless natural cooling | ||
Product Software Parameter
| Features | Description | |||
| Status | • System Information | • Link Aggregation | ||
| •Logging Message | • MAC Address Table | |||
| •Port | ||||
| Network | •DNS | |||
| •Hosts | ||||
| •System Time | ||||
| Port | • Port Setting | •EEE | •Protected Port | |
| • Error Disabled | •Jumbo Frame | •Storm Control | ||
| •Link Aggregation | •Port Security | |||
| POE Setting | • POE Port Setting | |||
| • POE Port Timer Setting | ||||
| VLAN | • VLAN | • ProtocolVLAN | • SurveillanceVLAN | |
| • Voice VLAN | • MAC VLAN | • GVRP | ||
| MAC Address Table | • Dynamic Address | • Filtering Address | ||
| • Static Address | • Port Security Address | |||
| Spanning Tree | • Property | • MST Instance | • Statistics | |
| • Port Setting | •MST Port Setting | |||
| ERPS | •Property | |||
| •ERSP Instance | ||||
| Lookback | •Lookback Config | |||
| Discovery LLDP | • Property | • Packet View | • Statistics | |
| • Port Setting | • Local Informantion | |||
| •MED Network Policy | • Neighbor | |||
| DHCP | • Property | • VLAN IF AddressGroup Setting | • Client Static Binding Table | |
| • IP Pool Setting | •Client List | |||
| Multicast | • General | • MLD Snooping | ||
| • IGMP Snooping | •MVR | |||
| Routing | • IPV4 Management and Interfaces | |||
| • IPV6 Management and Interfaces | ||||
| Security | • RADIUS | • Authentication Manager | • Dos | |
| • TACACS+ | • Port Security | • Dynamaic ARP Inspection | ||
| •AAA | • Protected Port | • DHCP Snooping | ||
| •Management Access | • Storm Control | • IP Source Guard | ||
| ACL | • MAC ACL | • IPV4 ACE | • ACL Binding | |
| • MAC ACE | • IPV6 ACL | |||
| •IPV4 ACL | • IPV6 ACE | |||
| Qos | • General | |||
| • Rate Limit | ||||
| Diagnostics | • Logging | • Traceroute | • UDLD | |
| • Mirroring | • Copper Test | |||
| •Ping | •Fiber Module | |||
| Management | • User Account | • Configuration | • RMON | |
| • Firmware | •SNMP | |||
Dimension
Software Interface
Application
Test Equipment
Shipping
