Quick Details
-
Brand Name:
-
DC
-
Model Number:
-
DC-600
-
Temperature:
-
-12 degrees C
-
Climate Type:
-
N-ST
-
Refrigerant:
-
R404a, R404a
-
Size:
-
1830mm*890mm*2030mm
-
Capacity to hold ice bags:
-
200 bags of ice (8 lbs./bag)
-
Insulation:
-
Polyurethane insulation thick 80mm
-
Steel finish:
-
Painted galvanized steel
-
Merchandiser Door:
-
Double solid slant doors
-
Door size:
-
27*27inch/door
-
Compressor:
-
Embraco
-
Refrigeration type:
-
Cold wall
-
40'HQ:
-
13 Pieces
-
Certification:
-
CE & Rohs
Quick Details
-
Style:
-
Single-Temperature
-
Capacity:
-
600L
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DC
-
Model Number:
-
DC-600
-
Temperature:
-
-12 degrees C
-
Climate Type:
-
N-ST
-
Refrigerant:
-
R404a, R404a
-
Size:
-
1830mm*890mm*2030mm
-
Capacity to hold ice bags:
-
200 bags of ice (8 lbs./bag)
-
Insulation:
-
Polyurethane insulation thick 80mm
-
Steel finish:
-
Painted galvanized steel
-
Merchandiser Door:
-
Double solid slant doors
-
Door size:
-
27*27inch/door
-
Compressor:
-
Embraco
-
Refrigeration type:
-
Cold wall
-
40'HQ:
-
13 Pieces
-
Certification:
-
CE & Rohs

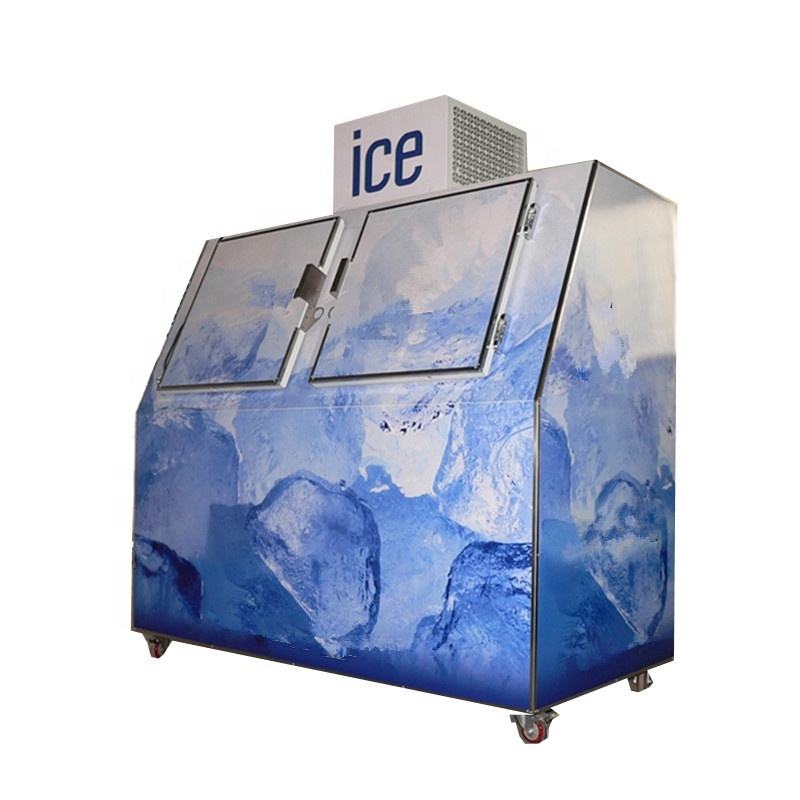

Ice freezer DC-600 bagged ice storage bin for gas station with inclined doors
DC-600 ice freezer Specification
* Indoor use and outdoor use optional.
* Auto Defrost and Cold Wall optional.
* Available to make Logo Artwork Advertisement as per clients' requirement.
| Model | DC-600 |
| Certificate | CE&Rohs |
| Temperature range | -12°C |
| Capacity(cubic feet) | 60 |
| Bag(8 Lbs) | 200 |
| Steel finish | Painted galvanized steel |
| Insulation | Polyurethane 80mm thick |
| Dimension(W*D*H)inch | 72x35x80 |
| Dimension(W*D*H) | 1830mm x890mm x 2030mm |
| Door type | Painted galvanized steel |
| Door size(W*H)inch | 27*27 |
| Door quantity | 2 solid doors |
| Refrigerant | R404a |
| Cooling system | Cold Wall / Auto Defrost |
| Compressor brand | Embraco 3/4hp |
| 40ft container loading QTY |
13 pieces
|
DC-600 outdoor ice freezer Features
1. Polyurethane insulation ,painted galvanized steel
2. Merchandiser solid door with stainless steel / painted galvanized steel/ embossed aluminum
3. Good quality door rubber with magnet
4. Good quality wheels.Or we can make without wheels, or with bullet feet.
5. Drainage hole on the bottom of the ice bin
6. Auto Defrost and Cold Wall (copper pipe around the cupboard) optional
7. Voltage: 110V/60Hz, 220V/60Hz ,220V/50Hz
DC-600 ice freezer Cold Wall System
DC-600 outdoor ice storage box Door handle
There are A.B.C.D four types of door handles optional
\
We have ice merchandiser / bagged ice storage bin for indoor use and outdoor use, digital temperature control(waterproof for outdoor use).
The voltage and plug can be changed to meet client's actual need.
The ice storage bin/ice merchandiser can stand without / with roller(with brake)or adjustable bullet feet.
ice storage box / Ice merchandiser for indoor & outdoor use , we have many ice bin models with different capacity optional.
Temperature of the ice storage bins can be 0degree C/-5degree C/-12degree C/-18degree C.
The cooling system can be fan cooling or static cooling(Cold wall).
The door of the ice bins can be solid door or glass door.
The voltage can be changed as request.
We can asist you to make the logo artworks for the ice storage bin.
The ice merchandiser with different capacity:
Besides full assembled ice merchandisers , we also provide flat pack ice storage room for your option:
DC-600 ice freezer Packaging and shipping
1. Packing type: PE film+paper+crate / plywood case
2. Production time: after deposit, 20~25days ready for shipment
3.Shipping type: By ship
*manufacture polyurethane insulation panels
*OEM design and manufacture cold room,ice merchandiser,blast freezer, water chiller
*provide oversea installation service
