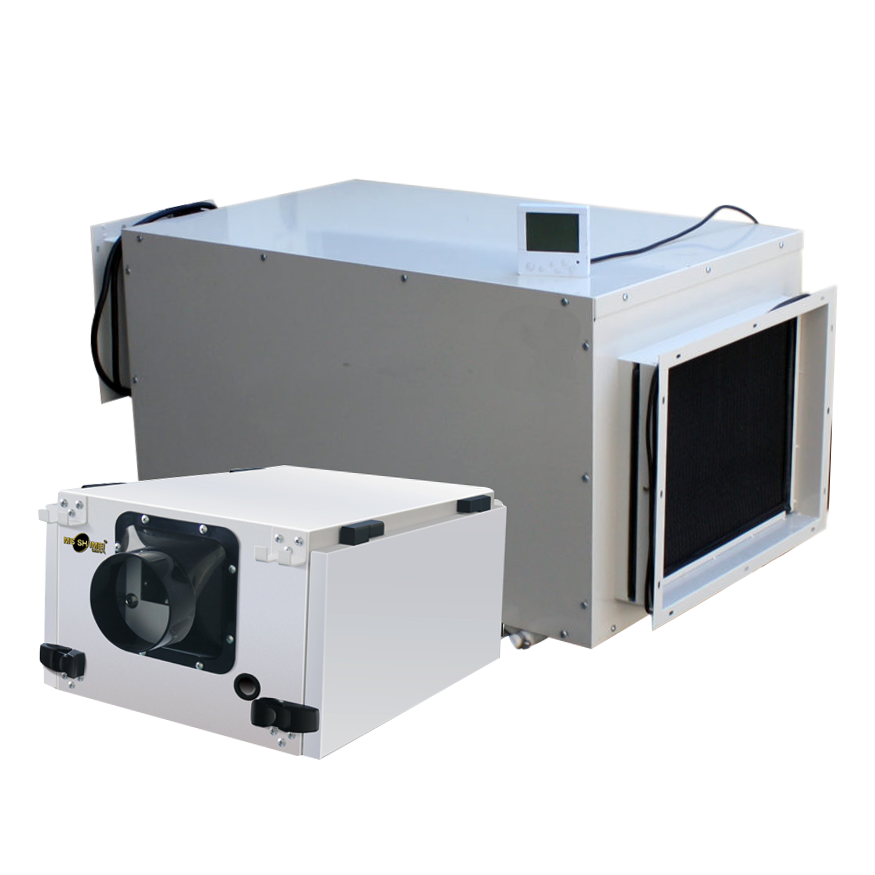

Functions: The machine is placed in a suspended ceiling, which does not occupy indoor space and does not affect the indoor aesthetic effect With indoor air humidity display, the humidity can be set arbitrarily from 30% -90%. Set the humidity that needs to be controlled. When the set humidity is reached, it will automatically stop when it is higher than the set humidity. The
machine humidity control switch can be led out separately and placed at any place. It is convenient for users to control and
observe in real time Can be customized according to customer requirements Note: The machine's air volume, appearance, flange mouth and body size can be changed according to customer requirements.
- Product Details
- {{item.text}}
Quick Details
-
Power Source:
-
Electric
-
Type:
-
Refrigerative Dehumidifier
-
Function:
-
Adjustable Humidistat, Auto Restart, Automatic Defrost, Automatic Humidistat Control, External Drain Connect, LED Display, Washable Air Filter
-
Capacity (pints / 24h):
-
190
-
Coverage Area (sq. ft.):
-
1615
-
Dimensions (L x W x H (Inches):
-
37.4''x21.2''x23.2''
-
Fan Speed:
-
0
-
Power (W):
-
1300
-
Voltage (V):
-
220
-
Water Tank Capacity (l):
-
0
-
Working Temperature Range:
-
5-38℃
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
msshimei
-
Model Number:
-
SMS-90B
-
Product name:
-
Ceiling Mounted Dehumidifier
-
Dehumidifying capacity:
-
90L/Day
-
Refrigerant:
-
R410a/R407c/R134a
-
Certification:
-
ce
Quick Details
-
After-sales Service Provided:
-
Free spare parts, Overseas Call Centers
-
Warranty:
-
1 Year
-
Application:
-
Garage, Commercial, Household
-
Power Source:
-
Electric
-
Type:
-
Refrigerative Dehumidifier
-
Function:
-
Adjustable Humidistat, Auto Restart, Automatic Defrost, Automatic Humidistat Control, External Drain Connect, LED Display, Washable Air Filter
-
Capacity (pints / 24h):
-
190
-
Coverage Area (sq. ft.):
-
1615
-
Dimensions (L x W x H (Inches):
-
37.4''x21.2''x23.2''
-
Fan Speed:
-
0
-
Power (W):
-
1300
-
Voltage (V):
-
220
-
Water Tank Capacity (l):
-
0
-
Working Temperature Range:
-
5-38℃
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
msshimei
-
Model Number:
-
SMS-90B
-
Product name:
-
Ceiling Mounted Dehumidifier
-
Dehumidifying capacity:
-
90L/Day
-
Refrigerant:
-
R410a/R407c/R134a
-
Certification:
-
ce
|
Model
|
SMS-26B
|
SMS-36B
|
SMS-56B
|
SMS-90B
|
SMS-138B
|
SMS-156B
|
|
Dehumidify capacity
|
26Liter/Day
55Pints/Day
|
36Liter/Day
76Pints/Day
|
56Liter/Day
118Pints/Day
|
90Liter/Day
190Pints/Day
|
138Liter/Day
292Pints/Day
|
156Liter/Day
330Pints/Day
|
|
Power
|
350W
|
450W
|
1000W
|
1300W
|
1800w
|
2300W
|
|
Air circulation
|
280m3/h
|
350m3/h
|
550m3/h
|
900m3/h
|
1100m3/h
|
1500m3/h
|
|
Working temperature
|
5-38℃
41-100℉
|
5-38℃
41-100℉
|
5-38℃
41-100℉
|
5-38℃
41-100℉
|
5-38℃
41-100℉
|
5-38℃
41-100℉
|
|
Weight
|
10kg
|
15kg
|
25kg
|
51kg
|
55kg
|
65kg
|
|
Applying space
|
30m2
320ft²
|
50m2
540ft²
|
80m2
860ft²
|
120m2
1300ft²
|
180m2
1930ft²
|
200m2
2150ft²
|
|
Voltage
|
110-240V 50,60Hz
|
110-240V 50,60Hz
|
110-240V 50,60Hz
|
110-240V 50,60Hz
|
110-240V 50,60Hz
|
110-240V 50,60Hz
|
|
Model
|
SMS-8kg
|
SMS-10kg
|
SMS-12kg
|
SMS-15kg
|
SMS-20kg
|
SMS-30kg
|
|
Dehumidify capacity
|
192Liter/Day
405Pints/Day
|
240Liter/Day
507Pints/Day
|
288Liter/Day
608Pints/Day
|
360Liter/Day
760Pints/Day
|
480Liter/Day
1015Pints/Day
|
720Liter/Day
1521Pints/Day
|
|
Power
|
3000w
|
4200w
|
5500w
|
6000w
|
8000w
|
10kw
|
|
Air circulation
|
2000m3/h
|
2800m3/h
|
3000m3/h
|
4100m3/h
|
5800m3/h
|
8000m3/h
|
|
Working temperature
|
5-38℃
41-100℉
|
5-38℃
41-100℉
|
5-38℃
41-100℉
|
5-38℃41-100℉
|
5-38℃41-100℉
|
5-38℃41-100℉
|
|
Weight
|
80kg
|
90kg
|
95kg
|
105kg
|
115kg
|
125kg
|
|
Applying space
|
250m²
2600ft²
|
300m²
3200ft²
|
350m²
3750ft²
|
400m²
4300ft²
|
500m²
5400ft²
|
800m²
8600ft²
|
|
Voltage
|
380-415V 50,60Hz 3PH
|
380-415V 50,60Hz 3PH
|
380-415V 50,60Hz 3PH
|
380-415V 50,60Hz 3PH
|
380-415V 50,60Hz 3PH
|
380-415V 50,60Hz 3PH
|
How Ducted dehumidifiers work？
A ducted dehumidifier is a dehumidifier that is connected to a duct or ventilation shaft with either the supply air, return air,or both. The duct work can be connected to an existing HVAC system or ducted out on its own to an exterior area.
Are all dehumidifiers ducted?
Depending on the application, a dehumidifier doesn’t have to be ducted to do its job. Only dehumidifiers with a strong enough fan
to overcome the static pressure of the ductwork are capable of being ducted.
Why use a ducted dehumidifier?
Often the space that needs to be dehumidified is not the same space that houses the dehumidifier, the application requires a better distributed airflow, or there are multiple spaces needing dry airflow. By ducting the dehumidifier to these remote locations, the user has the freedom to install the dehumidifier where ever it is convenient, easily distribute dry air across a wide area, or can use a single dehumidifier to dry multiple spaces. Ducted dehumidifiers also have the added benefit of being able to condition fresh outside air to the space rather than just circulate stale indoor air.
Why might you need a ducted dehumidifier?
1. IF YOU HAVE AN ESPECIALLY LARGE SPACE.
If your space is very large, such as an indoor ice rink or a water treatment facility, using a ducted dehumidification system
maybe the best option. By nature, the system can distribute the air evenly or target trouble areas.
2. IF THE AREA NEEDING TO BE DRIED HAS LIMITED POWER AVAILABILITY OR SPACE CONSTRAINTS.
If, such as in an indoor pool, the area needing to be conditioned doesn’t have available space to house the dehumidifier, ducting the unit from a utility closet gives the flexibility needed to manage the space properly.
3. IF YOUR SPACE HAS POOR VENTILATION OR HAS MULTIPLE COMPARTMENTS.
Spaces that have poor ventilation often benefit from a ducted dehumidifier, as the system’s design allows for fresh air to
circulate through the space. Using a ducted dehumidifier can help such areas by maintaining a healthy air quality. This is also beneficial in facilities like Self-Storage or float spas where there are multiple smaller rooms that need to be addressed.
A ducted dehumidifier is a dehumidifier that is connected to a duct or ventilation shaft with either the supply air, return air,or both. The duct work can be connected to an existing HVAC system or ducted out on its own to an exterior area.
Are all dehumidifiers ducted?
Depending on the application, a dehumidifier doesn’t have to be ducted to do its job. Only dehumidifiers with a strong enough fan
to overcome the static pressure of the ductwork are capable of being ducted.
Why use a ducted dehumidifier?
Often the space that needs to be dehumidified is not the same space that houses the dehumidifier, the application requires a better distributed airflow, or there are multiple spaces needing dry airflow. By ducting the dehumidifier to these remote locations, the user has the freedom to install the dehumidifier where ever it is convenient, easily distribute dry air across a wide area, or can use a single dehumidifier to dry multiple spaces. Ducted dehumidifiers also have the added benefit of being able to condition fresh outside air to the space rather than just circulate stale indoor air.
Why might you need a ducted dehumidifier?
1. IF YOU HAVE AN ESPECIALLY LARGE SPACE.
If your space is very large, such as an indoor ice rink or a water treatment facility, using a ducted dehumidification system
maybe the best option. By nature, the system can distribute the air evenly or target trouble areas.
2. IF THE AREA NEEDING TO BE DRIED HAS LIMITED POWER AVAILABILITY OR SPACE CONSTRAINTS.
If, such as in an indoor pool, the area needing to be conditioned doesn’t have available space to house the dehumidifier, ducting the unit from a utility closet gives the flexibility needed to manage the space properly.
3. IF YOUR SPACE HAS POOR VENTILATION OR HAS MULTIPLE COMPARTMENTS.
Spaces that have poor ventilation often benefit from a ducted dehumidifier, as the system’s design allows for fresh air to
circulate through the space. Using a ducted dehumidifier can help such areas by maintaining a healthy air quality. This is also beneficial in facilities like Self-Storage or float spas where there are multiple smaller rooms that need to be addressed.
