- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HX
-
Voltage:
-
380v, 380V50HZ/Customized
-
Dimension(L*W*H):
-
1500*700*1750mm
-
Power (kW):
-
3
-
Weight (T):
-
0.65
-
Name:
-
Plastic shredder machine
-
Machinery Type:
-
Automnatic
-
Application:
-
Industry
-
Function:
-
Recycle Plastic
-
Capacity:
-
300-500kg/h
-
Advantage:
-
Easy Opperation
-
Color:
-
Customized Color
-
MOQ:
-
1 Pcs
Quick Details
-
Max.Production Capacity (kg/h):
-
500
-
Place of Origin:
-
Jiangsu, China, China
-
Production Capacity (kg/h):
-
300 - 500 kg/h
-
Brand Name:
-
HX
-
Voltage:
-
380v, 380V50HZ/Customized
-
Dimension(L*W*H):
-
1500*700*1750mm
-
Power (kW):
-
3
-
Weight (T):
-
0.65
-
Name:
-
Plastic shredder machine
-
Machinery Type:
-
Automnatic
-
Application:
-
Industry
-
Function:
-
Recycle Plastic
-
Capacity:
-
300-500kg/h
-
Advantage:
-
Easy Opperation
-
Color:
-
Customized Color
-
MOQ:
-
1 Pcs

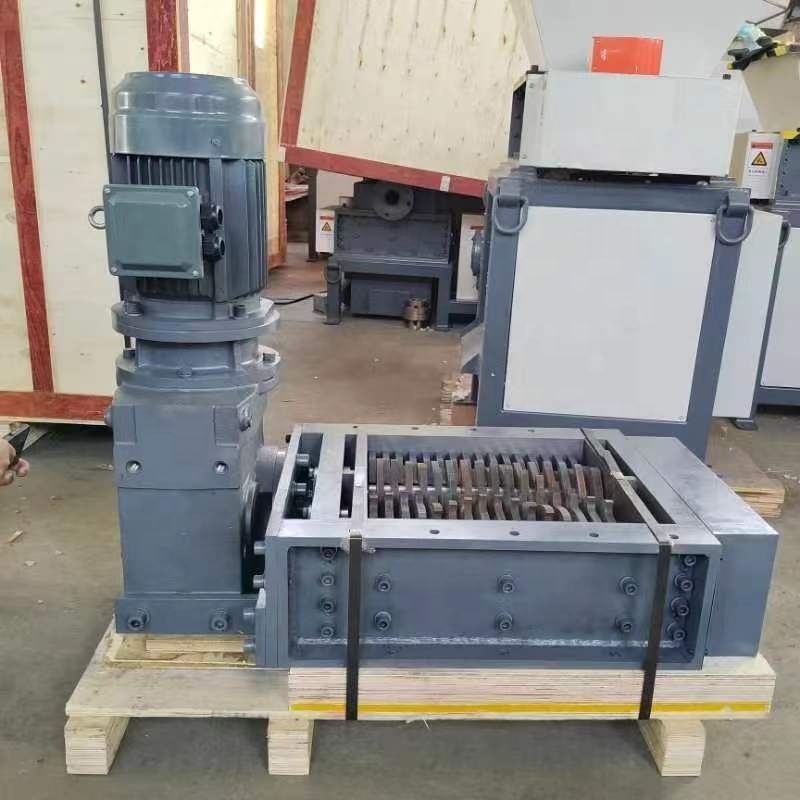

Mini Small Double Shaft Shredder Machine
Product introduction
Your company can easily experience optimized shredding efficiency once you install and utilize the high-quality power of the Pro-shred P-30 Industrial Shredder. This compact machine is the ideal solution for businesses looking to maximize cost effectiveness and revenue as it provides you with equal amounts of power and durability. Offering a light-duty throughput of up to 1 ton per hour, the shredder is designed to allow you to keep the workflow moving without interruption so you can keep up with the growing demands of the industry.
The superior performance of the P-30 Industrial Shredder makes it the ideal model to drive your business forward and past the competition. This high-quality shredder works excellently with material up to 16” x 27.5” in size and can effectively reduce bulky loads into easy-to-manage scraps for further processing and use. The machine can be used for a variety of applications, including molded car parts, circuit boards, confidential documents, sharps, medical waste, hard drives,and much more. The shredder is available with a wide range of gear reduced drive ratios fitted with 7.5,15, 20, or 25 HP electric motors. Our highly skilled and experienced engineers have included several design refinements to increase the ease of maintenance and shredder durability for the P-30 Industrial Shredder, including a new torque tube body design that works effortlessly with the increased shaft hex thickness, knife diameter, and spacer thickness.
Product Paramenters
|
Model
|
180
|
300
|
400
|
500
|
|||
|
Motor
|
1.5KW
|
3KW
|
4KW
|
7.5KW
|
|||
|
Reducer
|
JL1#-16
|
JL2#-16
|
JL3#-12
|
JL4#-15
|
|||
|
Input speed
|
16 turns/min
|
16 turns/min
|
12 turns/min
|
15 turns/min
|
|||
|
Main shaft diameter(mm)
|
Φ35
|
Φ50
|
Φ60
|
Φ70
|
|||
|
Blade size(mm)
|
Φ90*8
|
Φ180*12
|
Φ180*15
|
Φ200*20
|
|||
|
Blade numbers
|
21pcs
|
24pcs
|
26pcs
|
24pcs
|
|||
|
Dimension(mm)(L*W*H)
|
1350*650*1200
|
1100*650*1350
|
1160*600*1450
|
1350*700*1600
|
|||
|
Machine weight
|
120KG
|
500KG
|
600KG
|
750KG
|
|||
|
Application
|
Light metal products, plastic products, kitchen waste, wood, paper, etc
|
|
|
|
|||
Application
The P-30 Industrial Shredder can be used for the following applications: * Aluminum Recycling
* E-Waste Recycling
* Circuit Board Recycling
* General Waste Recycling
* Medical Waste Recycling
* Metal Recycling
* Paper Shredding
* Plastic Recycling
* Textiles & Carpet Recycling
* E-Waste Recycling
* Circuit Board Recycling
* General Waste Recycling
* Medical Waste Recycling
* Metal Recycling
* Paper Shredding
* Plastic Recycling
* Textiles & Carpet Recycling
Standard Features for the P-30
The dedication of our engineers has resulted in a high-performance P-30 Industrial Shredder that offers superior durability and higher service factors thanks to the excellent quality of its standard features. Along with bulkhead walls and labyrinth barriers at either end of the cutting chamber, the machine is equipped with other standard features that improve the quality of the shredding process. These include highly durable knives, sturdy hex shafts, and a user-friendly control panel. Each component is engineered to enhance the overall shredding experience for improved serviceability and up time.
Industrial Shredder is outfitted with a series of sharp and durable knives that have been designed to bite straight through a range of products and materials. These powerful knives can eat through bulky loads with ease, tearing the materials into shreds as
though they were made of butter.
Each knife is 7 3/4” in diameter, giving them plenty of strength to shred paper, boxes, plastic parts, hard drives, and more.
though they were made of butter.
Each knife is 7 3/4” in diameter, giving them plenty of strength to shred paper, boxes, plastic parts, hard drives, and more.
The hex shaft is uniquely designed to maximize knife placement options so that you experience optimized shredding use for a wide variety of applications.The hex shaft works together with the knives to guarantee maximum shred size on the materials. The shaft is easy to access for easier knife removal and machine maintenance.
It is several times stronger than a keyed shaft, and its drive system offers the highest knife-tip cutting force to outperform in the industry.
It is several times stronger than a keyed shaft, and its drive system offers the highest knife-tip cutting force to outperform in the industry.
The shredder chamber box uses carbon steel plate as the foundation and is fixed and spliced with screws, making it more convenient for users to remove and replace blades
Optional Accessories
Everything you need to control the P-30 Industrial Shredder is available at the powerful control panel included on the P-30, the control panel features several advantages that help you utilize the shredder to its full potential. These include illuminated function buttons, keyed power switched, and a programmable logic controller for shredder functions, including knife reversal on overload.
For an increase in convenience, we recommend you include either the in-feed conveyor, the out-feed conveyor, or both with your P-30 Industrial Shredder. In-feed conveyors automatically transport the materials to the shredder for destruction, while out-feed
conveyors carry the shredded remains away for collection and sorting. They are designed to keep the workflow moving smoothly without interruption so you can maximize convenience, efficiency, and revenue.
conveyors carry the shredded remains away for collection and sorting. They are designed to keep the workflow moving smoothly without interruption so you can maximize convenience, efficiency, and revenue.
Hoppers are engineered for optimal durability and usability to keep the flow of materials into the shredder as smooth as possible.
This heavy-duty hopper is wide enough to accept a variety of bulky material while it remains durable enough to withstand the constant demand of the job. Its funnel-like design guides material into the shredder in such a manner that helps to prevent
buildup or blockage, and it can be modified to suit the application or installation.
This heavy-duty hopper is wide enough to accept a variety of bulky material while it remains durable enough to withstand the constant demand of the job. Its funnel-like design guides material into the shredder in such a manner that helps to prevent
buildup or blockage, and it can be modified to suit the application or installation.
