Quick Details
-
Weight (KG):
-
2000
-
Brand Name:
-
SHUNFENG
-
Place of Origin:
-
Zhejiang, China
-
Die Size(mm):
-
200 - 1000 mm
-
Model Number:
-
SJ-B55
-
Year:
-
2019
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5500 x 2100 x 4700mm
-
After-sales Service Provided:
-
Online support
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Power(W):
-
15KW
-
Weight:
-
2T
-
Name:
-
Greenhouse Plastic Film Blowng Machine
-
Color:
-
Blue
-
Product name:
-
Film Blowing Machine for biodegradable
-
Capacity:
-
50-500KG PER Hour
-
Machine type:
-
MOTOR
Quick Details
-
Output (kg/h):
-
40 - 45
-
Number of Layers:
-
Single-layer
-
Screw diameter (mm):
-
55
-
Weight (KG):
-
2000
-
Brand Name:
-
SHUNFENG
-
Place of Origin:
-
Zhejiang, China
-
Die Size(mm):
-
200 - 1000 mm
-
Model Number:
-
SJ-B55
-
Year:
-
2019
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5500 x 2100 x 4700mm
-
After-sales Service Provided:
-
Online support
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Power(W):
-
15KW
-
Weight:
-
2T
-
Name:
-
Greenhouse Plastic Film Blowng Machine
-
Color:
-
Blue
-
Product name:
-
Film Blowing Machine for biodegradable
-
Capacity:
-
50-500KG PER Hour
-
Machine type:
-
MOTOR
Head rotating die PE extruder hdpe plastic shrinking blowing film machine

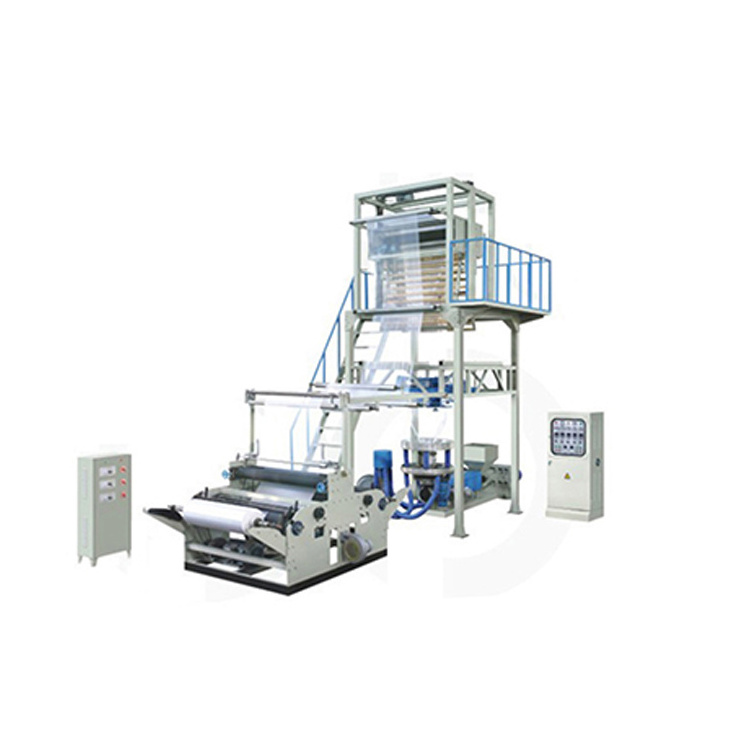

PE Film Blowing Machine Real Picture:
Main Technical Description
It is extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Product detail:
It is used for blowing the plastic laminated film of low density polyethylene(LDPE), high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc.
Main technical parameters:
|
Model |
B50 |
B55 |
B60 |
B65 |
|
Diameter of screw |
φ50 |
φ55 |
Φ60 |
φ65 |
|
Rcduced diameter of film(mm) |
100-600 |
200-800 |
300-1000 |
400-1200 |
|
Single-sided Thickness of Film |
0.008-0.08mm |
0.008-0.08mm |
0.008-0.08mm |
0.008-0.08mm |
|
Max.Extrusion(Kg/h) |
30-35 |
40-45 |
50-60 |
60-80 |
|
L/D |
28:1 |
28:1 |
28:1 |
28:1 |
|
Power of main moto(kw) |
11 |
15 |
18.5 |
22 |
|
Power of Tracion main moto(kw) |
1.5 |
1.5 |
1.5 |
2.2 |
|
Die head |
Φ60 , φ120 |
Φ80 , φ150 |
Φ120 , φ200 |
Φ150 , φ250 |
|
Heating Power(kw) |
11 |
13 |
19 |
21 |
|
Outline diameter(L x W x H) (mm) |
4800 x 1900 x 4100 |
5500 x 2100 x 4700 |
6500 x 2300 x 4900 |
6500 x 2500 x 5600 |
|
Weight(T) |
1.5T |
2T |
2.3T |
2.6T |
Configuration:
|
Temperature meter |
Omron |
|
Switch |
Schneider |
|
Inverter |
Delta |
|
Relay |
Omron |
|
Solenoid valve |
Taiwan |
|
Thermocouple |
RKC JAPAN |
|
Voltmeter |
Japan |
|
Ammeter |
Japan |
|
Barrel and screw material |
38 chrome-molybdenum aluminum , nitrogen treated |
|
Gear box |
hard tooth surface |
|
Head |
Rotary die head |
|
winder |
Double rewinder |
|
Main motor |
CHINESE BRAND |
|
Heating ring |
cast aluminum |
|
winder motor |
torque motor |
|
Embossing roller |
yes |
|
Power |
3PASE 380V 50HZ |
2.Spare Parts
|
1 |
Filter net |
3M |
|
2 |
Lodestone |
1 pc |
|
3 |
Blowing pipe |
2 pc |
|
4 |
Thermocouple |
2 pc |
|
5 |
Voltage meter |
1 pc |
|
6 |
Screw heater (stainless steel) |
2 pc |
|
7 |
Three through heater (stainless steel) |
1 pc |
|
8 |
Test pen |
1 pc |
|
9 |
Screw driver |
1 pc |
|
10 |
Inner hexagon wrench |
1 pc |
|
11 |
Glove |
4 pc |
|
12 |
Temperature meter |
1 pc |
|
13 |
Current meter |
1 pc |
|
14 |
AC contactor CJX1-22A/220V |
1 pc |
|
15 |
Mandril |
1 pc |
3.Optional equipments should extra cost
|
1 |
CORONA TREATER |
USD500.00 (For SJ-A50,55) USD800 (For SJ-A65, USD1000 (For SJ-A65-1) |
CHINA BRAND |
|
2 |
UP AND DOWN DEVICE |
USD 500 |
|
|
3 |
AUTO LOADER |
USD500.00 |
CHINA BRAND |
|
4 |
AIR SHAFT -2PCS |
USD300 (for 600 mm width) USD400 (for 800 mm width) USD500 (for 1000 mm width) USD600 (for 1200 mm width) |
|
|
5 |
with pneumatic cylinder on top tower and winder side. With pneumatic cylinder control the pressure roller and embossing roller |
USD300 |
|
|
6 |
Mechanics-screen changer |
USD900 (for SJ-A50. 55) Usd1100 (for SJ-A65, 65-1) |
|
|
7 |
INVERTER IF USE DELTA BRAND |
+ USD400 (for SJ-A50,55)
+USD600 ( for SJ-A65.65-1) |
Our Showroom:
Zhejiang Lifeng Machinery Co., Ltd,which has a long history, grand scale, self-research, sales service is professionally manufacturing plastic soft packaging machine with high technology.The quality of its products had firstly passed the certification of quality management system ISO9001-2008 and CE certification of European Union.
We are professional manufacture in kinds of Bag Making Machine,Film Blowing Machine,Printing Machine,Cutting Machine ,Recycle Machine,Plastic Air Bubble Film Machine,Laminating Machine,Slitting and Rewinding Machine are popular in all the markets of the whole world ,products are exported to eastern Europe,North America ,Southeast,Asia,Russia,Africa,Middle East and more than 20 countries and regions , They win good reaction in the market and welcomed by vast customers no matter new or old from home and abroad.
Q1:Are you a factory or trading company?
A1
:
We are established in 1995, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2
:
Our factory is located in Rui'an City, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Which industries are widely used in of your machine?
A3
:
Those are mainly used in making plastic bags and labels in the maket. Examples of stand up pouch, zipper pouch, plastic bag for dialy necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft carboard, etc.
Q4: How about the payment term?
A4
:
For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q5: What about your main market?
A5
:
Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q6: How does your factory do regarding quality control?
A6
:
Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q7:What about warranty and do the engineers available to overseas?
A7
:
One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q8:What about the service after sale?
A8
:
One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.
