Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JET POWER
-
Model Number:
-
JET POWER
-
Speed:
-
1500/1800rpm
-
Alternator:
-
JET POWER/China Stamford/Others
-
Product Name:
-
Diesel Generator
-
engine of diesel generator:
-
USA/UK/German/Japanese brand
-
Controller of diesel generator:
-
Jet Power/Smartgen/Others
-
Certificate of diesel generator:
-
CE/ ISO9001/Others
-
Warranty of diesel generator:
-
1000 Working Hours/1 years
-
Generator Lylinder:
-
2L,4L,6L,12L,16L
-
Color of diesel generator:
-
Red/Yellow/White/Gray/Blue/Green
-
Options of diesel generator:
-
Customer's Logo
-
Type of diesel generator:
-
Open/Silent/Soundproof/Trailer/Container
-
Certification:
-
CE/ISO
Quick Details
-
Rated Voltage:
-
220/380v,230/400v,240/415v
-
Rated Current:
-
10-5000A
-
Frequency:
-
50/60HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JET POWER
-
Model Number:
-
JET POWER
-
Speed:
-
1500/1800rpm
-
Alternator:
-
JET POWER/China Stamford/Others
-
Product Name:
-
Diesel Generator
-
engine of diesel generator:
-
USA/UK/German/Japanese brand
-
Controller of diesel generator:
-
Jet Power/Smartgen/Others
-
Certificate of diesel generator:
-
CE/ ISO9001/Others
-
Warranty of diesel generator:
-
1000 Working Hours/1 years
-
Generator Lylinder:
-
2L,4L,6L,12L,16L
-
Color of diesel generator:
-
Red/Yellow/White/Gray/Blue/Green
-
Options of diesel generator:
-
Customer's Logo
-
Type of diesel generator:
-
Open/Silent/Soundproof/Trailer/Container
-
Certification:
-
CE/ISO

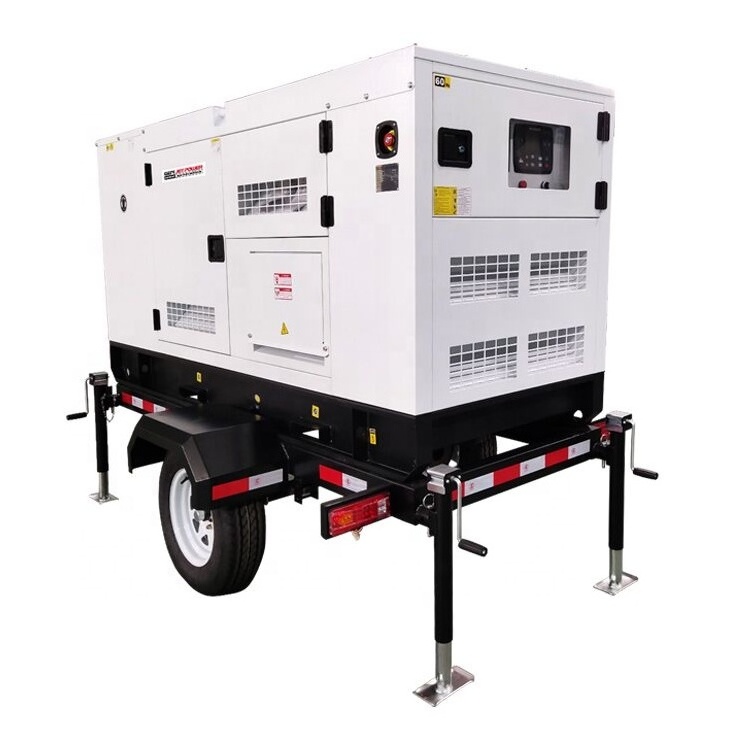

Diesel generator set Silent / Soundproof type / Open type / Trailer type/ Container type
Safety – Stability – Economy - Reliability Power
1. Our cooperate with famous diesel engine –Powered by USA Engine, UK Brand Diesel engine Deutz , LovoL ,Doosan, Shangchai, Xichai, SDEC, Weichai, Ricardo ..
2. Equipped with famous Brushless alternator ,brand options.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Generator technical details :
|
Main standards
|
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
|
|
Prime output power
|
from 5KVA to 2500KVA
|
|
Rated voltage
|
120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional
|
|
Generator Phase and connecting
|
3 phase, 4wire.
|
|
Rated frequency
|
50Hz@1500rpm or 60Hz@1800rpm
|
|
Alternator excited type
|
Brushless, self excited or PMG optional
|
|
Alternator Insulation
|
Class H
|
|
Alternator Protection
|
IP21 ~ IP23
|
|
Voltage regulation
|
AVR automatic control 1%
|
|
Altitude above sea level
|
≤1000 meters
|
|
Ambient air temperature
|
≤40°C
|
|
Relative air humidity
|
≤ 90%
|
