Quick Details
-
Power:
-
15-70Kw depends on capacity
-
Dimension(L*W*H):
-
20-100M2 depends on capacity
-
Weight:
-
Various in different models
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Equipment Material:
-
SUS304 or Red Copper M2 for outer shell
-
Thickness of Tanks:
-
3mm for inner container/2mm for outer shell
-
Color Available:
-
Mirror SUS, Luxury red copper
-
Heating:
-
Electric/steam
-
Heat Insulation:
-
Polyurethane or Rockwool with Thickness=80mm
-
Inner Polishing Precision:
-
0.4 Micrometer
-
Volume Design:
-
Properly according to the capacity request
-
Controlling System:
-
PLC; HMI or Touch Panel
-
Plants Type:
-
Turnkey or Customerized
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tiantai or OEM
-
Voltage:
-
220V/380v/415V, 440V
-
Power:
-
15-70Kw depends on capacity
-
Dimension(L*W*H):
-
20-100M2 depends on capacity
-
Weight:
-
Various in different models
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Equipment Material:
-
SUS304 or Red Copper M2 for outer shell
-
Thickness of Tanks:
-
3mm for inner container/2mm for outer shell
-
Color Available:
-
Mirror SUS, Luxury red copper
-
Heating:
-
Electric/steam
-
Heat Insulation:
-
Polyurethane or Rockwool with Thickness=80mm
-
Inner Polishing Precision:
-
0.4 Micrometer
-
Volume Design:
-
Properly according to the capacity request
-
Controlling System:
-
PLC; HMI or Touch Panel
-
Plants Type:
-
Turnkey or Customerized
-
Certification:
-
CE ISO

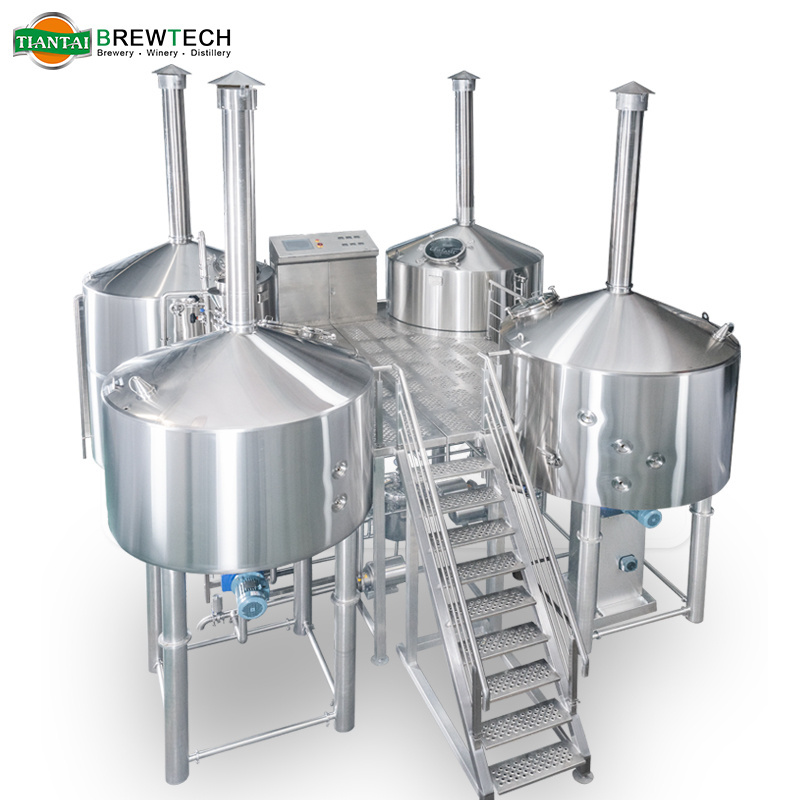

2HL 5HL 6HL 8HL 10HL 12HL 15HL 20HL 25HL 30HL 35HL Micro B eer Brewing Brewery Equipment
The brewery can be SUS304 or copper cladding in material, steam, electric or direct fire heating, two/three or four vessel brewhouse.
The system contains milling, brewhouse, fermenter, bright beer tank, control unit, Glycol cooling Unit and CIP Cleaning System, as well as kegging and Bottling system.
The mashing process and the wort filtration process are completed by Mash tun/ lauter tank; The boiling and whirlpool processes are completed by one tank.
This system usually brews two or three batches a day. According to different fermentation cycles of brewed beer, 6pcs double batches fe rmenters or 12pcs single batch fermentors can usually be configured.
The system also needs to be equipped with a complete automatic or manual control system , malt milling system , CIP system , cooling system , steam heating system , air system , etc.
> With ISO TUV SGS, the product meets the GB/ CE/PED/ASME standard
>
Local service
in EUROPE, AUSTRALIA ETC
>
5 Years
Warranty for tanks
>
0 trade risk
verified by more than 1100 breweries
> 20 Years Manufacture and Management Experience
> Installed More than 1100 breweries in 76 Countries
> Two/Three/Four vessels with hot water, first batch takes about 8 hours, and two batches of 14 hours are allowed;
> All certificated
304
stainless steel, easy to clean; Copper cladding for special environments such as bars;
>
Steam heated
, high thermal efficiency, gentle for wort; Electric or direct fire heating available;
> The
wort cooled
by tap water and -5 ºC ice water to cool in two stages, Single stage available;
> Mashing heating and fermentation cooling
automatically controlled
, and manual control switched at any time;
> Manual valve control, humanized operation, low equipment investment cost, high cost performance; PLC automatic control for upgrade;
2HL 5HL 6HL 8HL Micro Beer Brewing Brewery Equipment
|
Output/Brew |
2HL |
3HL |
5HL |
6HL |
8HL |
|
Brew/Week |
2~6 |
2~6 |
2~6 |
2~6 |
2~6 |
|
Output/Week |
4~12HL |
6~18HL |
10~30HL |
12~36HL |
16~48HL |
|
Heating Source |
Electric/Steam |
||||
10HL 12HL 15HL 20HL 25HL 30HL 35HL Micro Beer Brewing Brewery Equipment
|
Output/Brew |
10HL |
12HL |
15HL |
20HL |
25HL |
30HL |
35HL |
|
Brews/Week |
6~12 |
6~12 |
6~12 |
6~12 |
6~12 |
6~12 |
6~12 |
|
Output/Week |
60~ 120HL |
72~ 144HL |
90~ 180HL |
120~ 240HL |
150~ 300HL |
180~ 360HL |
210~ 420HL |
|
Heating Source |
Steam/Directly Fired |
||||||
|
Area Request |
>70M2 |
>80M2 |
>100M2 |
>120M2 |
>140M2 |
>150M2 |
>180M2 |
Learn More About Brewery System
---- --- Customized Details for Better Brewing
Part 1, Milling Unit
Part 2, Micro Brewhouse (Take 2500L Automatic 3 Vessel Steam Heated System for Reference)
- Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
- Hot water tank and cold water tank for optional in special combinations
- Infusion or decoction brewing methods are designed exactly
Part 3, Fermentation Tank
>>>>More details about fermentation tank, please Click here
- Standard stainless steel conical cylindrical fermentation tanks
- Single size as brewhouse is common used in restaurant
Part 4, Beer Bright Tank
>>>>More details about Bright Beer tank, please Click here
- Standard stainless steel tank for beer maturation and serving.
- Single layer type, Horizontal type, stacked type are available.
Part 5, Glycol Water Cooling Unit
- Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
- Efficiency chillers or refrigerators with fryonto supply cooling energy
Part 6, Controlling Unit
- Electrical controlling cabinet with temperature, on-off controlling for brewhouse
- Temperature controller, thermocouple, solenoid valves etc are included Part 6, Controlling Unit
