Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Model Number:
-
4G1.5+1P1
-
Rated voltage:
-
500v
-
Product name:
-

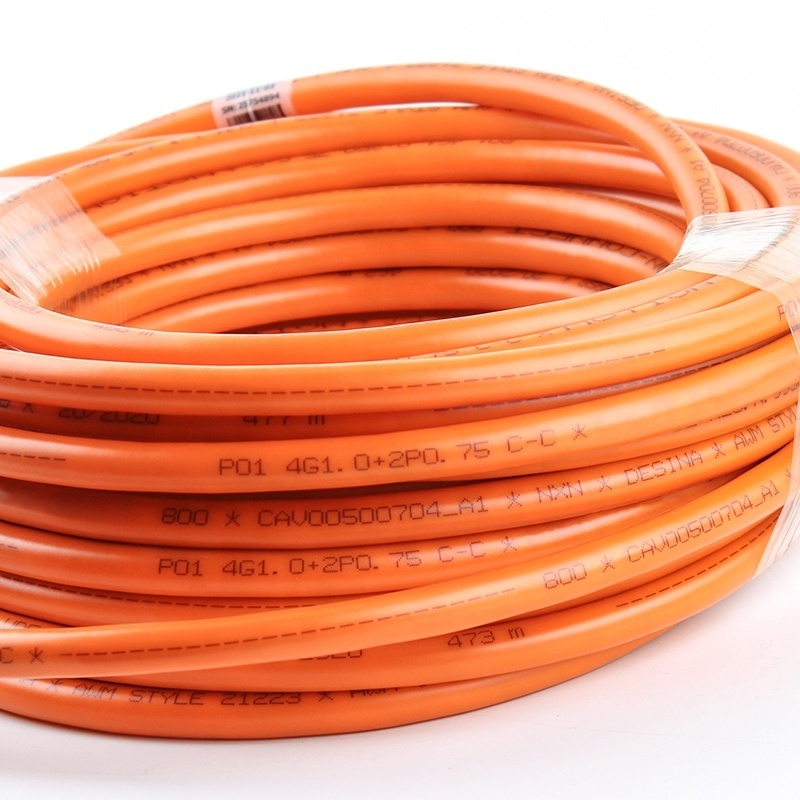

Industrial cable
Quick Details
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Solid
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Model Number:
-
4G1.5+1P1
-
Rated voltage:
-
500v
-
Product name:
-
Industrial cable
Product Description
Product data
MLFB-Ordering data 6FX5002-5DN01-1XXX
|
Electrical data
|
|
|
|
No. of cores x cross-ection mm²
|
4G1.5+1P1 C C
|
|
|
Test voltage, rms Power conductors
|
4.0kV
|
|
|
Test voltage, rms Signal conductors
|
2.0kV
|
|
|
Rated voltage V0/V according to EN 50395
|
600 V/1000V
|
|
|
Mechanical data
|
|
|
|
Maximum cable outer diameter
|
10.8 mm
|
|
|
Length
|
5m 10m 15m 20m 25m 30m .......
|
|
|
Weight (without connector)
|
2.5kg ↑
|
|
------------------------------------------------------
Static deployment
Smallest bending radius 27.0mm
Tensile load for permanently installed cable 50 N/mm²
Torsional stressAbsolute 30°/m
----------------------------------------
----------------------------------------
----------------------------------------
----------------------------------------
-----------
Dynamic deployment
Smallest bendi ng radius 195.0 mm
Acceleration horizontal, max 2 m/s²
Maximum traversing velocity
30 m/min
Travel path 5m
Number of bends, max. 100000
Tensile load for moving cable, max. 20 N/mm²
Technical data
|
Technical data
|
|
|
|
Ambient temperature
|
|
|
|
Operation with permanently installed cable
|
-20 ... 80 °C
|
|
|
|
Module-end power connector 0 ... 55°C
|
|
|
Operation with moving cable
|
0 ... 60 °C
|
|
|
|
Module-end power connector 0... 55°C
|
|
|
Storage
|
-20 ... 80 °C
|
|
|
|
Module-end power connector -20 ...70°C
|
|
|
|
|
|
|
Type of insulation
|
CFC/silicone-free
|
|
|
Standard for behavior in fire: flame resistance
|
EN 60332-1-1 to 1-3
|
|
|
Oil resistance
|
EN 60811-2-1 (mineral oil only)
|
|
