1)316L stainless steel isolation diaphragm structure
2)Anti-vibration and shock
3)Intrinsically safe explosion-proof
4)Strong anti-interference and good long-term stability
5)High-precision, all-stainless steel structure
6)Wide range, can measure absolute pressure, gauge pressure and seal gauge pressure
7)Diversified form and structure, convenient installation and use
8)Applicable to measure normal temperature medium,can work stably for a long time
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
KPT910
-
Product Name:
-
Pressure Transmitter
-
Range Selection:
-
-0.1~0...100MPa
-
Power Supply:
-
24V±20%
-
Output Signal:
-
4-20mA/0~5V/0~10V/RS485(Customizable)
-
Pressure Interface(Thread):
-
M20*1.5;G1/2;NPT1/4(Customizable)
-
Electric Interface:
-
Hirschmann/Cable connection/M12/Plug-in connector (Customizable)
-
Accuracy Class:
-
≤±0.25%FS
-
Ambient Temperature:
-
-10~+80℃
-
Storage Temperature:
-
-40~+85℃
-
Allowable Overload:
-
150% of Standard Range
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Eleckeeyoung
-
Model Number:
-
KPT910
-
Product Name:
-
Pressure Transmitter
-
Range Selection:
-
-0.1~0...100MPa
-
Power Supply:
-
24V±20%
-
Output Signal:
-
4-20mA/0~5V/0~10V/RS485(Customizable)
-
Pressure Interface(Thread):
-
M20*1.5;G1/2;NPT1/4(Customizable)
-
Electric Interface:
-
Hirschmann/Cable connection/M12/Plug-in connector (Customizable)
-
Accuracy Class:
-
≤±0.25%FS
-
Ambient Temperature:
-
-10~+80℃
-
Storage Temperature:
-
-40~+85℃
-
Allowable Overload:
-
150% of Standard Range

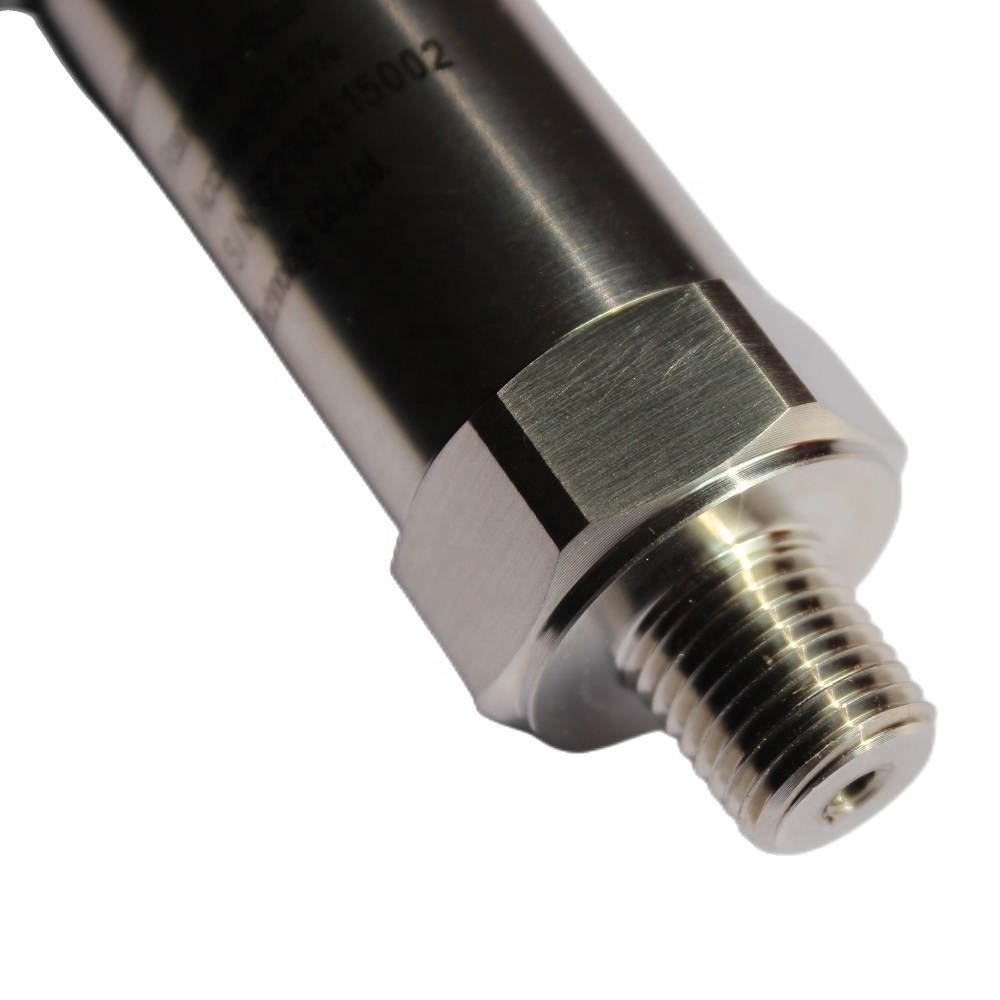

PressureTransmitter
The pressure transmitter uses the diffused silicon pressure core as the sensitive element, selects the full digital circuit, the amplification circuit is located in the stainless steel shell, which converts the sensor signal into a standard output signal.
It uses the laser resistance adjustment process to carry out the zero point and sensitivity temperature compensation in a wide temperature range.
The whole product has passed the strict test and aging of components, semi-finished products and finished products, and its overall performance is stable and reliable, and can be used for long-distance signal transmission. All stainless steel structure, easy to install. With high anti-interference and impact resistance.
It uses the laser resistance adjustment process to carry out the zero point and sensitivity temperature compensation in a wide temperature range.
The whole product has passed the strict test and aging of components, semi-finished products and finished products, and its overall performance is stable and reliable, and can be used for long-distance signal transmission. All stainless steel structure, easy to install. With high anti-interference and impact resistance.
|
Range Selection
|
-0.1~0...100MPa
|
|
|
|
|||
|
Output Signal
|
4-20mA/0~5V/0~10V/RS485(Customizable)
|
|
|
|
|||
|
Pressure Interface(Thread)
|
M20*1.5;G1/2;NPT1/4(Customizable)
|
|
|
|
|||
|
Electric Interface
|
Hirschmann/Cable connection/M12/Plug-in connector (Customizable)
|
|
|
|
|||
Features
1)Inquiry
Please send inquiry to us from the right-side or the bottom of this page and advise your requirements.
2)Response
We will contact you immediately when check your messages.
3)ODM & OEM service
We can provide OEM &ODM service for all items.
4)Price
The price is based on the product parameters, it can also be negotiable according to the quantity, must be reasonable price.
5) Sample and MOQ
We have materials in stock to help you to get the samples as soon.
MOQ depends on different products,generally it’s 1 unit.
6) Lead time
That depends on different products,once we receive payment,we will arrange production immediately.
7)Transport methods
DHL, FedEx, UPS,TNT, etc or designated logistics.
8)Technical service
Service all the time, no matter pre-sale or after-sales.
9)Warranty
12 months from shipment date, for non-man-made damages.
