Quick Details
-
Brand Name:
-
Fullwell
-
Use:
-
HFC
-
Warranty Time:
-
3 YEARS
-
Product name::
-

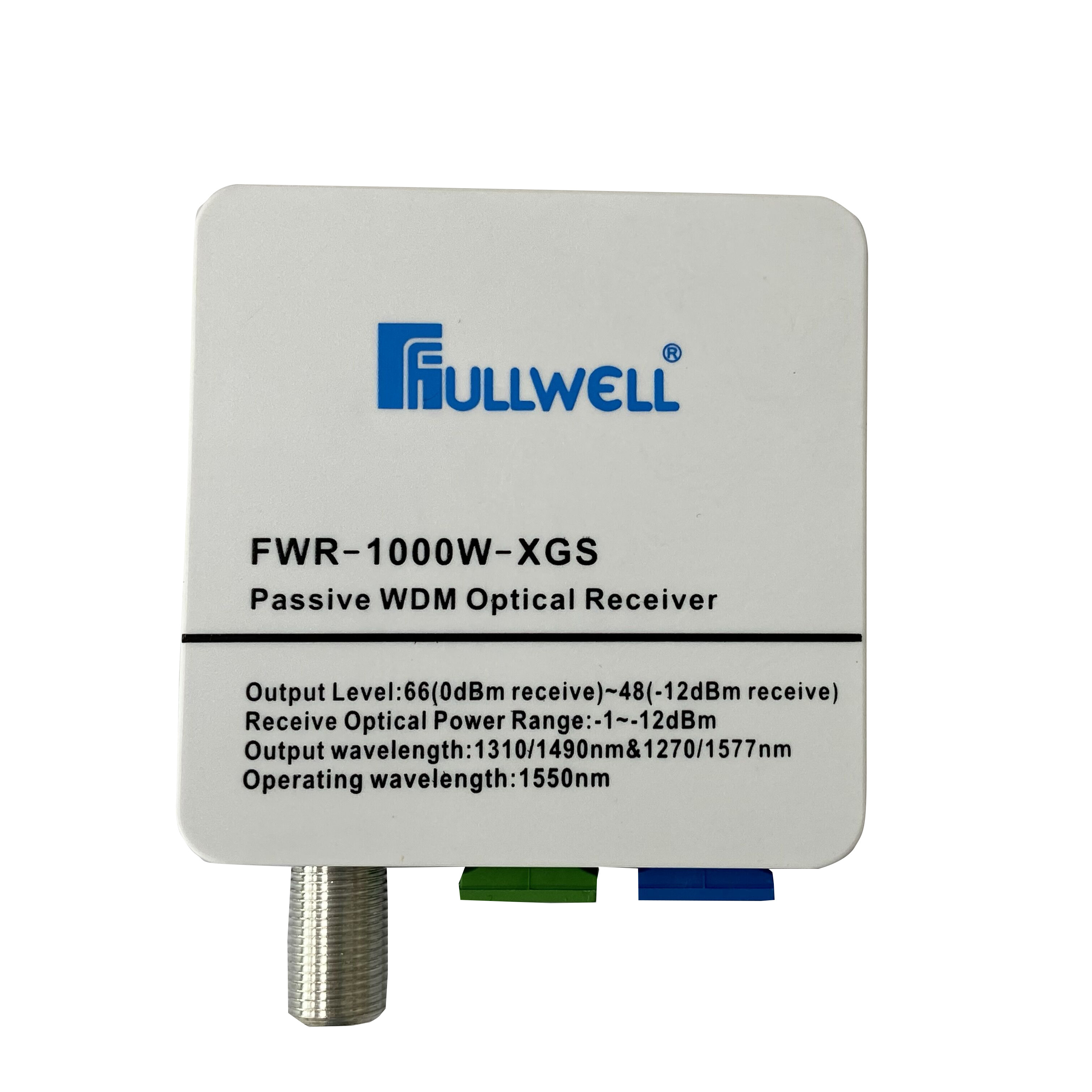

Passive optical node with XGS-PON
-
Certification::
-
CE RoHS FCC
-
Wavelength::
-
1540~1565nm
-
Model::
-
FWR-1000W-XGS
-
Optical connector::
-
Optical-IN:SC/APC, PON:SC/UPC
-
Bandwidth/ flatness::
-
47~1000/≤±2
-
Output Level::
-
66(0dBm receive)-48(-9dBm receive)
-
RF output interface::
-
Female or RF
-
CNR/MER::
-
≥44/34(0dBm),≥38/29(-6dBm)
-
CTB/CSO/HUM::
-
≥70/≥66/≥60(-3dBm/60dBuv)
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
FWR-1000W-XGS
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fullwell
-
Use:
-
HFC
-
Warranty Time:
-
3 YEARS
-
Product name::
-
Passive optical node with XGS-PON
-
Certification::
-
CE RoHS FCC
-
Wavelength::
-
1540~1565nm
-
Model::
-
FWR-1000W-XGS
-
Optical connector::
-
Optical-IN:SC/APC, PON:SC/UPC
-
Bandwidth/ flatness::
-
47~1000/≤±2
-
Output Level::
-
66(0dBm receive)-48(-9dBm receive)
-
RF output interface::
-
Female or RF
-
CNR/MER::
-
≥44/34(0dBm),≥38/29(-6dBm)
-
CTB/CSO/HUM::
-
≥70/≥66/≥60(-3dBm/60dBuv)
Technical Parameters
|
Item |
Unit |
Performance Parameter |
|
|
characteristic |
Input wavelength |
nm |
1310,1490,1550 &XG(S)-PON,1270/1577nm |
|
PON wavelength |
nm |
1310,1490 & XG(S)-PON,1270/1577nm |
|
|
Operation wavelength |
nm |
1540 ~ 1565 |
|
|
Channel separation |
dB |
≥40 ( 1310/1490nm & 1270/1577nm and 1550nm ) |
|
|
Response |
A/W |
≥0.9 |
|
|
Receiv ing power range |
dBm |
0~-12(advice -1~-6) |
|
|
Reflection loss |
dB |
≥45 |
|
|
Optical connector |
/ |
Optical-IN:SC/APC, PON:SC/UPC |
|
|
RF characteristic |
Bandwidth/ flatness |
MHz/dB |
47 ~ 1000/≤±2 |
|
Output Level |
dBuv |
66 ( 0dBm receive ) -48(-9dBm receive) |
|
|
RF output interface |
/ |
Female or RF |
|
|
CNR/MER |
dB |
≥44/34(0dBm) , ≥38/29(-6dBm) |
|
|
CTB/CSO/HUM |
dB |
≥70/≥66/≥60 ( -3dBm/60dBuv ) |
|
|
Other requirement |
Working/storage temperature |
℃ |
-30 ~ 55/-40 ~ 75 |
|
Working/ storage humidity |
% |
Humidity(5%-90%) ( (No Condensation ) |
|
|
Size |
mm |
78×60×22.5 |
|
Features
- Only WDM & optical electric exchanging parts, average fault-free time is over 150 thousands hours;
- Optical in: SC/APC, Optical out: SC/UPC, output ports have F type metric/inch screw, nut base , F base and RF to choose.
- Superior low optical power receiving, 1540-1565nm inputting, plug and play, PON insert loss ≤0.8dB
- No external power source required, no consumption, safe and energy conservation
