Sky-702 7in FPV Monitor/ Displayer Built-in 32CH 5.8G Diversity Dual Receiver with Folding Sunshade

FPV monitors/ SKY-702 Skyzone 5.8 GHz 32 channels Diversity Monitor LCD


Product Description:
Description for FPV monitor SKY-702 skyzone 5.8 GHz Diversity Monitor LCD : fpv monitor

The new SKY-702 upgrade FPV diversity monitor: Convenient bright 7" SKY-702 FPV monitor with a D58-2 diversity built inside, and 702 has a very important feauture for FPV user, it NEVER have 'BLUE SCREEN' problem.
This 5.8GHz Diversity LCD Screen offers the perfect solution for any 5.8GHz FPV system. It features its own in-built 2CH 5.8GHz A/V receiver, allowing it to receive directly from your FPV model's A/V transmitter! This means it can eliminate the need for expensive FPV goggles, or can be used simply as a way to display your FPV model's video for others to view as you fly.

Offering true 5.8GHz diversity, this device features automatic antenna switching to provide the best reception possible. A foldable screen sunhood is included to optimize viewing in bright conditions.

Specification for FPV monitor SKY-702 skyzone 5.8 GHz Diversity Monitor LCD : fpv monitor
1. Screen size:7” fpv monitor
2. Screen type: TFT LCD Screen/long life, LED backlight
3. Resolution: 800*480
4. Brightness: 450cd/m2
5. Contrast: 500:1
6. View Angle: 140/120degree (Horizontal/Vertical)
7. Working Voltage: DV 7-12V(center positive) or 11.1V Li-battery
8. Power Consumption: < 8w
9. Size: 180mm x 120mm x 23mm
10. Antenna Connection: SMA
11. Built-in 5.8Ghz Dual diversity receiver automatically for best reception
12. Built-in 1CH 5.8Ghz AV output and 1CH AV input
13. Working temperature: -10°C~+ 65 °C

Features: v onitor

1. Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching

2. Not affect by 2.4GHz R/C Radios

3. AV Receiver with Diversity inputs

4. Small, light weight, durable

5. No Blue Screen

6. Folding sunshade

7. 2 DC port

8. 4 Bands and total 32 Channels

Band Selection and Resulting Frequencies

· CH1: 5705MHz   CH1: 5733MHz    CH1: 5865MHz CH1: 5740MHz

· CH2: 5685MHz   CH2: 5752MHz     CH2: 5845MHz     CH2: 5760MHz

· CH3: 5665MHz   CH3: 5771MHz     CH3: 5825MHz     CH3: 5780MHz

· CH4: 5645MHz   CH4: 5790MHz     CH4: 5805MHz     CH4: 5800MHz

· CH5: 5885MHz   CH5: 5809MHz     CH5: 5785MHz     CH5: 5820MHz

· CH6: 5905MHz   CH6: 5828MHz     CH6: 5765MHz     CH6: 5840MHz

· CH7: 5925MHz   CH7: 5847MHz     CH7: 5745MHz     CH7: 5860MHz

CH8: 5945MHz   CH8: 5866MHz     CH8: 5725MHz     CH8: 5860MHz

Package Included: v monitor

• LCD Recevier * 1
• Antennas * 2
• AV Cables * 2
• Power Cable * 1
• Sunshade * 1

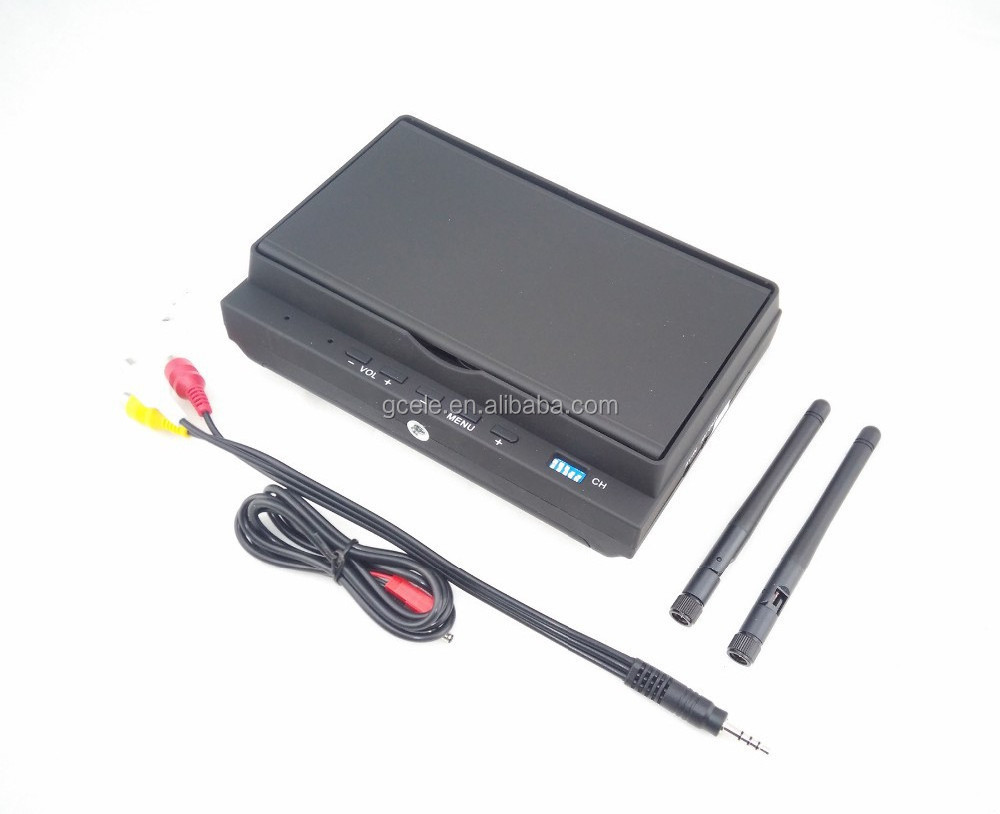

HD Picture shows:
