- Product Details
- {{item.text}}
Quick Details
-
Rated Voltage:
-
400V/230V
-
Rated Current:
-
216A
-
Speed:
-
1500/1800rpm
-
Frequency:
-
50/60HZ
-
Speed regulation:
-
Electronic governor
-
Product name:
-
120kW biogas plant generator
-
Fuel type:
-
bio gas
-
Certificate:
-
CE ISO
-
Warranty:
-
1 Year
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
NPT
-
Model Number:
-
120GFT
-
Rated Voltage:
-
400V/230V
-
Rated Current:
-
216A
-
Speed:
-
1500/1800rpm
-
Frequency:
-
50/60HZ
-
Speed regulation:
-
Electronic governor
-
Product name:
-
120kW biogas plant generator
-
Fuel type:
-
bio gas
-
Certificate:
-
CE ISO
-
Warranty:
-
1 Year

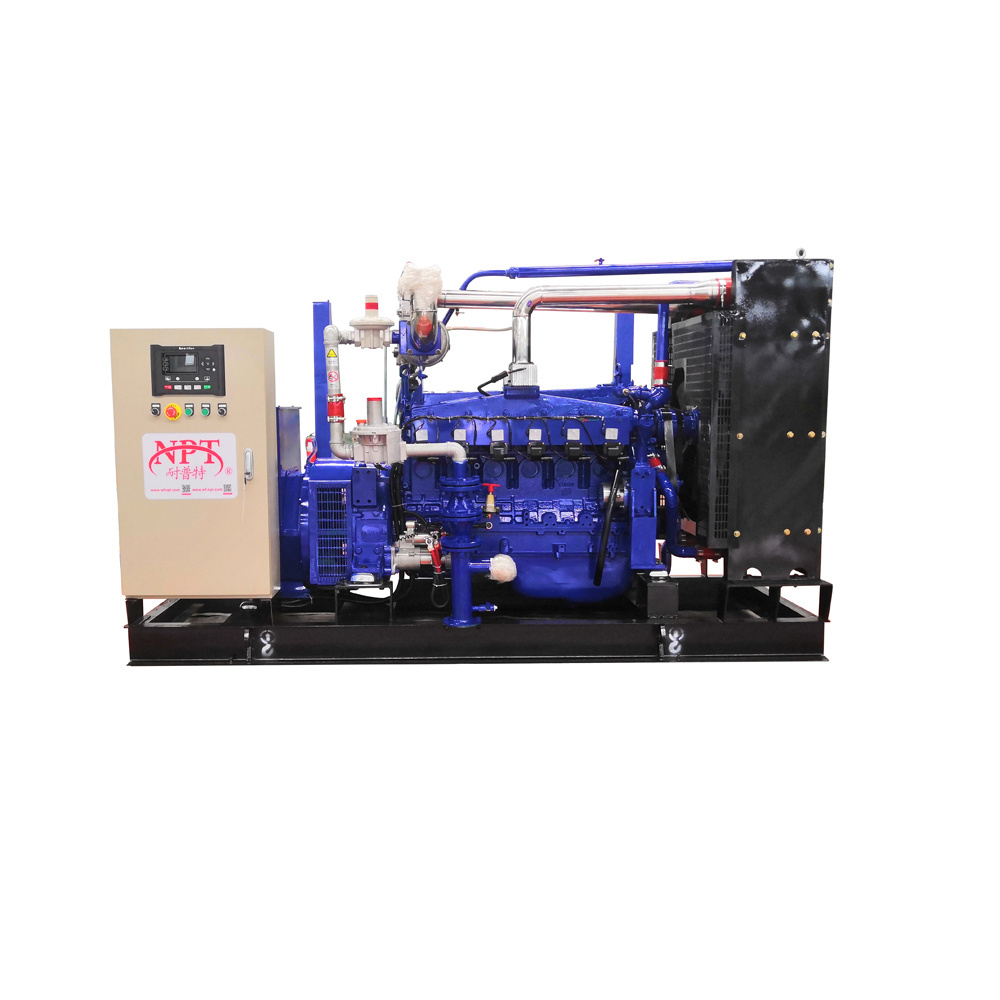

120kW biogas plant generator
1. Generator set parameter
|
Model |
120GFT |
|
Rated power |
120kW/150kVA |
|
Basics electric parameter |
50/60Hz,3 p 4 w,440V/230V |
|
Rated speed |
1500/1800rpm |
|
Power factor |
Lag0.8 |
|
Insulation Class |
H |
|
Protection Class |
IP23 |
|
Gross Weight |
1390kg |
|
Dimension(L*W*H) |
2550*1000*1550mm |
2.Engine parameter
|
Engine Model |
NS118D14 |
Cylinder Qty |
6 |
|
Rated power |
140kW |
Bore*Stroke |
128*153mm |
|
Rated Speed |
1500/1800rpm |
Displacement |
11.8L |
|
Fuel gas intake pressure |
2kPa--50kPa |
Fuel gas type |
Bio gas |
|
Engine Type |
V type 4 stroke, electric control ignition, pre-mixed stoichiometryburn |
||
3.Alternator parameter
|
Brand |
MBH( Germany) |
Rated Frequency |
50/60Hz |
|
Model |
XN274FS |
Rated output |
440V/230V |
|
Rated Power |
120kW/150kVA |
Exciting Mode |
Self-Excited,Brushless |
|
Rated current |
216A |
Voltage Regulation |
AVR |
4.Genset Controller introduction
|
Main Protection Function |
Main Displayed Parameter |
||
|
Fail to start |
Over speed |
L-L&L-N voltage |
Speed and running hours |
|
Low engine oil pressure |
High engine temperature |
Rated outputload current |
Engine oil temperature |
|
Generator low frequency |
Generator high frequency |
Frequency |
Engine oil pressure |
|
Generator low voltage |
Generator high voltage |
Load power |
Coolant temperature |
If you need other gas type or power , please contact us. Click here
