Quick Details
-
Model Number:
-
TC-460
-
Products name:
-
Veterinary Cone Beam Computed Tomography
-
Power Source:
-
Electric
-
Material:
-
Plastic
-
Quality Certification:
-
CE ISO
-
Instrument classification:
-
Class II
-
Power capacity:
-
Not less than 3.5 kVA
-
Bed size:
-
1850mm*550mm*730mm, deviation±5%
-
Scanning frame size:
-
1670mm*810mm*1600mm, deviation±5%
-
Bed surface translation range:
-
0~800mm deviation±5%
-
Bed lifting range:
-
0~150mm deviation±5%
Quick Details
-
Properties:
-
Medical Diagnosis
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
EURVET
-
Model Number:
-
TC-460
-
Products name:
-
Veterinary Cone Beam Computed Tomography
-
Power Source:
-
Electric
-
Material:
-
Plastic
-
Quality Certification:
-
CE ISO
-
Instrument classification:
-
Class II
-
Power capacity:
-
Not less than 3.5 kVA
-
Bed size:
-
1850mm*550mm*730mm, deviation±5%
-
Scanning frame size:
-
1670mm*810mm*1600mm, deviation±5%
-
Bed surface translation range:
-
0~800mm deviation±5%
-
Bed lifting range:
-
0~150mm deviation±5%
|

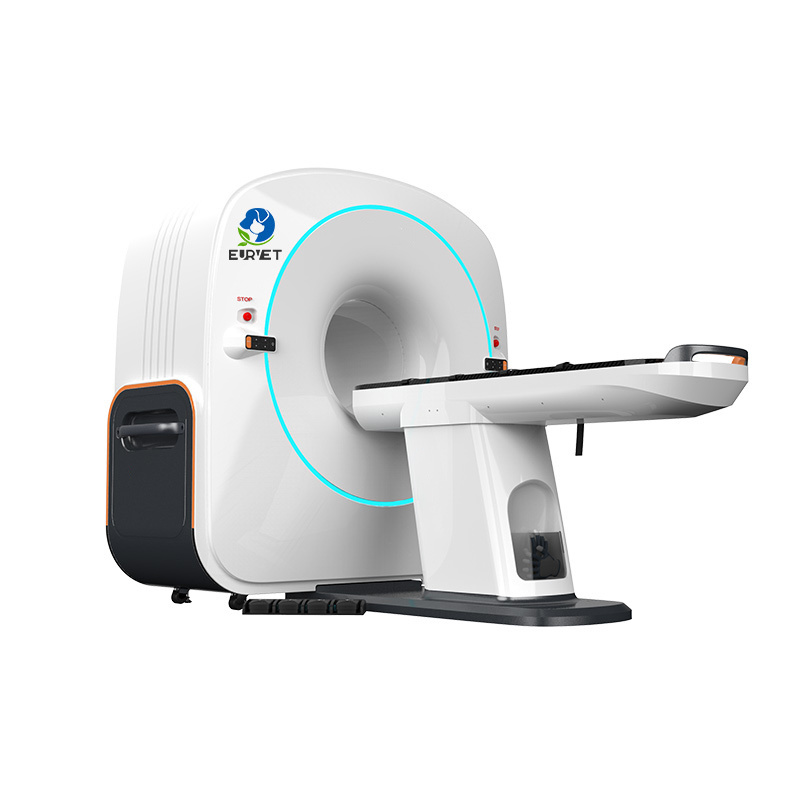

EURVET Best Ct Scan Machine Animal Computer Tomography 16 Slice Vet Ct Scan Machine Price Pet 32 Slice Ct Scan Machine
|
|
|
||
|
Configuration
|
|
TC-460
|
||
|
Power requirements
|
Input voltage
|
Single phase AC220V
|
||
|
|
Supply frequency
|
50Hz
|
||
|
|
Power capacity
|
Not less than 3.5 kVA
|
||
|
Mechanical capacity
|
Bed size
|
Length, width and height: 1850mm×550mm×730mm, deviation±5%
|
||
|
|
Scanning frame size
|
Length, width and height: 1670mm×810mm×1600mm, deviation±5%
|
||
|
|
Bed surface translation range
|
0~800mm deviation±5%
|
||
|
|
Bed lifting range
|
0~150mm deviation±5%
|
||
|
|
Bearing
|
50kg
|
||
|
Electric power
|
Maximum pulse fluoroscopic output electrical power
|
1.875kW(15mA,125kV,10s)
|
||
|
|
Maximum continuous fluoroscopic output electrical power
|
1.5kW(12mA,125kV,20s)
|
||
|
|
Standard pulse fluoroscopy output electrical power
|
1.6kW(16mA,100kV,10s)
|
||
|
|
Maximum continuous fluoroscopic output electrical power
|
1.4kW(14mA,100kV,20s)
|
||
|
Loading factors and control
|
Tube voltage/kV
|
50kV~125kV, adjust as per levels, adjustable steps of 1kV, deviation ≤±10%
|
||
|
|
Tube current/mA
|
1mA~16mA, adjust as per levels, adjustable steps of 1mA, accuracy conforms to ±1mA
|
||
|
|
Loading time/ms
|
24s, based on external trigger loading time
|
||
|
Imaging performance
|
Imaging size
|
307.2mm×245.7mm
|
||
|
|
Spatial resolution
|
≥1.7lp/mm
|
||
|
|
Imaging time
|
≤40s
|
||
Exclusive Scanning and lmaging System
For High-resolution lmages
Dynamic Range Pixel Array Detector
Amorphous Silicon Cesium lodide
Active area: 25 cm x 30 cm, pixel pitch: 120 um
Lossless image reconstruction: Large-angle cone beam, true isotropic voxel
(identical length, width and height), and zero loss of axial image details
A slice thickness of 0.24 mm, high spatial resolution, and rich details
Amorphous Silicon Cesium lodide
Active area: 25 cm x 30 cm, pixel pitch: 120 um
Lossless image reconstruction: Large-angle cone beam, true isotropic voxel
(identical length, width and height), and zero loss of axial image details
A slice thickness of 0.24 mm, high spatial resolution, and rich details
Storage Room
A handy space for medical supplies
Table Moving by One Touch
Motorized pushing, lfting and lowering
V-shaped Mattress and Auxiliary Belt
ldeal for the immobilization of animals
