Quick Details
-
Screw Speed (rpm):
-
34.7 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Romeroca/ other
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
25M*3M*3M
-
Power (kW):
-
310
-
Weight:
-
20000 KG
-
Automatic Grade:
-
semi-automatic
-
Raw material:
-
Video technical support
-
Usage:
-
Field installation, commissioning and training
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
Unapplicable
-
Screw diameter (mm):
-
188 mm
-
Screw Speed (rpm):
-
34.7 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Romeroca/ other
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
25M*3M*3M
-
Power (kW):
-
310
-
Weight:
-
20000 KG
-
Automatic Grade:
-
semi-automatic
-
Raw material:
-
Video technical support
-
Usage:
-
Field installation, commissioning and training
Product Description

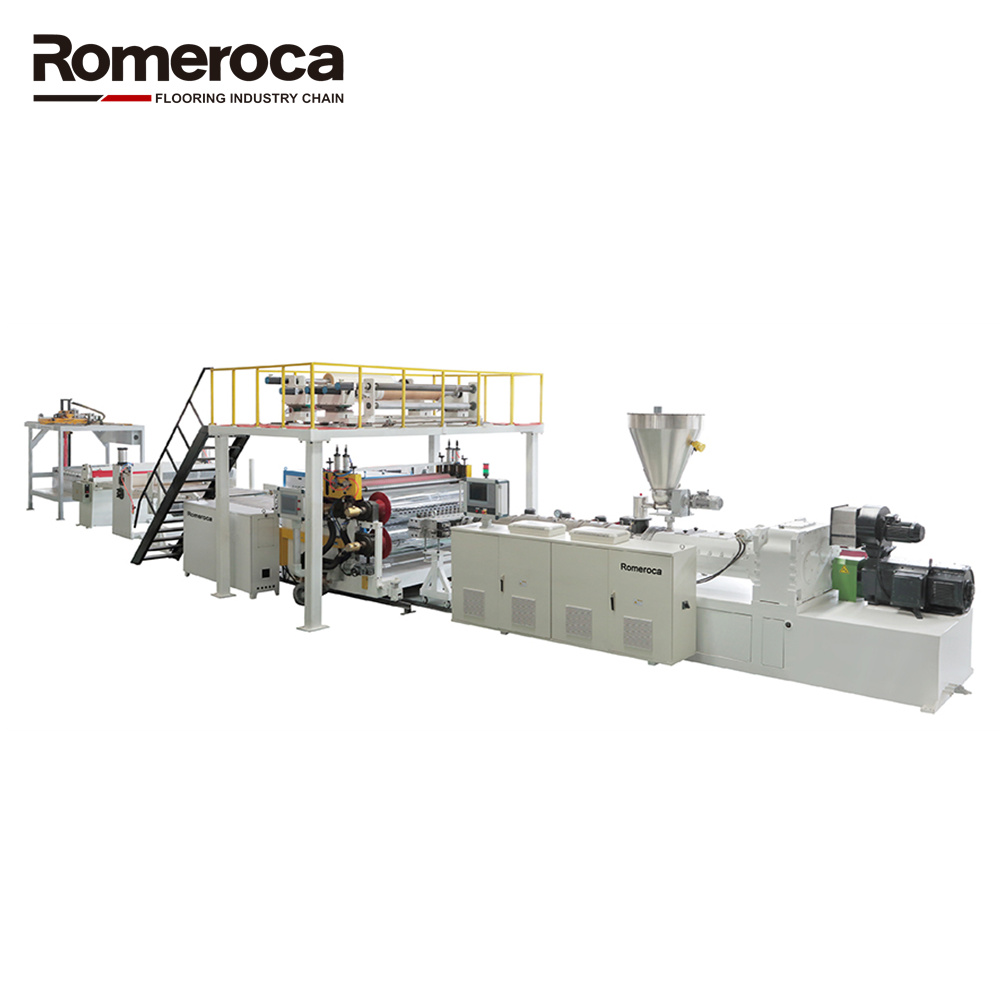

SPC FLOORING PRODUCTION LINE
EXTRUSION MACHINE
|
Model:
|
RFS-Z110/220
|
|
Brand:
|
Romeroca
|
|
Capacity:
|
25000-28000(kg/24h)
|
|
Power:
|
460KW
|
Features of Romeroca SPC Flooring Extrusion Line:
-- Patent design, over 10 years' extrusion and lamination production experience.
-- Energy saving, high efficient and stable.
-- Easy replacement of embossing roller.
-- Easy operation and maintenance and QC checking.
-- Better plasticization and more peel strength, because of our patent lamination system.
-- No waste during change overlay and decor film.
-- Good performance on shrinkage and bending after extrusion.
-- Make sure good performance and be even on embossing depth.
-- Make special design for SPC flooring production and offer turn-key project.
-- Patent design, over 10 years' extrusion and lamination production experience.
-- Energy saving, high efficient and stable.
-- Easy replacement of embossing roller.
-- Easy operation and maintenance and QC checking.
-- Better plasticization and more peel strength, because of our patent lamination system.
-- No waste during change overlay and decor film.
-- Good performance on shrinkage and bending after extrusion.
-- Make sure good performance and be even on embossing depth.
-- Make special design for SPC flooring production and offer turn-key project.
Romeroca extrusion machine is the most important process of SPC flooring producing. The extruder converts the mixed raw materials into the SPC core layer by the double-cone screw and T-die, and laminating the wear-resistant layer and decor film on the core layer with four-roller or five-roller calendering, and finally form the SPC flooring big board. Romeroca SPC flooring extruder, manufacturered from the China biggest extruder machine factory, is Top 1 selling in Vietnam and China, also very popular in global
market.
market.
EXTRUSION MACHINE INFORMATION
|
Extruder Model
|
RFS-Z92/188
|
RFS-Z110/220
|
RFS-Z92/188&
RFS-Z80/156 For coex |
|
Capacity (kg/24h)
|
14000-18000
|
25000-28000
|
17000-20000
|
OVERSEAS CASES OF EXTRUSION MACHINE
What we are offering about SPC flooring project?
1.SPC flooring full production line:
SPC flooring Extruder machine, Mixer, Crushing & Mill machine, UV coating machine, Click slotting machine,Cutting machine, V-groove painting machine, IXPE/EVA lamination machine, Packing machine.
2.Raw materials for producing rigid core PVC flooring:
Chemicals: PVC SG5, stabilizer, ACR , CPE , PVC lubricant, PE wax.
Wear- resisting layer , PVC decor Film , IXPE/EVA underlayment, UV paint.
Romeroca already supplied 20 million meters of PVC decor film to global market.
To save shipping cost for our partners, Romeroca can mix different raw materials to ship together.
3.Spare parts for SPC flooring manufacturing line:
PCD cutters, PCD saw blades, Extruder mould, surface rollers, Screw & barrel, UV rollers, UV lamps.Romeroca can supply all kinds of accessories for all machines of rigid core vinyl flooring production.
4.Test equipments for SPC flooring factory:
Romeroca can supply all kinds of test equipments that SPC flooring manufacturing factory needs. For example: Drying Oven, Tensile tester, Wear tester, Scratch Tester, Click Strengthen tester, Click Projector, and so on.
Full production processes of SPC flooring
1. Crushing + Milling
During the SPC production process， it will generate some fragment waste materials. The Crusher and Miller can be used to crush and grind these SPC waste materials into powder, which can be recycled into the raw materials for the production of SPC. The recycled SPC material is also a necessary ingredient in the raw material ratio.
2. Mixing
Put the raw materials into a high-speed mixer for hot mixing according to a certain ratio, so that the various materials are mixed uniformly, and the moisture in the materials is removed, and then enter the cold mixer to cool the materials to prevent agglomeration and discoloration. The materials are mixed uniformly by cooling.
3. Extrusion
The mixed materials are put into the extruder, extruded by twin cone screw, and formed into sheet shape through the die. Then through four-roller/five-roller calendering unit, the wear-resistant layer and color film are laminated on the sheet by heat, to form the SPC board.
4. UV coating
A layer of UV paint is coated on the surface of the SPC board by the UV coating machine, which has the functions of preventing dust, scratching, increasing abrasion resistance, and making the glossy more uniform.
5. Cutting
Use automatic multiple ripsaw to cut the big SPC board into the small planks of the required size.
6. Slotting
Through the longitudinal and transverse double-end tenoner slotting machine, four sides edges of the SPC plank after cutting are processed into certain lock shape. The important thing is that need to choose the suitable click system and the perfect Polycrystalline diamond (PCD) click profiling cutters.
7. V-groove Painting
In global market some customers prefer to the edges of SPC flooring to be V-groove and painted with paint, similar to the edges of laminate flooring. They think this kind of flooring looks nicer. Of course, this is an optional working process.
8. IXPE/ EVA underlay laminating
Use hot melt adhesive to stick IXPE /EVA underlay on the back of the SPC flooring, which can make the flooring have better sound insulation effect and better walk feeling. Such products are more high-end.
9. Packing
Choose packing machine with different degrees of automation according to your needs, and there are fully automatic and
semi-automatic machines can be optional.
During the SPC production process， it will generate some fragment waste materials. The Crusher and Miller can be used to crush and grind these SPC waste materials into powder, which can be recycled into the raw materials for the production of SPC. The recycled SPC material is also a necessary ingredient in the raw material ratio.
2. Mixing
Put the raw materials into a high-speed mixer for hot mixing according to a certain ratio, so that the various materials are mixed uniformly, and the moisture in the materials is removed, and then enter the cold mixer to cool the materials to prevent agglomeration and discoloration. The materials are mixed uniformly by cooling.
3. Extrusion
The mixed materials are put into the extruder, extruded by twin cone screw, and formed into sheet shape through the die. Then through four-roller/five-roller calendering unit, the wear-resistant layer and color film are laminated on the sheet by heat, to form the SPC board.
4. UV coating
A layer of UV paint is coated on the surface of the SPC board by the UV coating machine, which has the functions of preventing dust, scratching, increasing abrasion resistance, and making the glossy more uniform.
5. Cutting
Use automatic multiple ripsaw to cut the big SPC board into the small planks of the required size.
6. Slotting
Through the longitudinal and transverse double-end tenoner slotting machine, four sides edges of the SPC plank after cutting are processed into certain lock shape. The important thing is that need to choose the suitable click system and the perfect Polycrystalline diamond (PCD) click profiling cutters.
7. V-groove Painting
In global market some customers prefer to the edges of SPC flooring to be V-groove and painted with paint, similar to the edges of laminate flooring. They think this kind of flooring looks nicer. Of course, this is an optional working process.
8. IXPE/ EVA underlay laminating
Use hot melt adhesive to stick IXPE /EVA underlay on the back of the SPC flooring, which can make the flooring have better sound insulation effect and better walk feeling. Such products are more high-end.
9. Packing
Choose packing machine with different degrees of automation according to your needs, and there are fully automatic and
semi-automatic machines can be optional.
