Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
No. of Spindles:
-
Single or Multi (Customizable)
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
6
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GXUCNC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3200*2140*1850mm
-
Power (kW):
-
10
-
Weight (KG):
-
1500
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Running speed:
-
40m/Min
-
Processing precision:
-
±0.05MM
-
Registration accuracy:
-
±0.02MM
-
Running mode:
-
Stepper (Leadshine 860 drive )
-
Compatible software:
-
Type3/Arcam/Proe/UG etc
-
Table:
-
Vacuum adsorption table or Aluminium T.Slot table
-
Oil pump:
-
handle oil pump
-
After Warranty Service:
-
Online or go on-site
-
Certification:
-
CE
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
No. of Spindles:
-
Single or Multi (Customizable)
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
6
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GXUCNC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3200*2140*1850mm
-
Power (kW):
-
10
-
Weight (KG):
-
1500
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Running speed:
-
40m/Min
-
Processing precision:
-
±0.05MM
-
Registration accuracy:
-
±0.02MM
-
Running mode:
-
Stepper (Leadshine 860 drive )
-
Compatible software:
-
Type3/Arcam/Proe/UG etc
-
Table:
-
Vacuum adsorption table or Aluminium T.Slot table
-
Oil pump:
-
handle oil pump
-
After Warranty Service:
-
Online or go on-site
-
Certification:
-
CE
Machine datails
|
Working Area
|
1300x2500mm
|
Repeat position accuracy
|
±0.01mm
|
|
Total Spindle Power
|
6.0Kw
|
Drive motor
|
Servor Motor
|
|
Running Speed
|
40m/Min
|
Power supply
|
AC380/50Hz
|
|
Processing Accuracy
|
±0.01mm
|
N.W.
|
1500Kg
|

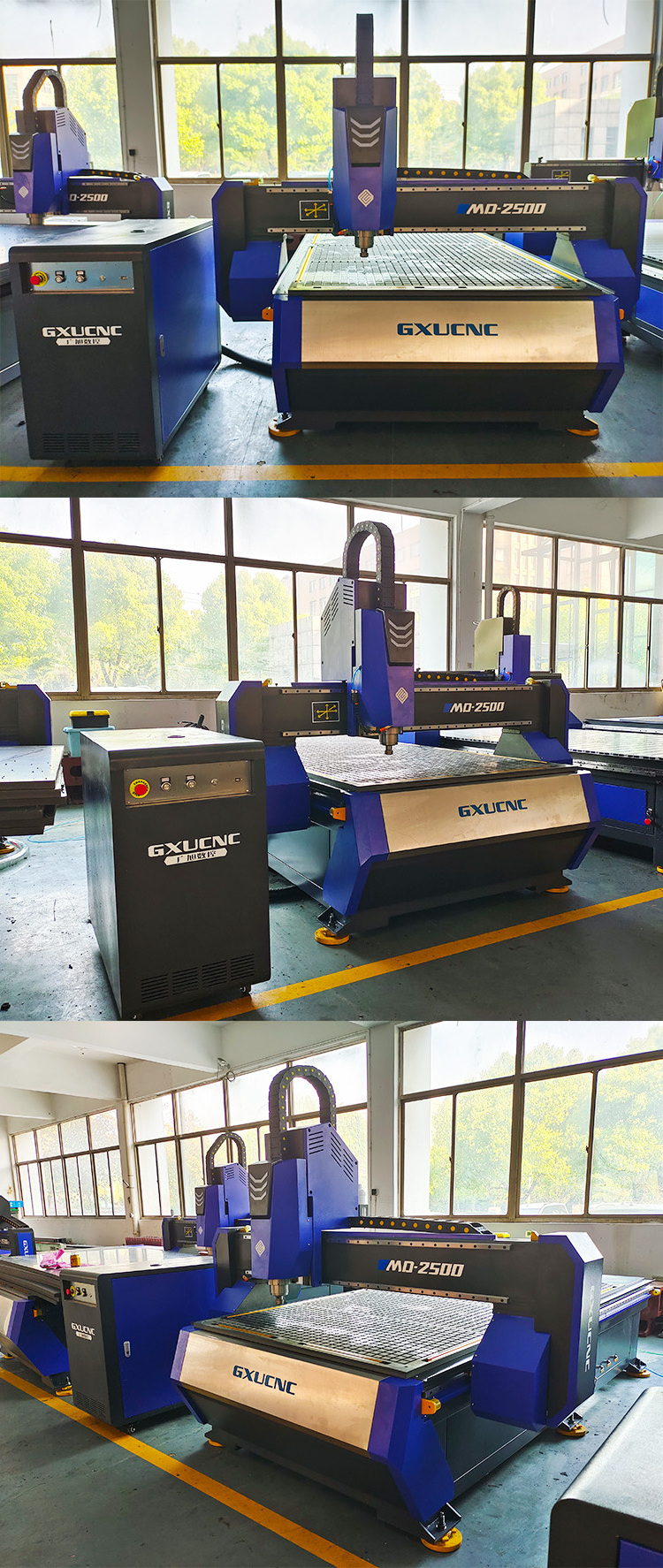

Muti- function CNC Engraving Machine
Application：
Suitable for wood, acrylic, aluminum, copper, plastic, and carbon fiber composite materials, carving and milling,
widely used in soft metal and sheet metal processing areas
.

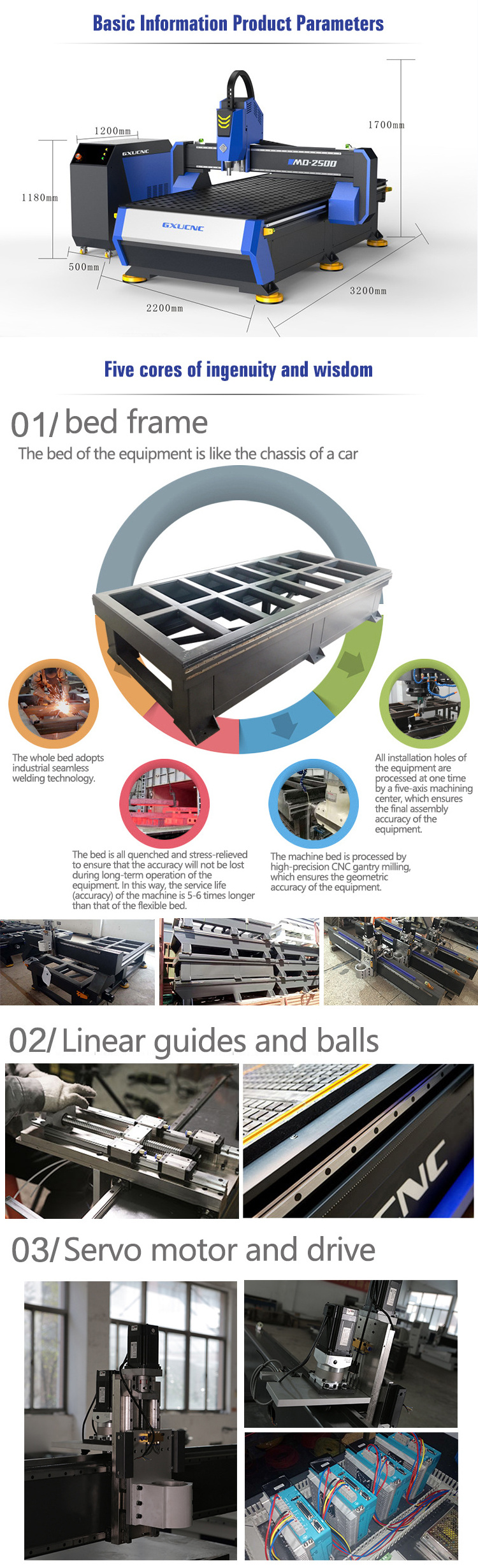

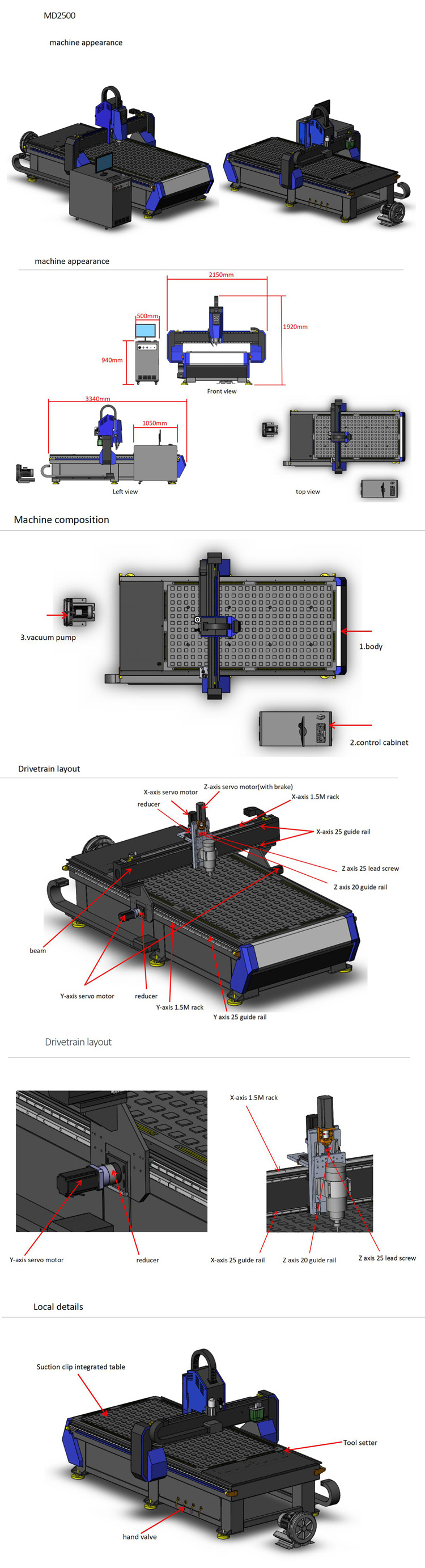

Machine features ：
1.
MD2500 adopt
T-style body structure and crossbeam transmission design
, main body with Industrial welding technology, quench dealing method and then with high precision milling maching to build. All the accessories are all made one time by 5 axis machining center to ensure machine's rigidity and accuracy.
2.
X, Y-axis with
imported high-precision rack
,
Z-axis
with
imported high-precision grinding grade ball screw.
3.
Spindle
with
high precision, high speed, constant torque, low beating, strong stability, long lifetime
characteristics.
4.
Supporting
G code and PLT code format generated by Type 3, MASTERCAM, CASMATE, Artcam, AUTOCAD, UG, CorelDraw and other
CAD / CAM software
.
Equipped with a water jet for easy cleaning
lubrication system,which make the machine maintenance easier
Machine punch,the machine moves smoothly
Equipped with a reducer, the machine has high working accuracy
Rail parallelism calibration
Lead screw and guide rail parallelism calibration
1.
100% quality testing, that is, each machine has been tested strictly in mechanical assembling and performing before delivery;
2. 100% sample testing, that is, each machine has been tested by the processed sample before delivery;
2. 100% sample testing, that is, each machine has been tested by the processed sample before delivery;
