Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RY
-
Model Number:
-
RY-BNC-585960
-
Plating:
-
nickel,gold
-
body Material:
-
brass
-
Certificate:
-
ROHS
-
Contacts:
-
Gold-plated Brass Alloy
-
samples:
-
available
-
VSWR:
-
2
-
Impedance:
-
50 ohm
-
Product name:
-
Plug
Quick Details
-
Type:
-
BNC
-
Application:
-
RF
-
Gender:
-
Male
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RY
-
Model Number:
-
RY-BNC-585960
-
Plating:
-
nickel,gold
-
body Material:
-
brass
-
Certificate:
-
ROHS
-
Contacts:
-
Gold-plated Brass Alloy
-
samples:
-
available
-
VSWR:
-
2
-
Impedance:
-
50 ohm
-
Product name:
-
Plug
Plug

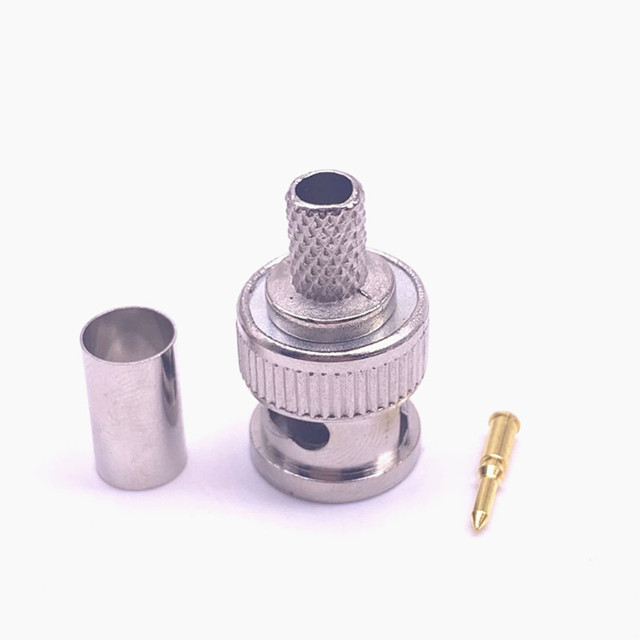

BNC Male Crimp Cable Connector/CCTV Plug Mini BNC RG58 RG59 Cable Connectors
Specification
|
Interface |
SMA/SMB/SMC/BNC/TNC/MMCX/UHF...etc |
|
|
Electrical |
||
|
Characteristic Impedance |
50ohm |
|
|
Frequency Range |
DC-12GHz |
|
|
VSWR |
≤1.15@DC-3000MHz |
|
|
Insertion Loss |
≤0.10dB |
|
|
Durability |
Mating cycles ≥500 |
|
|
Material and Plating |
||
|
Parts Name |
Material |
Plating |
|
Body |
Brass |
AU/NI |
|
Insulator |
PTFE |
— |
|
Center Conductor |
Phosphor Bronze |
Au |
|
Coupling Nut |
Brass |
Au |
|
Gasket |
Silicone Rubber |
— |
|
Environmental |
||
|
Operating Temperature |
-40℃-85 ℃ |
|
|
Weatherproof Rate |
IP65 |
|
Feature
Our this product line features popular coaxial cable, RF connectors, RF cable and other high quality coaxial products such as SMA connectors, coax adapters, and tools.
RF Coaxial cable assemblies are available in 50 Ohm and 75 Ohm styles. In addition, We stocks hundreds of low loss 50 Ohm antenna RF cable assemblies, pigtails and bulk cable for all your wireless connectivity needs.
Coax interfaces include: BNC, SMA, TNC, Type F, RCA, SMB, MCX, MMCX, Type-N, and more. We carry coax RF connectors and tools such as cable strippers, coaxial crimp tools, compression tools, and pin crimp tools to accommodate all of your coaxial termination requirements.
