Ultrasonic Sensor for Distance Measurement Depth Transducer 500khz

Ultrasonic Sensor for Distance Measurement Depth Transducer 500khz

FOB Reference Price: Get Latest Price

≥1 Pieces

US $40

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: CNIRHurricane

Usage:: Position Sensor

Theory:: Ultrasonic Sensor

Output:: Digital Sensor

model:: TD0500KA

Center resonant frequency:: 500KHZ±3%

Electrostatic capacitance:: 2000pf±20%

Material:: ABS

Minimum parallel impedance:: 50Ω±30%

protection class:: IP68

Operating temperature:: -20 ~70℃

Quick Details

Model Number:: TD0500KA

Type:: TD0500KA

Place of Origin:: Guangdong, China

Brand Name:: CNIRHurricane

Usage:: Position Sensor

Theory:: Ultrasonic Sensor

Output:: Digital Sensor

model:: TD0500KA

Center resonant frequency:: 500KHZ±3%

Electrostatic capacitance:: 2000pf±20%

Material:: ABS

Minimum parallel impedance:: 50Ω±30%

protection class:: IP68

Operating temperature:: -20 ~70℃

500KHz depth measurement waterproof underwater fish finder ultrasonic transducer

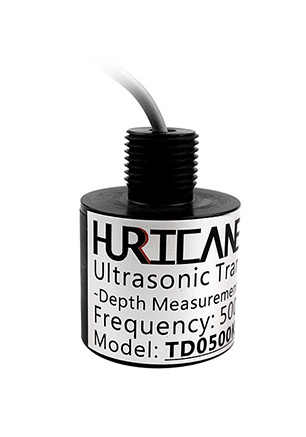

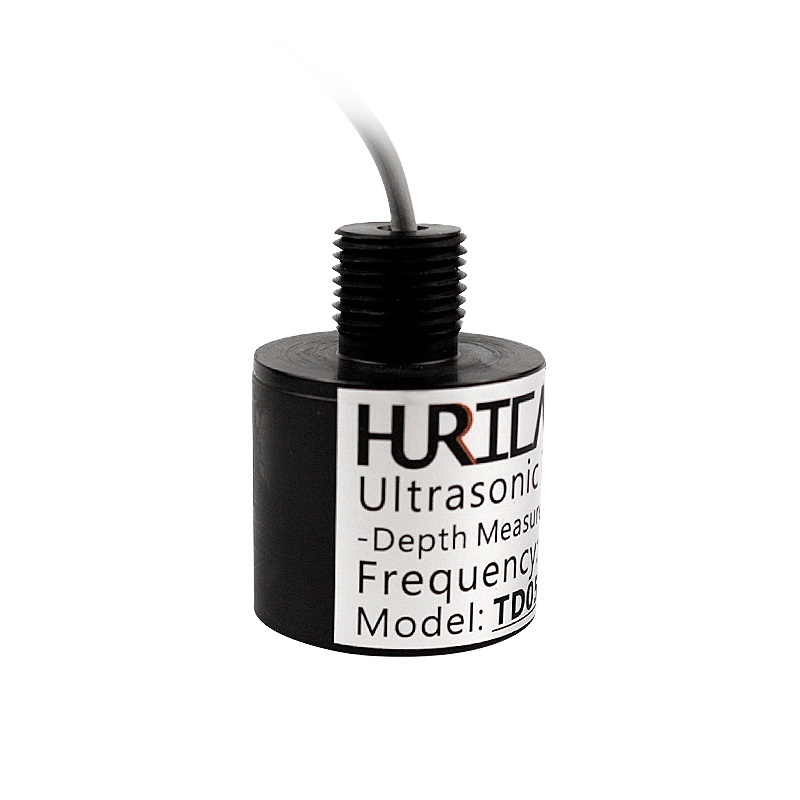

500Khz Ultrasonic Depth Transducer
	Model	TD0500KA
»	Centra Working Frequency	500Khz±3%
»	Bandwidth	10%
»	Material	PZT-4, PZT-8
»	Beam sngle	6°
»	Parallel resistance(minimun)(Ω)	50±30% Ω
»	Static capacitance(pf)	2000±15%
»	working voltage	<600v
»	MWP	1.6MPa
»	Operating Temperature	-20 to 70°C
»	Case Material	ABS
»	IP Level	IP68


Ultrasonic Distance/Level Sensor with Digital Output	Bottom-mounted Ultrasonic Fuel Level Sensor with Digital Output	Ultrasonic Depth Transducers in Liquid

500Khz Ultrasonic Depth transducer for Long Distance Measurement

Sensor Application

» fish finder
» Depth measurement
» Avoiding Obstacles

Question 1: What’s the lead-time of the ultrasonic transducer/sensors?
--- [CNIRHurricane’ Answer] : Samples could be ready in 1hours -5working days normally. For big orders, please contact our sales departments.

Question 2: How can I get samples or place orders for the distance ultrasonic sensor?
--- [CNIRHurricane’ Answer] :

You could place order on Alibaba directly.
For some products, FREE samples are available.
If any questions, contact our sales department or after services department.

Question 3: What’s the MOQ of ultrsonic distance sensor?
--- [CNIRHurricane’ Answer] :

For Flow Sensors/Transducers, it works in pair normally. MOQ: 2pcs
For other products, MOQ: 1pcs
OEM products, MOQ is negotiable

Question 4: What’s the Warranty?
--- [CNIRHurricane’ Answer] : 12month normally. It is negotiable.

Question 5: I want to have a company/factory audit, How could I get there?
--- [CNIRHurricane’ Answer] : Welcome to visit us anytime. You could fly to Shenzhen, we will pick you up. Or Contact our sales/after services department for any assistant.

Question 6: What’s your Quality Control System?
--- [CNIRHurricane’ Answer] : Approval with ISO9001- Quality management.
