Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Diameter:
-
22
-
Rated Speed:
-
3340
-
Usage:
-
Industrial
-
Function:
-
Control
-
Phase:
-
Three Phase
-
Speed:
-
High Speed
-
Shape:
-
Tubular
Quick Details
-
Speed(RPM):
-
3340RPM
-
Continuous Current(A):
-
180mA
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Jiangsu, China
-
Diameter:
-
22
-
Rated Speed:
-
3340
-
Usage:
-
Industrial
-
Function:
-
Control
-
Phase:
-
Three Phase
-
Speed:
-
High Speed
-
Shape:
-
Tubular

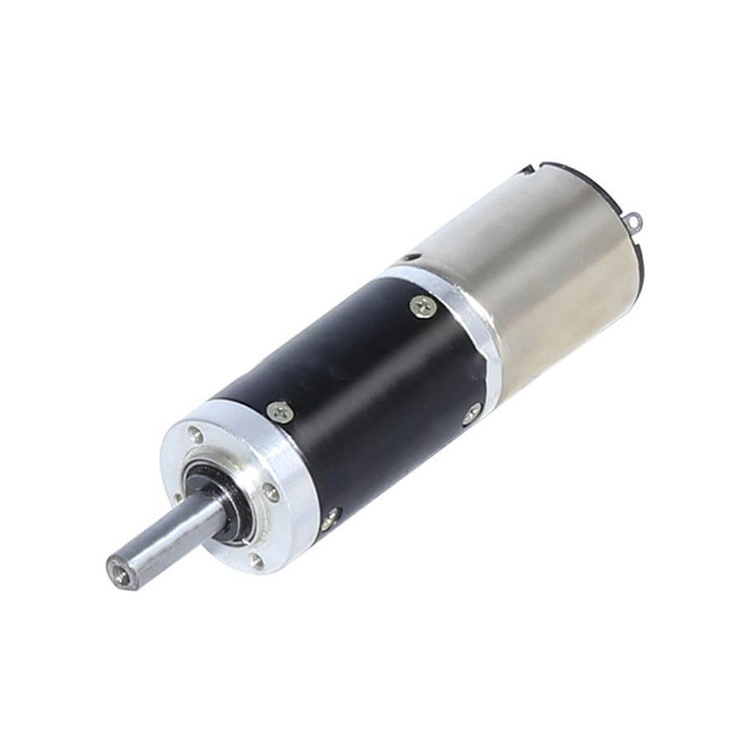

PM DC Planetary Gear Motor ( Ring G ear Material: Metal and P owder metal )
22JX10K-22ZY38B
22 mm OD Planetary Gearbox
Permissible Load Range: 0. 05 N.m~ 0.5 N.m
D imensions
Motor Technical Data
|
TYPE |
|
|
|
|
|
||||
|
|
Rated voltage |
No-load speed |
No-load current |
Rated speed |
Rated torque |
Output power |
Rated current |
Stall torque |
Stall current |
|
|
VDC |
r/min |
mA |
r/min |
mN.m |
W |
mA |
mN.m |
A |
|
22ZY38B-1260 |
12 |
6000 |
100 |
5000 |
3 |
1.56 |
250 |
17 |
0.87 |
|
22ZY38B-12100 |
12 |
10000 |
150 |
8700 |
3 |
2.7 |
500 |
28 |
2.3 |
Gear motor Technical Data
