Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EXCALIBUR
-
Dimension(L*W*H):
-
520*560*635mm
-
Weight:
-
83
-
Rated power/speed:
-
25HP/3600RPM
-
Product name:
-
Diesel Engine
-
Engine type:
-
SV292F
-
Fuel:
-
Diesel
-
Starting system:
-
Electric Starter
-
Bore*Stroke:
-
2-92mm*75mm
-
Max Output Power:
-
25HP
-
Net weight:
-
83kg
-
Fuel tank capacity:
-
13L
-
Cooling System:
-
Air cooled
-
Engine Speed:
-
3600rpm
Quick Details
-
Displacement:
-
Other
-
Emission Standard:
-
EURO 5
-
Power:
-
18.6 kW, 25HP
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EXCALIBUR
-
Dimension(L*W*H):
-
520*560*635mm
-
Weight:
-
83
-
Rated power/speed:
-
25HP/3600RPM
-
Product name:
-
Diesel Engine
-
Engine type:
-
SV292F
-
Fuel:
-
Diesel
-
Starting system:
-
Electric Starter
-
Bore*Stroke:
-
2-92mm*75mm
-
Max Output Power:
-
25HP
-
Net weight:
-
83kg
-
Fuel tank capacity:
-
13L
-
Cooling System:
-
Air cooled
-
Engine Speed:
-
3600rpm
Products Description

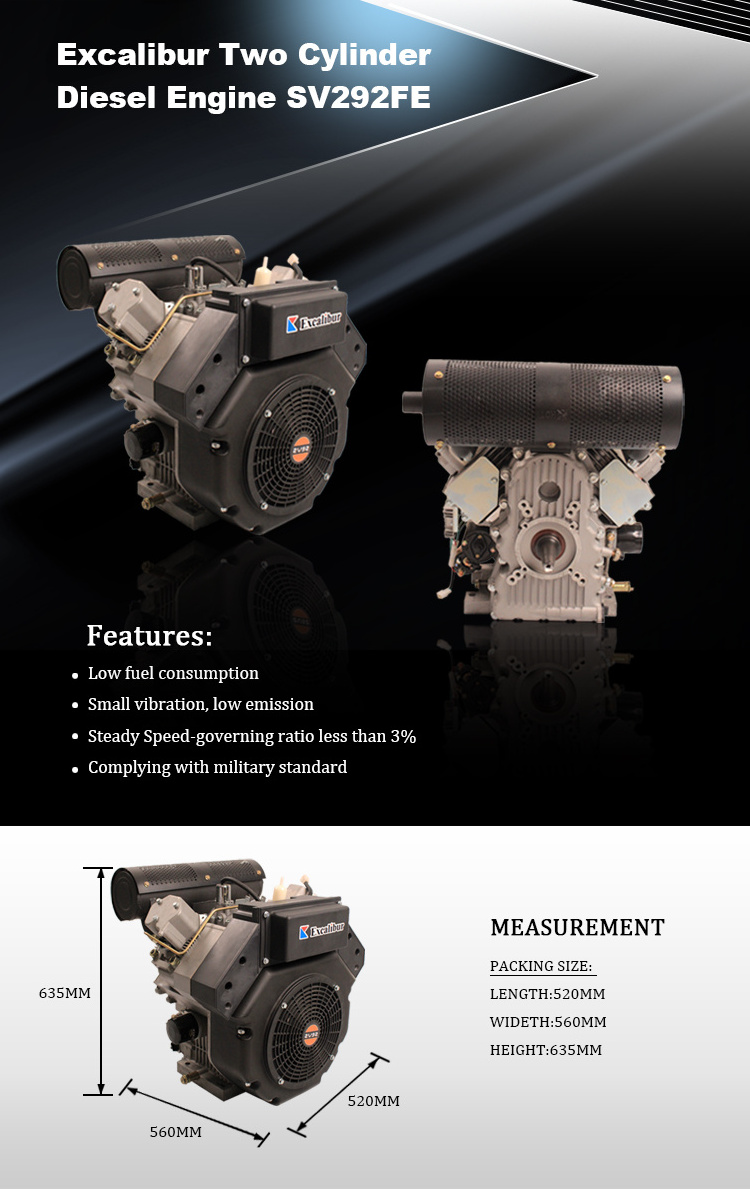

Excalibur 4-stroke, air cooled, Diesel Engine can be widely used in many application such as construction site by powering the Road Roller, Tamping Rammer, Scarifying Machine, Concrete Cutter, Power Trowel; also can be used as the power for weldering generator, water pumps, power tillers etc.
Spare Parts options
|
Model
|
S173F(E)
|
S178F(E)
|
S186F(E)
|
S186FA(E)
|
S188FB(E)
|
SV292F
|
|||||
|
Type
|
Single cylinder, 4-stroke, air cooled, vertical
|
|
|
|
|
|
|||||
|
Bore*stroke(mm)
|
73*58
|
78*62
|
86*70
|
86*72
|
88*75
|
2-92*75
|
|||||
|
Displacement(cc)
|
243
|
296
|
406
|
418
|
456
|
997
|
|||||
|
Combustion system
|
direct injection
|
|
|
|
|
|
|||||
|
Rated output kw(HP)/rpm
|
3.5(4.8)/3000 3.8(5.2)/3600
|
3.8(5.1)/3000 4.4(5.9)/3600
|
5.7(7.8)/3000 6.6(8.9)/3600
|
|
6.1(8.2)/3000 7.3(9.8)/3600
|
17(23)/3000
18.6(25)/3600
|
|||||
|
Max output kw(HP)/rpm
|
3.8(5.2)/3000 4.1(5.5)/3600
|
4.0(5.4)/3000 4.9(6.6)/3600
|
6.3(8.6)/3000 7.3(9.9)/3600
|
|
6.8(9.2)/3000 8.2(11)/3600
|
|
|||||
|
Fuel
|
0#(summer)/ -10#(winter)
|
|
|
|
|
|
|||||
|
Fuel tank capacity(L)
|
2.5
|
3.5
|
5.5
|
5.5
|
5.5
|
13
|
|||||
|
Lubricating oil capacity(L)
|
0.75
|
1.1
|
1.65
|
1.65
|
1.65
|
4
|
|||||
|
Lubricating system
|
Pressure splashed
|
|
|
|
|
|
|||||
|
Starting system
|
Manual / electric start
|
|
|
|
|
|
|||||
|
Packing size (mm)
|
420*380*460
|
480*460*510
|
520*455*550
|
|
520*455*550
|
520*560*635
|
|||||
|
Net weight
|
27
|
35
|
48
|
48
|
49
|
52
|
|||||
