Quick Details
-
Dimension(L*W*H):
-
L3800mm * W1400mm * H2139mm
-
Weight (KG):
-
300
-
Type:
-
Pass Though Conveyor Type
-
Working Space (L*W*H):
-
L1400mm * W1100mm * H1000mm
-
Through size(W*H):
-
L1200mm * W130mm * H2400mm
-
Abravise container:
-
3pcs(suitable for 30-320 mesh abrasive)
-
Load of Conveyor:
-
300KGS
-
Suitable air compressor:
-
55KW
-
Fan motor of dust collector:
-
5.5KW/ 380V / 50HZ
-
Drive of conveyor:
-
0.4KW Speed adjustable
-
Gun Clamp:
-
Automatic swing, speed adjustable Power 400W
-
Blast Gun:
-
16pcs ,Aluminum alloy with boron carbide nozzle
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kafan
-
Power:
-
6.8KW
-
Dimension(L*W*H):
-
L3800mm * W1400mm * H2139mm
-
Weight (KG):
-
300
-
Type:
-
Pass Though Conveyor Type
-
Working Space (L*W*H):
-
L1400mm * W1100mm * H1000mm
-
Through size(W*H):
-
L1200mm * W130mm * H2400mm
-
Abravise container:
-
3pcs(suitable for 30-320 mesh abrasive)
-
Load of Conveyor:
-
300KGS
-
Suitable air compressor:
-
55KW
-
Fan motor of dust collector:
-
5.5KW/ 380V / 50HZ
-
Drive of conveyor:
-
0.4KW Speed adjustable
-
Gun Clamp:
-
Automatic swing, speed adjustable Power 400W
-
Blast Gun:
-
16pcs ,Aluminum alloy with boron carbide nozzle
Product Description

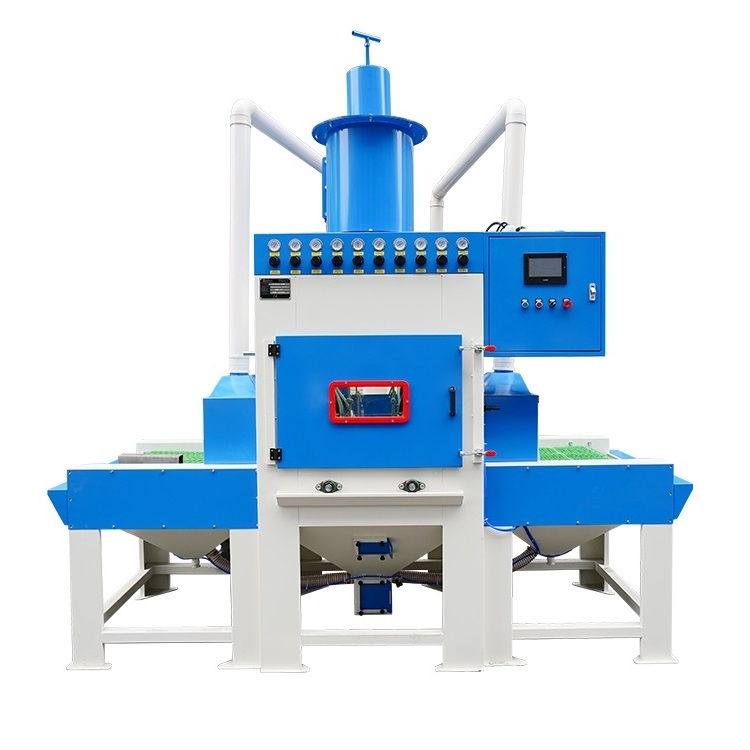

Automatic conveyor sandblasting Cabinet for wood plank
Automatic conveyor sandblasting cabinet with 16pcs automatic blast guns specially suitable for batch production of flat parts, such as aluminum plate, wood plates, computer motherboard, steel plate, etc. Cleaning, deburring, descaling, rust-removing, wood panel treating, refurbishing a lot of metal or non-metal workpieces to get a smooth and clean surface for end users, or to be the pretreatment for subsequent processing.
Automatic pass-through conveyor belt sand blasting machine, components are continuously presented to an array of pre-positioned guns as the parts are conveyed in and out of the blast chamber on an adjustable-speed steel mesh belt, 8 or up to 16 suction-blast guns are bracketed to sweep parts in linear motion synchronized with continuous movement of the belt.
Specifications
|
Model
|
KF-3810-16A
|
|
|
Type:
|
Pass Though Conveyor Type
|
|
|
Overall dimensions:
|
L3800mm * W1400mm * H2139mm
|
|
|
Working space dimension:
|
L1400mm * W1100mm * H1000mm
|
|
|
Dust collector size:
|
L1200mm * W130mm * H2400mm
|
|
|
Size of Feeding Workpiece：
|
W1000mm * H3500mm
|
|
|
Fan motor of dust collector:
|
7.5KW/380/50HZ 3phaseDust Fan Motor Power
|
|
|
Load of conveyor:
|
200kgs
|
|
|
Drive of conveyor:
|
0.75kw, speed adjustable
|
|
|
Gun glamp:
|
Automatic swing, speed adjustable, power 400W
|
|
|
Conveyor Motor:
|
0.75kw, 0-2 m/min speed adjustable
|
|
|
Blast gun:
|
16pcs, Aluminum alloy with boron carbide
nozzle, each gun could control Individually |
|
|
Abravise container:
|
3pcs(suitable for 30-150 mesh abrasive)
|
|
|
Compressor air requirements:
|
16m3/min/Gun2-8bar(kg/cm2)
|
|
Detailed Images
Conveyor Belt Sandblasting Machine Features
The belt conveyor speed can be steplessly regulated by the inverter based on actual needs.
A dust removing system thoroughly collects dust leaving a clear working view and ensures the recycling of pure abrasives.
The automatic sandblaster applies advanced electric and pneumatic control system, with a high degree of flexibility and stability.
|
Parameters for different size
|
|
|
|
|
|
|||||
|
Model
|
KF-500-6A
|
KF -2804-8A
|
KF -6010-10A
|
KF -1280-12A
|
KF -3515-16A
|
|||||
|
Through size(W*H) mm
|
600 *300mm
|
600 *300mm
|
800 *300mm
|
800 * 350mm
|
1000 *350mm
|
|||||
|
Overall Size(mm)
|
3200*1000
*2400mm
|
3200*1100 *2400mm
|
3200*1400
*2400mm
|
3500*1400
*2500mm
|
3500*1500
*2500mm
|
|||||
Application
Conveyor sand blasting machine suitable for flat panel, plank, disc, cages, profiles and other special parts of the sandblasting processing. Such as: flat stainless steel sheet and steel plate, wood plate, glass plate, Non-stick pan, baking pan, notebook, ect.
