Quick Details
-
Input Voltage:
-
DC200~1000V
-
Nominal Voltage:
-
652.8V
-
Weight:
-
2700kg
-
Dimension:
-
2285*1500*1500mm
-
Cycle life:
-
≥80%,after 5000 cycles
-
Input/Output AC:
-
230/415VAC,64A,3P
-
BMS communication protocol:
-
RS232/485/CAN
-
Input(DC):
-
CCS1/CCS2/CHAdeMO DC100KW
-
Output 1(DC):
-
CCS1/CCS2/CHAdeMO DC100KW
-
Output 2 (DC):
-
CCS1/CCS2/CHAdeMO DC100KW
-
Charging time(H):
-
2h(0.33C)
Quick Details
-
Place of Origin:
-
Huizhou
-
Interface Standard:
-
CCS CHAdeMO
-
Output Power:
-
403kWh/200KW
-
Input Voltage:
-
DC200~1000V
-
Nominal Voltage:
-
652.8V
-
Weight:
-
2700kg
-
Dimension:
-
2285*1500*1500mm
-
Cycle life:
-
≥80%,after 5000 cycles
-
Input/Output AC:
-
230/415VAC,64A,3P
-
BMS communication protocol:
-
RS232/485/CAN
-
Input(DC):
-
CCS1/CCS2/CHAdeMO DC100KW
-
Output 1(DC):
-
CCS1/CCS2/CHAdeMO DC100KW
-
Output 2 (DC):
-
CCS1/CCS2/CHAdeMO DC100KW
-
Charging time(H):
-
2h(0.33C)
Products Description

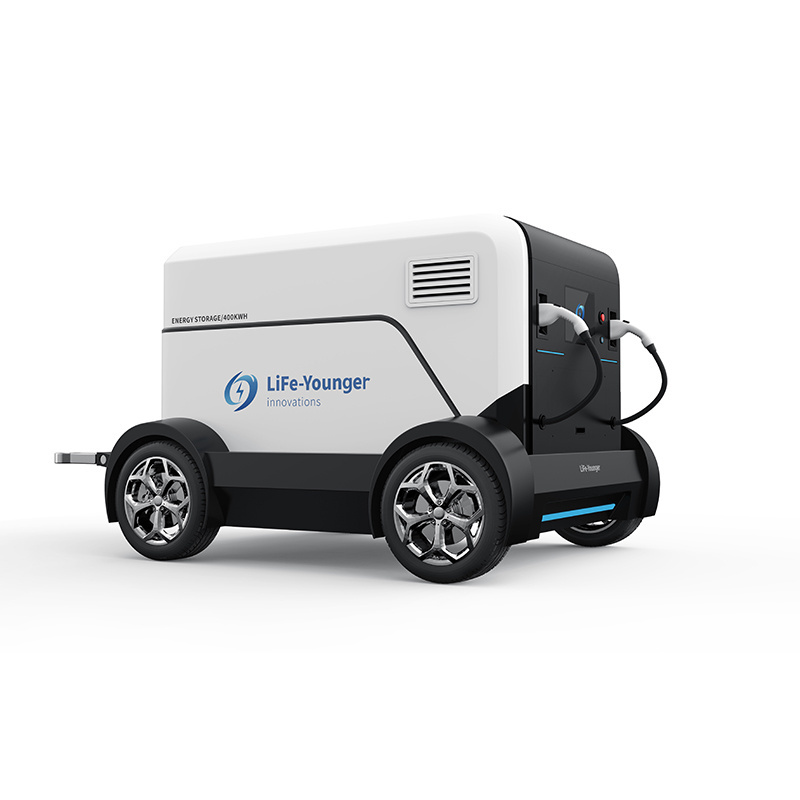

Details Images
Product Paramenters
|
Nominal voltage(V)
|
652.8V
|
|
|
|
Typical capacity(AH)
|
618AH
|
|
|
|
Weight(kg)
|
2700kg
|
|
|
|
End of charge voltage( V )
|
652.8V±0.5V
|
|
|
|
End of discharge voltage( V )
|
540V
|
|
|
|
Max DC input power ( W )
|
5600
|
|
|
|
Charging time(H)
|
2H(0.33C)
|
|
|
|
Standard charge method
|
Charge to 652V CC/CV at 0.33C
|
|
|
|
Rapid charge method
|
Charge to 540V CC/CV at 1C
|
|
|
|
Max continuous charge current(A)
|
309A(0.5C)
|
|
|
|
Max charge current(A)
|
618A(1C)
|
|
|
|
Max discharge current(A)
|
618A(1C)
|
|
|
|
Max pulse discharge current(A)
|
1120A≤1s
|
|
|
|
Standard charge and discharge current(A)
|
123A(0.2C)
|
|
|
|
Dimension
|
2285*1500*1500mm
|
|
|
|
Cycle life
|
≥80%,after 5000 cycles
|
|
|
|
Cooling method
|
Air cooling
|
|
|
|
Input/Output AC
|
230/415VAC,64A,3P
|
|
|
|
Input(DC)
|
CCS1/CCS2/CHAdeMO DC100KW
|
|
|
|
Output 1(DC)
|
CCS1/CCS2/CHAdeMO DC100KW
|
|
|
|
Output 2(DC)
|
CCS1/CCS2/CHAdeMO DC100KW
|
|
|
|
Contact
|
For more models,feel free to
contact us
for your requirements.
|
|
|
