- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
phx
-
size:
-
96X96X112/mm
-
weight:
-
0.5Kg
-
measure variable:
-
pH/ORP
-
measurement accuracy:
-
pH: +0.02pH ORP: +1m
-
RS485:
-
Isolated, Modbus-RTU communication protocol
-
Alarm function:
-
2-way capacity AC250V/3A normally open
-
Relative humidity:
-
10 ~ 85%RH (no condensation)
-
power supply:
-
220V+ 10%, 50Hz DC: 24V
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
kehao
-
Model Number:
-
phx
-
size:
-
96X96X112/mm
-
weight:
-
0.5Kg
-
measure variable:
-
pH/ORP
-
measurement accuracy:
-
pH: +0.02pH ORP: +1m
-
RS485:
-
Isolated, Modbus-RTU communication protocol
-
Alarm function:
-
2-way capacity AC250V/3A normally open
-
Relative humidity:
-
10 ~ 85%RH (no condensation)
-
power supply:
-
220V+ 10%, 50Hz DC: 24V
Products Description
|
show
|

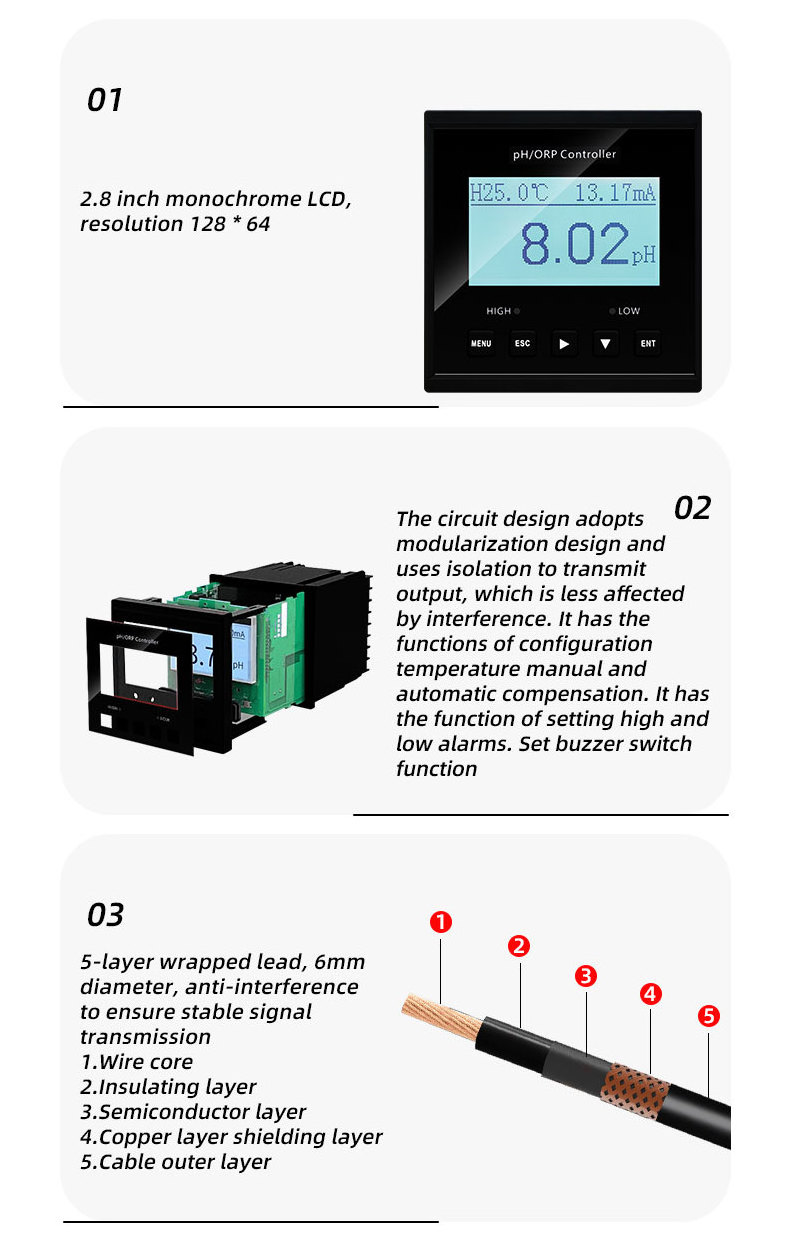

2.8 inch
|
|
Resolution
|
128*64
|
|
size
|
96X96X112/mm
|
|
weight
|
0.5Kg
|
|
measure variable
|
pH/ORP
|
|
Measuring range
|

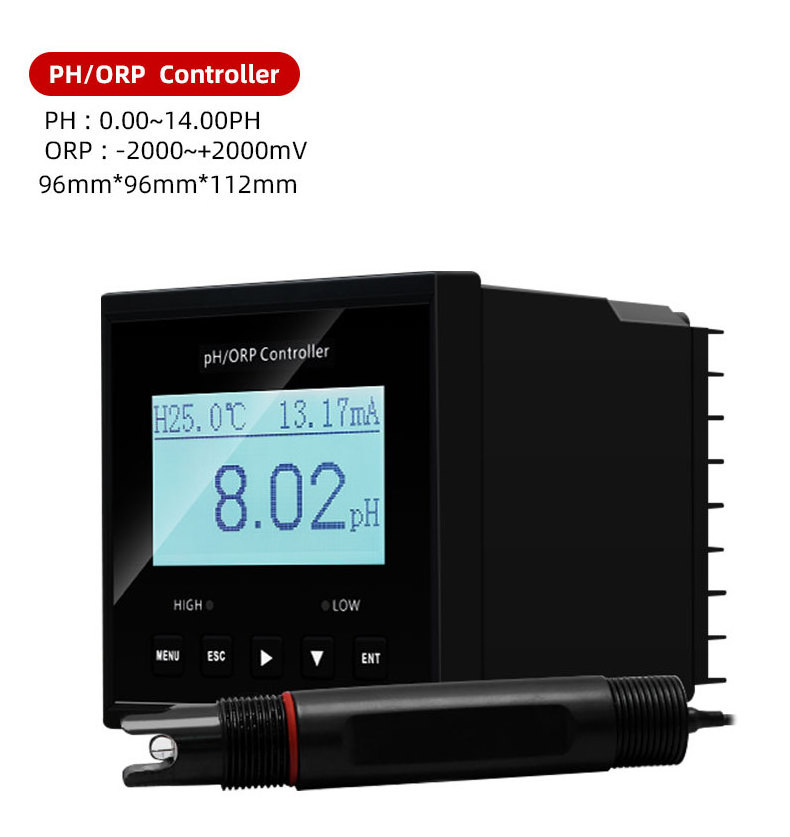

pH: 0.00 ~ 14.00pH
ORP: -1000 ~ +1000mV
-2000~+2000mV (can customized)
|
|
measurement accuracy
|
pH: +0.02pH ORP: +1m
|
|
input resistance
|
≥10
12
Ω
|
|
Temperature compensatio
|
NTC1OK: -10~60C accuracy ±0.3°C
60-130C accuracy ±2°C
Range: -10-130C Manual/Auto
|
|
Current output
|
Isolated, 4~20mA can be set to correspond to pH/ORP and temperature measurement range, maximum load 750Ω, output accuracy ± 0.2%FS
|
|
RS485
|
Isolated, Modbus-RTU communication protocol
|
|
Alarm function
|
2-way capacity AC250V/3A normally open
|
|
Relative humidity
|
10 ~ 85%RH (no condensation)
|
|
Operating temperature
|
0~60°C
|
|
power supply
|
220V+ 10%, 50Hz DC: 24V
|
|
Storage conditions
|
Temperature: -10~ 60°C
Relative humidity: 5~85%RH (no condensation)
Altitude:＜2000m
|
|
|
|
|
|
|
