Quick Details
-
Range of Spindle Speed(r.p.m):
-
65 - 4660 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Model Number:
-
X6328
-
Table Travel (mm):
-
600/240/360
-
Spindle Motor Power(kW):
-
2.2(V)3(H)
-
Voltage:
-
220v 380v 410v
-
Dimension(L*W*H):
-
1550x1650x2250
-
Weight (KG):
-
1550
-
Warranty of core components:
-
13 months
-
Name:
-
X6328 auto feed digital readout vertical metal milling machine
-
Table size:
-
1120*260mm
-
T slot:
-
3-14-63mm
-
spindle nose to table surface distance:
-
100-400
-
spindle axis and column surface distance:
-
100-400mm
-
Spindle travel:
-
127mm
-
Usage:
-
Mill Surface
-
Power (kW):
-
2.2
-
Certification:
-
CE
-
keyword:
-
metal vertical mill
Quick Details
-
Table Travel (X) (mm):
-
600 mm
-
Table Travel (Y) (mm):
-
240 mm
-
Table Travel (Z) (mm):
-
360 mm
-
Range of Spindle Speed(r.p.m):
-
65 - 4660 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Model Number:
-
X6328
-
Table Travel (mm):
-
600/240/360
-
Spindle Motor Power(kW):
-
2.2(V)3(H)
-
Voltage:
-
220v 380v 410v
-
Dimension(L*W*H):
-
1550x1650x2250
-
Weight (KG):
-
1550
-
Warranty of core components:
-
13 months
-
Name:
-
X6328 auto feed digital readout vertical metal milling machine
-
Table size:
-
1120*260mm
-
T slot:
-
3-14-63mm
-
spindle nose to table surface distance:
-
100-400
-
spindle axis and column surface distance:
-
100-400mm
-
Spindle travel:
-
127mm
-
Usage:
-
Mill Surface
-
Power (kW):
-
2.2
-
Certification:
-
CE
-
keyword:
-
metal vertical mill

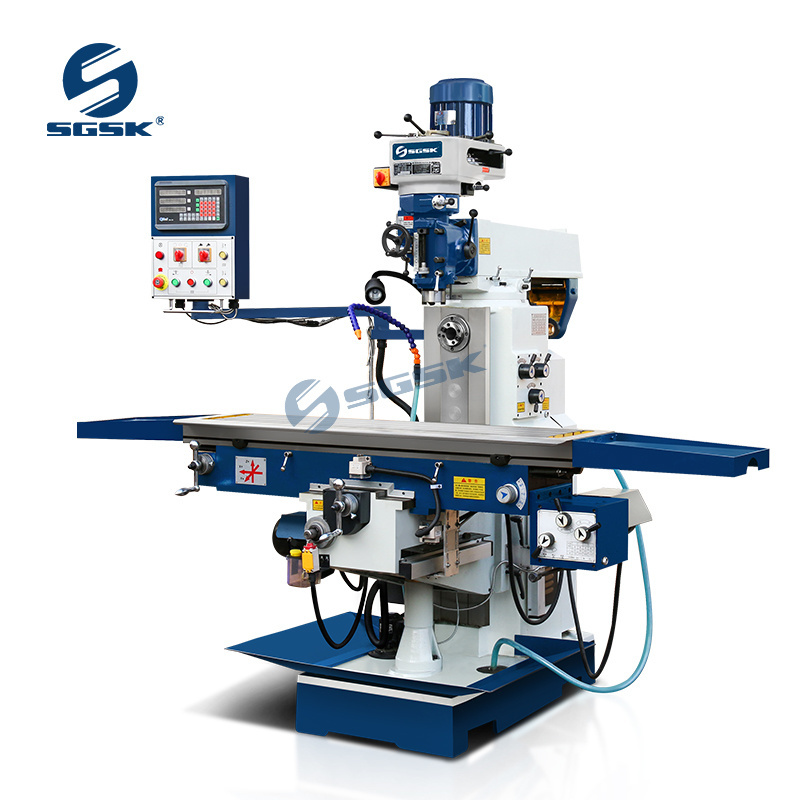

Metal dental turret milling machine X6328 auto feed digital readout vertical metal milling machine
Products Description
Details Images
Product Paramenters
Features:
1. Has the advantages of compact structure, small volume, high flexibility, milling head can rotate left and right 90 degrees, 45 degrees before and after rotation, rocker can not only before and after the expansion, and can make a 360 degree rotation in the horizontal plane, greatly improving the effective working range of machine tools.
2 the body is made of high precision cast iron, which has high precision and long service life.
3 Main shaft is made of chromium molybdenum alloy, and is equipped with precise angular contact bearing, After quenching and tempering treatment and precision grinding, high precision and high precision. Large Spindle speed range, high speed ,Spindle sleeve can be motor fixed range, and equipped with overload protection device.
4. It can be widely used for processing plane, inclined planes with arbitrary angle, keyway milling, grooves, can also turn,
reaming, boring, and so on, optional mechanical feed device and a digital display system.
2 the body is made of high precision cast iron, which has high precision and long service life.
3 Main shaft is made of chromium molybdenum alloy, and is equipped with precise angular contact bearing, After quenching and tempering treatment and precision grinding, high precision and high precision. Large Spindle speed range, high speed ,Spindle sleeve can be motor fixed range, and equipped with overload protection device.
4. It can be widely used for processing plane, inclined planes with arbitrary angle, keyway milling, grooves, can also turn,
reaming, boring, and so on, optional mechanical feed device and a digital display system.
Product main technical specifications:
|
Specifications
|
Units
|
X6328
|
|
Table size
|
mm
|
1200x280
|
|
Table travel
|
mm
|
600/240/360
|
|
T slot(number-width-pitch)
|
mm
|
3-14-63
|
|
Spindle taper
|
|
ISO40 7：24
|
|
Spindle speed range
|
rpm
|
(V) 50HZ:65-4500 60HZ:80-5440 (16 steps); (H) 40-1300(12steps
|
|
|
|
Optional:(variable)65-4000
|
|
Spindle travel
|
mm
|
127
|
|
Spindle feed range
|
mm
|
0.04,0.08,0.15 (3 steps)
|
|
Distance between spindle nose and table surface
|
mm
|
140-500
|
|
Distance between spindle axis and table surface
|
mm
|
0-360
|
|
Main motor power
|
kw
|
2.2(V)3(H)
|
|
Head rotation (left - right )
|
°
|
±90°
|
|
Head rotation (front - rear)
|
°
|
±45°
|
|
Weight
|
kg
|
1400
|
|
Overall dimension
|
mm
|
1550x1650x2250
|
