Quick Details
-
Brand Name:
-
DLX
-
Power (kW):
-
2.2
-
Weight (KG):
-
220
-
Product name:
-
Portable Programmable Electronic Roll Cage Rotary Draw Tube Bender
-
Keyword:
-
Hydraulic pipe bender
-
Used for:
-
Hotels Food & Beverage Factory Manufacturing Plant
-
Bending speed:
-
10-20r/min
-
Availabe bending material:
-
Brass / Copper Carbon Steel Stainless Steel
-
Control system:
-
CNC System
-
Dies:
-
Customized according to pipe size,thickness,material,bending radius
-
Motor power:
-
2.2kw, electric pipe bender machine
-
Application:
-
Pipes Processing round,square ,rectangle
-
Type:
-
Portable Programmable Electronic Roll Cage Rotary Draw Tube Bender
Quick Details
-
Max. Bending Angle (Deg):
-
180
-
Bending Precision (Deg):
-
1
-
Place of Origin:
-
China
-
Brand Name:
-
DLX
-
Power (kW):
-
2.2
-
Weight (KG):
-
220
-
Product name:
-
Portable Programmable Electronic Roll Cage Rotary Draw Tube Bender
-
Keyword:
-
Hydraulic pipe bender
-
Used for:
-
Hotels Food & Beverage Factory Manufacturing Plant
-
Bending speed:
-
10-20r/min
-
Availabe bending material:
-
Brass / Copper Carbon Steel Stainless Steel
-
Control system:
-
CNC System
-
Dies:
-
Customized according to pipe size,thickness,material,bending radius
-
Motor power:
-
2.2kw, electric pipe bender machine
-
Application:
-
Pipes Processing round,square ,rectangle
-
Type:
-
Portable Programmable Electronic Roll Cage Rotary Draw Tube Bender
3d Freeform Copper Plumbing Portable Programmable Electronic Roll Cage Rotary Draw Tube Bender

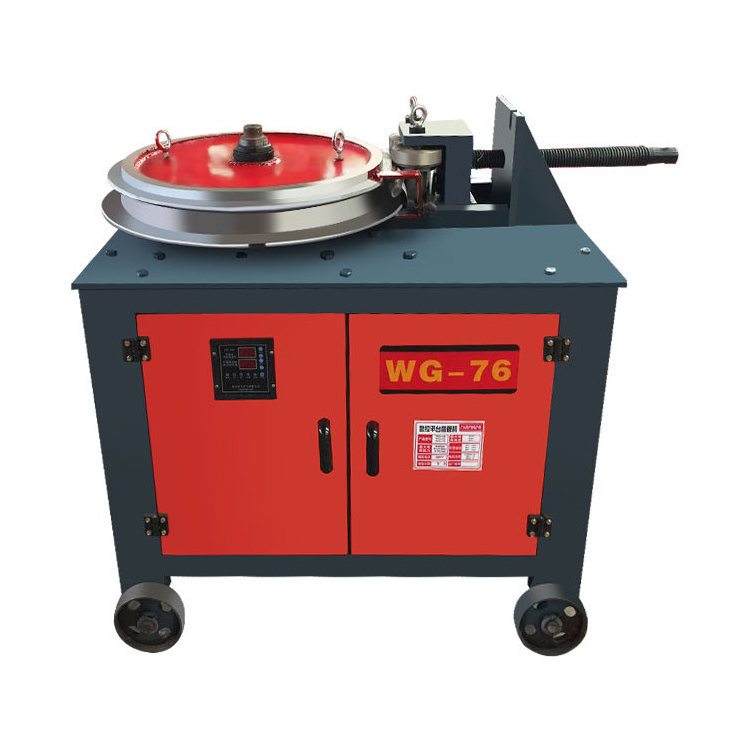

WG-38/51/76 CNC steel tube bending machine is mainly used for bending different kinds of tube materials,for example round or square mild carbon steel tube,201 or 304 stainless steel tube,rectangular steel tube,alumimum tube,cooper tube or other special shaped steel tube etc. And this machine always bend tubes into different angles from 5 to 180 degrees.
This model is our latest technical achievements of the research and development.Having the following characteristics:
1.Use Micro CNC computer panel control the bending angles and batches.
2.Gear drive is durable and maintenance is convenient,only add the grease oil into the gear box.
3.Thin tube and thick tube could work well by this machine.
4.Foot switch add CNC operation,let the tube processing so easy and convenient.
| Electric Small Semi-Automatic CNC Pipe Bending Machine Technical Parameter | |||||
| Model | WG-26 | WG-38 | WG-51 | WG-76 | WG-76W |
| Engine Type | Electric Type | ||||
| Bending diameter | ≤26mm | ≤38mm | ≤51mm | ≤76mm | ≤76mm |
| Thickness Scope | ≤2mm | ≤3mm | ≤3mm | ≤3mm | ≤5mm |
| High bending speed | 10-20r/min | 10-20r/min | 4-6r/min | 3-5r/min | 3-5r/min |
| Bending Angles Quantity | 9 | 9 | 9 | 9 | 9 |
| Max bending angle | 180° | 180° | 180° | 180° | 180° |
| Min bending angle | 5° | 5° | 5° | 5° | 5° |
| Motor Power | 2.2kw | 3kw | 3kw | 4kw | 4kw |
| Power supply | 380V,50Hz,3Phase Alternating Current Or Customized | ||||
| Foot switch voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
| Dimensions(mm) | 850x600x850 | 920x650x850 | 930x680x850 | 940x750x850 | 980*760*850 |
| Weight | 220KG | 300kg | 350kg | 400kg | 430kg |
| Model | WG-76A | WG-100A | WG-150A |
| Engine type | Hydraulic automatic type | ||
| Bending diameter | Φ25-76mm | Φ25-100mm | Φ25-133mm |
| Thickness scope | ≤3mm | ≤3mm | ≤5mm |
| motor power | 7.5KW | 7.5KW | 11KW |
| high bending speed | 9r/min | 9r/min | 9r/min |
| power supply | 380V 50HZ three phase or customized | ||
| Bending angles | 5-180° | 5-180° | 5-180° |
| bending angle quantity | 9 | 9 | 9 |
| dimensions | 1500*950*1250mm | 1800*1050*1350mm | 1900*1200*1400mm |
| weight | 1000kg | 1300kg | 1500kg |
Packing a nd Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
