Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hi-Link
-
Supplier Type:
-
Manufacturer
-
Part number:
-
HLK-B30
-
Payment:
-
TT/Paypal/Trade assurance
-
Condition:
-
Original 100%
-
Warranty:
-
1 Year
-
Lead time:
-
1-3 Days
-
Shipment:
-
DHL FEDEX TNT UPS EMS
-
Packing:
-
Carton Box
-
Power input voltage:
-
3.3±0.3V
-
Working voltage:
-
3.0-3.6V
Quick Details
-
Chipset:
-
BK7231U
-
Application:
-
Wireless transmission
-
Model Number:
-
HLK-B30
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hi-Link
-
Supplier Type:
-
Manufacturer
-
Part number:
-
HLK-B30
-
Payment:
-
TT/Paypal/Trade assurance
-
Condition:
-
Original 100%
-
Warranty:
-
1 Year
-
Lead time:
-
1-3 Days
-
Shipment:
-
DHL FEDEX TNT UPS EMS
-
Packing:
-
Carton Box
-
Power input voltage:
-
3.3±0.3V
-
Working voltage:
-
3.0-3.6V

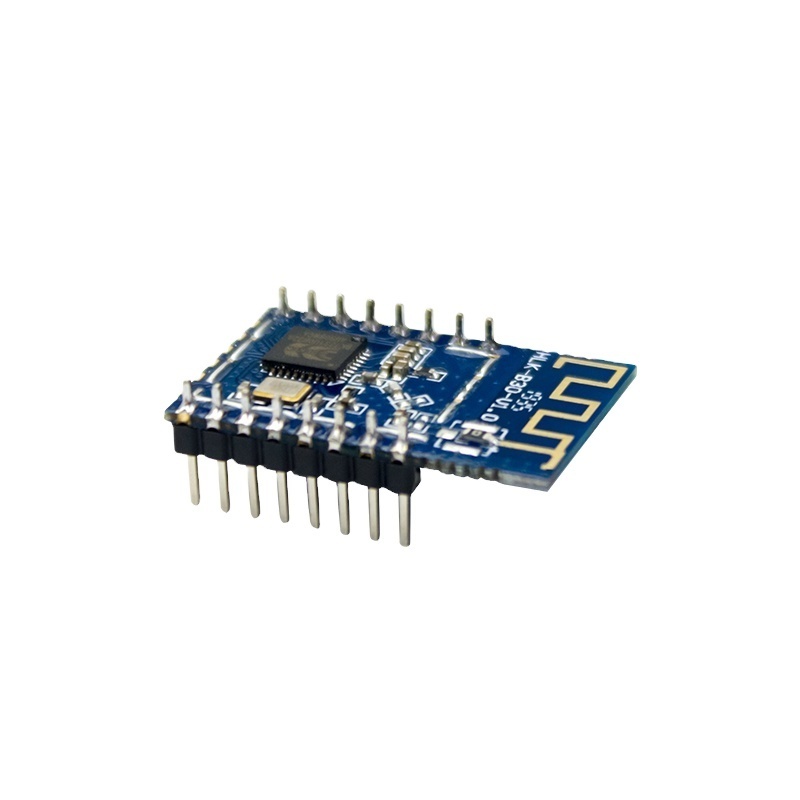

HLK-B30 BLE 4.2 Wifi & Bluetooth 2 in 1 low consumption Bluetooth Module with 2M flash
HLK-B30 is a new low-consumption wifi control module from Hi-Link Electronics.
The module has built-in wifi network protocol and BLE Bluetooth protocol stack, which can realize fast distribution network through BLE.
The module is embedded with a low-power 32-bit CPU, 2Mbyte memory, 256KB RAM and a wealth of peripheral resources. Integrates all wifi mac and TCP/IP protocols.
Basic parameters :
* Support 802.11b / g / n standards, integrating ARM9, WLAN MAC / Baseband / BLE 4.2
* Main frequency supports 120MHz
* Built-in 256KB RAM / 2MB FLASH
* Working voltage: 3.0-3.6V
* 2.4G / 1T1R WiFi, BLE 4.2
* Support BLE fast network configuration
* Support Station, Soft AP
* Support SmartConfig, WPA / WPA2 security mode, STA / AP working mode
* Support 802.11b / g / n standard, HT-40
* Support AP, STA and BLE mixed mode
* Rich peripheral interfaces, 1 * SPI, 2 * UART, 6 * PWM, 19 * GPIO
* Widely used in the Internet of Things
* Support multiple encryption methods WEP64 / 128, TKIP, AES, WPA, WPA2, WAPI
* Support 802.11b / g / n standards, integrating ARM9, WLAN MAC / Baseband / BLE 4.2
* Main frequency supports 120MHz
* Built-in 256KB RAM / 2MB FLASH
* Working voltage: 3.0-3.6V
* 2.4G / 1T1R WiFi, BLE 4.2
* Support BLE fast network configuration
* Support Station, Soft AP
* Support SmartConfig, WPA / WPA2 security mode, STA / AP working mode
* Support 802.11b / g / n standard, HT-40
* Support AP, STA and BLE mixed mode
* Rich peripheral interfaces, 1 * SPI, 2 * UART, 6 * PWM, 19 * GPIO
* Widely used in the Internet of Things
* Support multiple encryption methods WEP64 / 128, TKIP, AES, WPA, WPA2, WAPI
Details
Switching light function description
Before testing the switch light function, you need to use the serial port to burn the firmware of the switch light function. The function of the switch lamp mainly realizes the on and off function of the LED_Y lamp. The function of turning on or off the LED_Y lamp can be controlled by the switch button.
Enter the distribution network mode
Power off the on the module six times continuously at a time interval of one second, and then waited 6 seconds, the NET led light will flash once every second, indicating that the module has erased the network configuration information and entered the distribution network. After the network configuration is successful, the NET led light will be on constantly, indicating that the router is successfully connected.
Before testing the switch light function, you need to use the serial port to burn the firmware of the switch light function. The function of the switch lamp mainly realizes the on and off function of the LED_Y lamp. The function of turning on or off the LED_Y lamp can be controlled by the switch button.
Enter the distribution network mode
Power off the on the module six times continuously at a time interval of one second, and then waited 6 seconds, the NET led light will flash once every second, indicating that the module has erased the network configuration information and entered the distribution network. After the network configuration is successful, the NET led light will be on constantly, indicating that the router is successfully connected.
Here is the link for Start Kit .
Click it please if you need Start Kit .
