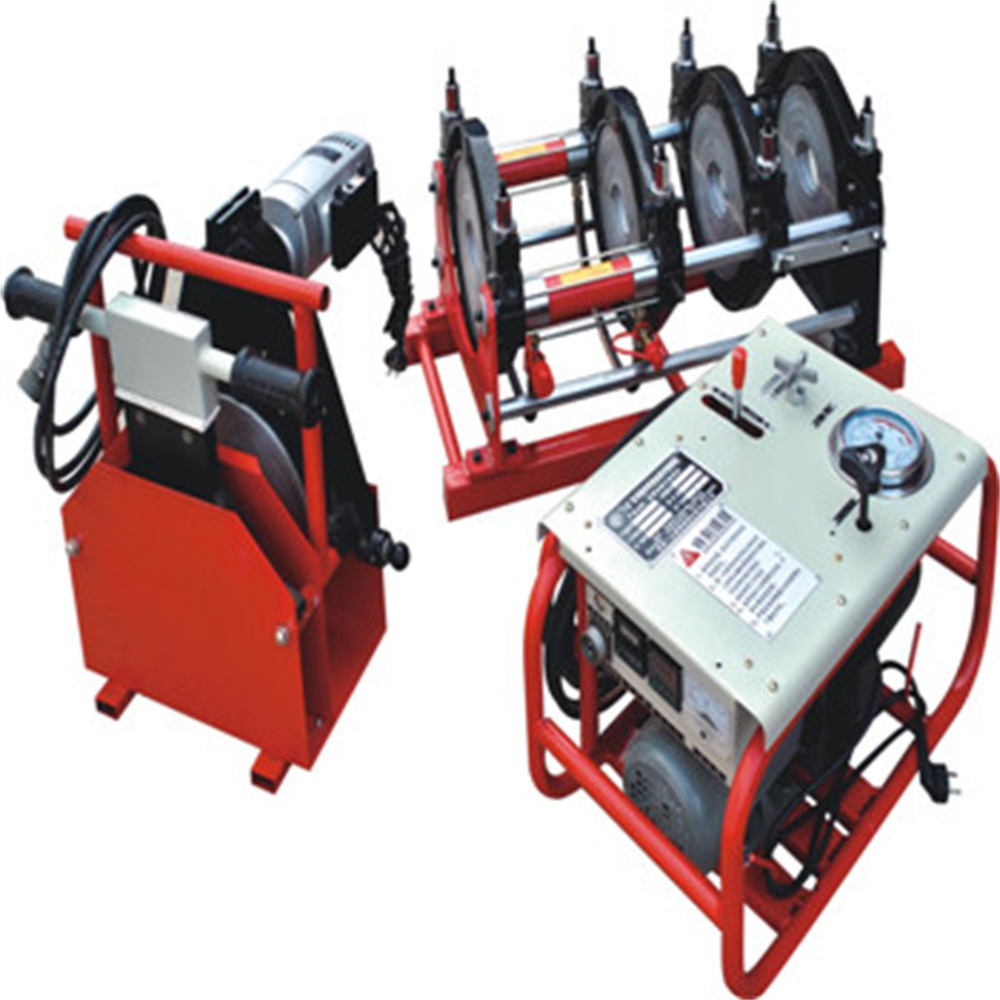

Maquina De Soldadura A Tope De Tubos De 630-1200mm Mm Tech Pe Multi Angle Fabrication Welding Machine

Maquina De Soldadura A Tope De Tubos De 630-1200mm Mm Tech Pe Multi Angle Fabrication Welding Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1020

≥10 Sets

US $980

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Current:: 32A

Dimensions:: 63-160MM

Use:: plastic pipe butt fusion

Power (kW):: 3.45KW

Weight (KG):: 106 KG

Weld Method:: Hydraulic Butt Fusion Welding Machine

Application:: HDPE PE PPR PVDF Welding

Welding range:: 90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm

Work Voltage:: 220V 50HZ

PACKAGE:: Plywood Cases

Heating Plate Power:: 2.0KW

Service:: 1 Year Warraty

After-sale Survice Provided:: Video Support

Materials:: Aluminum

COLOR:: Customer's Requirement

Quick Details

Place of Origin:: China

Brand Name:: XINHAOHONGDA

Input Voltage:: 220V 50/60HZ

Current:: 32A

Dimensions:: 63-160MM

Use:: plastic pipe butt fusion

Power (kW):: 3.45KW

Weight (KG):: 106 KG

Weld Method:: Hydraulic Butt Fusion Welding Machine

Application:: HDPE PE PPR PVDF Welding

Welding range:: 90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm

Work Voltage:: 220V 50HZ

PACKAGE:: Plywood Cases

Heating Plate Power:: 2.0KW

Service:: 1 Year Warraty

After-sale Survice Provided:: Video Support

Materials:: Aluminum

COLOR:: Customer's Requirement

Product Description

Specification

Model	XHY160
Welding range(mm)	50mm-63mm-75mm-90mm-110mm -125mm-140mm-160mm
Heating plate temperature	270°C
Heating plate surface temperature(170-250°C)	<±5°C
Pressure adjustment range	0-6.3MPa
Cross-sectional area of the cylinder	626mm²
Working Voltage	220-240V,50/60Hz
Heating plate power	1.0KW
Cutter power	0.85KW
Hydraulic station power	0.75KW
Total Power	2.6KW
N.W.	106kg
Package	With two export boxes
Volume	0.56

Packing & Delivery

          To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ


           1. Q:What is your payment terms ?

           A:100% TT in advance . Western Union , D/P, Credit card payment on line .

           2.  Q:What’s your delivery time ?

           A:3-5 days after payment

           3.Q:How about your Guarantee and Service ?

           A:All designed according to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007) International warranty: 12 months. Any parts

           broken or does not work under normal operating, we are free to provide.

           4. Q: What shipment is it to our destination?

           A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship byair.
