Quick Details
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Bescomt
-
Year:
-
2023
-
Voltage:
-
220V/380V/415v
-
Dimension(L*W*H):
-
2160*1504*1900mm
-
Weight (T):
-
4 T
-
Model Number:
-
Y41
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
1 years
-
Product name:
-
hydraulic press
-
Function:
-
universal making machine
-
Keyword:
-
kitchenware hydraulic press
-
Usage:
-
Pressing Metal Sheet
-
Material:
-
Steel Material
-
CNC or Not:
-
Nomal
-
After-sales Service Provided:
-
Overseas Service Provided
-
Power Source:
-
Hydraulic Power
-
Structure:
-
Single Column Hydraulic Press
-
Feature:
-
Long Life
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
500
-
Ejector Force (kN):
-
1000
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Bescomt
-
Year:
-
2023
-
Voltage:
-
220V/380V/415v
-
Dimension(L*W*H):
-
2160*1504*1900mm
-
Weight (T):
-
4 T
-
Model Number:
-
Y41
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
1 years
-
Product name:
-
hydraulic press
-
Function:
-
universal making machine
-
Keyword:
-
kitchenware hydraulic press
-
Usage:
-
Pressing Metal Sheet
-
Material:
-
Steel Material
-
CNC or Not:
-
Nomal
-
After-sales Service Provided:
-
Overseas Service Provided
-
Power Source:
-
Hydraulic Power
-
Structure:
-
Single Column Hydraulic Press
-
Feature:
-
Long Life

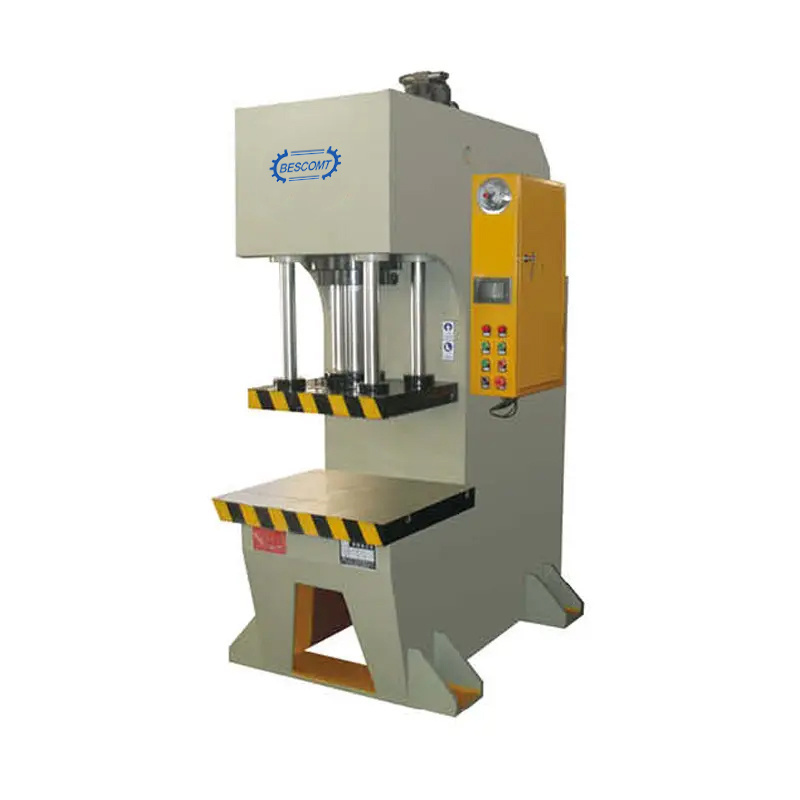

Single Column Hydraulic Press
Y41 series single column hydraulic press-fit correction,is a multi-functional small hydraulic machine,suitable for shaft parts,profile correction and sleeve press-fit parts.To complete the sheet metal Bending,stamping,sleeve-shaped,Jane The single parts stretching process action can be used to suppress less stringent require ments powder,plastic products.
Y41 series product is suitable for machine tools,internal combusion engines,textile machinery, shafts,bearings,washers,motor vehicle,air conditioning motors,electrical appliances,military enterprises,foreign-funded enterprises assembly lines and other industry.
I plant strong technical force,can meet a variety of user requirements(eg technical parameters,specifications,tonnage,etc)
|
Model
|
Unit
|
10T
|
16T
|
25T
|
40T
|
63T
|
100T
|
|||||
|
Nominal Force
|
KN
|
100
|
160
|
250
|
400
|
630
|
1000
|
|||||
|
Maximum working pressure of liquid
|
Mpa
|
5.8
|
13
|
20.5
|
23
|
18.5
|
26.3
|
|||||
|
Max Slide Stroke
|
mm
|
300
|
350
|
350
|
400
|
500
|
500
|
|||||
|
Distance between slider and workbench
|
mm
|
500
|
550
|
600
|
700
|
800
|
800
|
|||||
|
Slide downward Speed
|
mm/s
|
85
|
110
|
110
|
85
|
85
|
85
|
|||||
|
The speed of the slider
|
mm/s
|
7-15 adjustable
|
10
|
14
|
12
|
10
|
10
|
|||||
|
Slider return speed
|
mm/s
|
120
|
120
|
120
|
120
|
120
|
120
|
|||||
|
Deep throat
|
mm
|
250
|
280
|
280
|
300
|
300
|
300
|
|||||
|
Bolster Area
|
mm
|
480*600
|
500*650
|
500*650
|
550*700
|
650*800
|
600*800
|
|||||
|
Area covered
|
mm
|
1100*800*1900
|
1150*800*2100
|
1200*830*2300
|
1200*900*2700
|
1530*1600*2900
|
1650*1600*3100
|
|||||
|
Motor Power
|
KW
|
4
|
4
|
4
|
5.5
|
7.5
|
7.5
|
|||||
This series of hydraulic presses have a wide range of versatility and are suitable for stretching, bending, flanging,cold extrusion, blanking, and other processes of various metal materials. They are also
suitable for correction, press mounting, powder products, abrasive products, grinding wheels, bakelite, numerical ther
mosetting product molding, and the pressing and molding of plastic products and insulating materials.
