Quick Details
-
Brand Name:
-
GSM
-
Filter Rating:
-
27%-80% Filter Mesh
-
Thickness:
-
80-1000um
-
Length:
-
4'' 5'' 6''
-
Width:
-
4'' 5''
-
Shape:
-
Square,Round,Cycles Disc Screen
-
Wire diameter:
-
As requirement
Quick Details
-
Weight (KG):
-
0.1
-
Core Components:
-
other
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GSM
-
Filter Rating:
-
27%-80% Filter Mesh
-
Thickness:
-
80-1000um
-
Length:
-
4'' 5'' 6''
-
Width:
-
4'' 5''
-
Shape:
-
Square,Round,Cycles Disc Screen
-
Wire diameter:
-
As requirement
Products Description

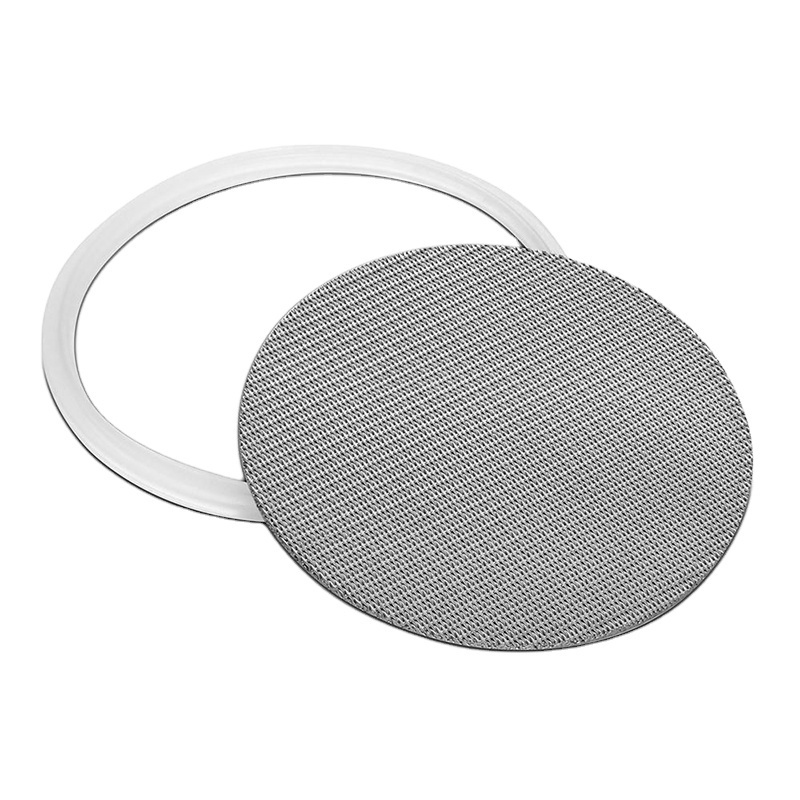

Sintered Woven Wire Mesh
With high strength and precision, sintered woven wire mesh is a good choice for purification and filtration of liquid or gas.
Sintered Woven Wire Mesh is mainly made of high quality stainless steel wire cloth, including plain weave type and dutch weave type. According to different filtration needs, it can be manufactured to single layer and multiple layers. It is corrosion and rust resistant and easy to clean. Featured by the high strength and accurate filter rating, sintered woven wire mesh is widely used for purification and filtration of liquid and gas. Besides, it's also can be used for separation and recovery of solid particle.
Feature:
* High strength and durability.
* Uniform structure without deforming.
* High permeability and accurate filter rating.
* Corrosion and rust resistance.
* Easy to clean and can be used for many times.
Sintered Woven Wire Mesh is mainly made of high quality stainless steel wire cloth, including plain weave type and dutch weave type. According to different filtration needs, it can be manufactured to single layer and multiple layers. It is corrosion and rust resistant and easy to clean. Featured by the high strength and accurate filter rating, sintered woven wire mesh is widely used for purification and filtration of liquid and gas. Besides, it's also can be used for separation and recovery of solid particle.
Feature:
* High strength and durability.
* Uniform structure without deforming.
* High permeability and accurate filter rating.
* Corrosion and rust resistance.
* Easy to clean and can be used for many times.
|
Specification:
|
|
|
|
Material:
|
Stainless Steel 304, 316, 316L or Alloy Steel Hastelloy, Monel, Inconel Wire Mesh.
|
|
|
Standard Size (mm):
|
300 x 1000, 300 x1500, 500 x 1000, 600 x 1200, 1000 x 1000, 1000x 1500, 1200 x 1200, 1200 x 1500.
|
|
|
Weave Type
|
Plain weave, dutch weave.
|
|
|
table 1: Specification of 1 Ply Sintered Mesh
|
|
able 1: Specification of 1 Ply Sintered Mesh
|
|
|
|
|||||
|
Item
|
Filter Rating (pm)
|
Size (mesh)
|
Wire Diameter (mm)
|
Thickness (mm)
|
Weight (kg/m2)
|
|||||
|
SLSM-01
|
5
|
200
|
0.07
|
0.1
|
0.011
|
|||||
|
SLSM-02
|
178
|
80
|
0.14
|
0.2
|
0.0772
|
|||||
|
SLSM-03
|
234
|
60
|
0.19
|
0.3
|
0.010
|
|||||
|
SLSM-04
|
279
|
50
|
0.23
|
0.4
|
0.012
|
|||||
|
SLSM-05
|
380
|
40
|
0.25
|
0.4
|
0.012
|
|||||
|
SLSM-06
|
540
|
30
|
0.30
|
0.4
|
0.013
|
|||||
|
SLSM-07
|
860
|
20
|
0.41
|
0.6
|
0.015
|
|||||
|
SLSM-08
|
2460
|
8
|
0.71
|
1.0
|
0.018
|
|||||
|
Table 2: Common Specification of Multi- Layer Sintered Mesh
|
|
|
|
|
|
|||||
|
Item
|
Structure
|
Filter Rating (pm)
|
Thickness (mm)
|
Weight (kg/m2)
|
Porosity (%)
|
|||||
|
MLSM-01
|
filter layer + 60
|
2-100
|
0.5
|
1.6
|
60
|
|||||
|
MLSM-02
|
60 + filter layer + 60
|
2-100
|
0.7
|
2.4
|
56
|
|||||
|
MLSM-03
|
50 + filter layer + 20
|
20-200
|
1.0
|
3.3
|
58
|
|||||
|
MLSM-04
|
filter layer + 20 + 8.5
|
20-250
|
2.0
|
6.5
|
58
|
|||||
|
MLSM-05
|
60 + filter layer + 40 + 20
|
2-200
|
1.0
|
4.4
|
44
|
|||||
|
MLSM-06
|
40 + filter layer + 20 + 16
|
2-200
|
1.7
|
6.2
|
54
|
|||||
|
MLSM-07
|
30 + filter layer + 60 + 20 + 16
|
2-200
|
1.9
|
5.3
|
52
|
|||||
|
MLSM-08
|
80 + filter layer + 30 + 10 + 8.5
|
2-200
|
2.5
|
8.8
|
55
|
|||||
|
MLSM-09
|
50 + filter layer + 40 + 20 + 40 + filter layer + 50
|
2-150
|
2.0
|
7.4
|
58
|
|||||
|
Note: The porosity takes that of 20 mesh as criteria, and other special structures can be manufactured.
|
|
|
|
|
|
|||||
