Quick Details
-
Application:
-
suitable for use with water or drilling mud
-
material:
-
carbon steel
-
color:
-
black, as required
-
type:
-
water drilling swivel
-
Advantage:
-
adapter subs are available to adapt to BQ NQ HQ PQ drill rod
-
size:
-
as required
Quick Details
-
Weight (KG):
-
15
-
Place of Origin:
-
China
-
Brand Name:
-
DY On-tech
-
Application:
-
suitable for use with water or drilling mud
-
material:
-
carbon steel
-
color:
-
black, as required
-
type:
-
water drilling swivel
-
Advantage:
-
adapter subs are available to adapt to BQ NQ HQ PQ drill rod
-
size:
-
as required
Features:
1. suitable for use with water or drilling mud only. Packing and mating wear wear sleeves are subject to wear and generally operate with a small degree of leakage depending on RPM and vibration level.
2. adapter subs are available to adapt to BQ NQ HQ PQ drill rod.

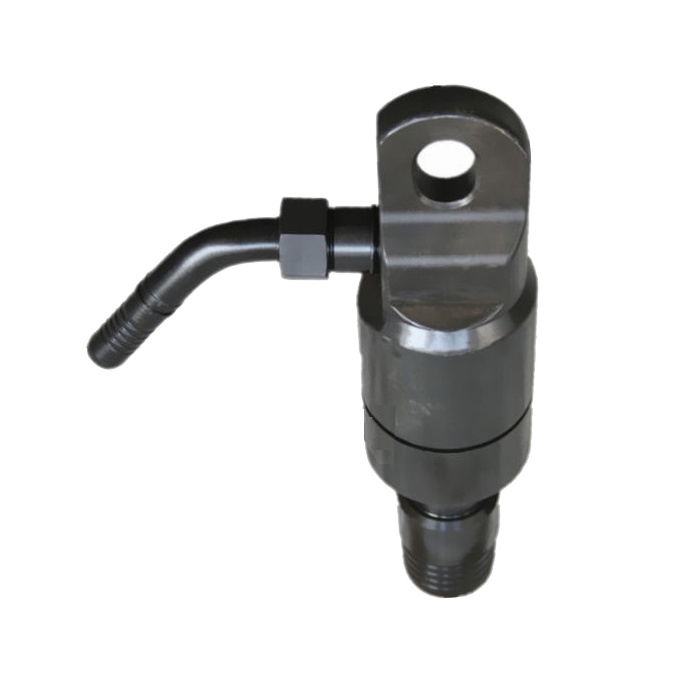

Compact Plus water swivel Features:
• Swivel cap complete with lifting bail for hoisting cable
applications.
• #16 NPT hose connection.
• AW rod box spindle connection.
• Suitable for use with water or drilling mud.
• Easy servicing in the field with common tools.
• Majority of components are common with underground compact
plus water swivel.
heavy duty water swivel for drilling rig
|
ID |
Item |
Unit |
Weight (Kg) |
|
1-15 |
C01 type water swivel |
set |
14.43 |
|
1 |
Swivel cap |
pc |
6.30 |
|
1A |
Hose joint |
pc |
0.50 |
|
2 |
Spring |
pc |
0.02 |
|
3 |
Swivel packing |
set |
0.05 |
|
4 |
O ring |
pc |
0.01 |
|
5 |
Swivel packing housing |
pc |
1.00 |
|
6 |
Spindle nut |
pc |
0.20 |
|
7 |
Spacer |
pc |
0.01 |
|
8 |
Washer |
pc |
0.01 |
|
9 |
Water tube |
pc |
0.30 |
|
10 |
Retaining ring |
pc |
0.02 |
|
11 |
Ball Bearing |
pc |
0.70 |
|
12 |
Spindle |
pc |
1.70 |
|
13 |
Thrust Bearing |
pc |
0.50 |
|
14 |
Swivel body |
pc |
3.10 |
|
15 |
Grease fitting |
pc |
0.01 |
