Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Weight (KG):
-
55 KG
Quick Details
-
Working Accuracy:
-
±0.002 mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, DST
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Weight (KG):
-
55 KG

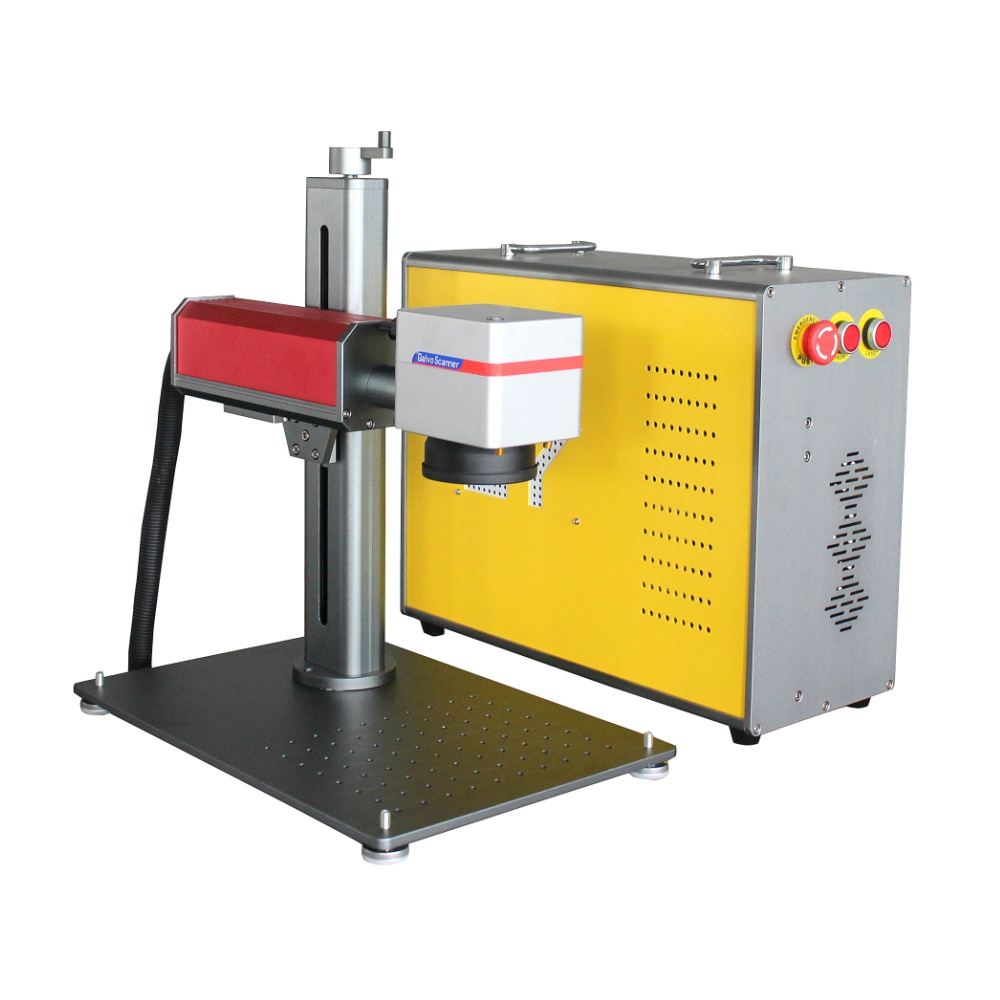

Mini Separated 20W 30W 50W 60W 100W Raycus Max JPT Fiber Laser Engraver Engraving Marking Cutting Machine For Metal PVC Stuffs
1.Machine with special lightweight design, remove unnecessary design, maximum save shipping cost for customers.(So shippingcost won’t occupy big proportion in customer’s budget.)
2.This machine can upgrade or add more parts, such as Rotary Axis, more Field Mirrors, more Peripheral Accessories, so can refer relative showcase, can add to shopping cart to pay directly, or leave message to seller to update total after final options confirmed. `
Specification:
|
Brand |
LY-Fiber-Separated |
|
Laser power |
20W/30W/50W/60W ( MAX / RAYCUS / JPT) |
|
Working Area |
Optional |
|
Cooling Mode |
Air Cooling |
|
Laser Wavelength |
10.64 um |
|
Frequency of pulse |
20-100 KHz |
|
Marking Depth |
≤0.3 mm |
|
Marking Speed |
≤4000 mm/s (If need SG7110 galvanometer ≤7000mm/s,please contact with seller to add more $100 ) |
|
Marking Lines |
1-10 lines |
|
Minimum Line Width |
0.01 mm |
|
Minimum Character |
0.15 mm |
|
Repeatability Accuracy |
±0.002 mm |
|
Resolution Ratio |
0.1 mm |
|
Marking Content |
Text, pattern, date, bar code, etc |
|
Operation System |
Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10 |
|
Control Software |
EZCAD ENGLISH Control Software |
|
Graphic Format Supported |
BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
|
Unit Power |
≤0.9 KW |
|
Operation Temperature |
5°C-40°C |
|
Relative Moisture |
≤ 90%, no fog |
|
Dimensions(L*W*H) |
55 x 50 x 55 cm |
|
Power supply requirements |
220 V or 110V |
|
Weight |
30KG |
|
Warranty |
24 months |
