Quick Details
-
Row Distance(mm):
-
1 - 3250 mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
FINEYOU
-
Dimension(L*W*H):
-
7000*3090*3470
-
Weight:
-
7600 KG, 7600 KG
-
Product name:
-
Combine harvester
-
Harvester rows:
-
4 / 5
-
Power:
-
200 HP Diesel
-
Model:
-
GM100
-
Grain box volume:
-
2.8 Cubic meters
-
Working efficiency:
-
0.6~2 Ha/h
-
Header standard row spacing:
-
530/550/650/700/750/800 mm
-
Wheat header width:
-
2.75 / 3.25 M
Quick Details
-
Number of Rows:
-
5
-
Working Width(mm):
-
3250 mm
-
Tractor Power(HP):
-
0 - 200 HP
-
Row Distance(mm):
-
1 - 3250 mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
FINEYOU
-
Dimension(L*W*H):
-
7000*3090*3470
-
Weight:
-
7600 KG, 7600 KG
-
Product name:
-
Combine harvester
-
Harvester rows:
-
4 / 5
-
Power:
-
200 HP Diesel
-
Model:
-
GM100
-
Grain box volume:
-
2.8 Cubic meters
-
Working efficiency:
-
0.6~2 Ha/h
-
Header standard row spacing:
-
530/550/650/700/750/800 mm
-
Wheat header width:
-
2.75 / 3.25 M
Product Overview

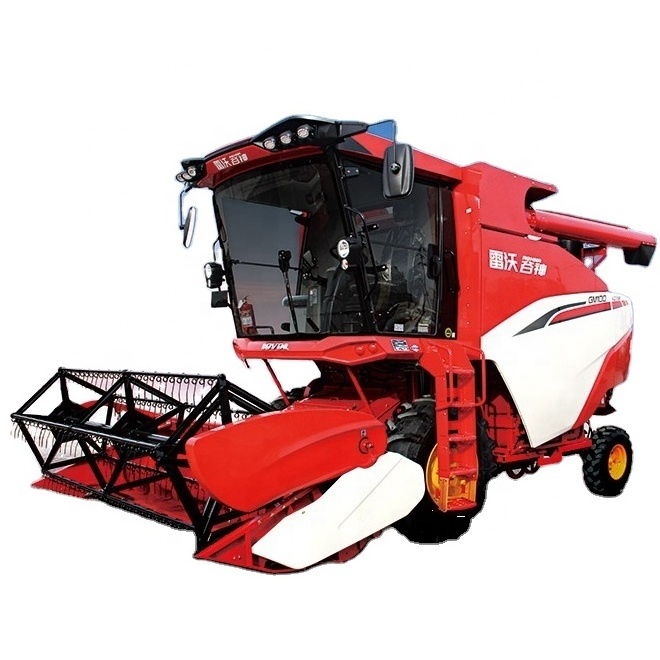

Combine harvester
Multifunctional wheeled combine harvester with different headers, suitable for harvesting crops such as corn, wheat, soybean,sorghum, sunflower, rapeseed, etc.
Products Description
Efficient and clean
○ It has a number of innovative patented longitudinal axial flow threshing and separating technologies, with a compact structure, a drum diameter of 600mm, a threshing and separation area of 2.75m2, and complete separation;
○ 920mm wide bridge, smooth feeding, enhanced conveying capacity, fast operation speed and high efficiency;
○ φ600mm × 3145mm threshing drum, the width of the cleaning room is 1000mm, the cleaning area is 3.2m2, the grains are cleaned and the efficiency is high;
○ φ260mm closed high-position rotary grain unloading cylinder, fast unloading speed;
○ Large 2.6m3 granary with large volume, reducing the frequency of unloading and improving operation efficiency;
○ The header is upgraded and speeded up, and the feeding is smooth;
○ Widened grain elevator, high efficiency and no clogging.
Smart and convenient
○ Equipped with a smart terminal as standard, remote control of operation volume and operation status, and real-time push farming information and service information.
○ Equipped with 8-inch true-color touch screen smart display to realize real-time indication and alarm of operating parameters, equipped with MP3 playback, digital FM radio and other functions.
○ The electric control joystick integrates the reel wheel lifting and header lifting buttons for a new upgrade design, high reliability and easy operation.
○ The intelligent controller controls the engine to start safely. When the engine is not in neutral, the machine cannot start, and the intelligent instrument will warn the operator.
○ Add electronic closed-loop control to the drum stepless speed change system to stabilize the drum rotation speed.
Versatile and reliable
○ Equipped with grain header, optional other headers (wheat headers, sorghum headers, corn header). The vertical axial flow roller is adjusted by hydraulic stepless speed adjustment, which is suitable for harvesting difficult to break and easily broken crops the main harvest is corn, and special components are installed to harvest wheat, rice, soybean, sorghum, millet and other crops.
○ Strong regional adaptability, suitable for different working conditions.
○ It can meet the needs of different seasons and full-time operations.
○ Imported components for bearings and belts in key parts, high reliability.
○ Steering tires are off-road tires with good abrasion resistance
○ It has a number of innovative patented longitudinal axial flow threshing and separating technologies, with a compact structure, a drum diameter of 600mm, a threshing and separation area of 2.75m2, and complete separation;
○ 920mm wide bridge, smooth feeding, enhanced conveying capacity, fast operation speed and high efficiency;
○ φ600mm × 3145mm threshing drum, the width of the cleaning room is 1000mm, the cleaning area is 3.2m2, the grains are cleaned and the efficiency is high;
○ φ260mm closed high-position rotary grain unloading cylinder, fast unloading speed;
○ Large 2.6m3 granary with large volume, reducing the frequency of unloading and improving operation efficiency;
○ The header is upgraded and speeded up, and the feeding is smooth;
○ Widened grain elevator, high efficiency and no clogging.
Smart and convenient
○ Equipped with a smart terminal as standard, remote control of operation volume and operation status, and real-time push farming information and service information.
○ Equipped with 8-inch true-color touch screen smart display to realize real-time indication and alarm of operating parameters, equipped with MP3 playback, digital FM radio and other functions.
○ The electric control joystick integrates the reel wheel lifting and header lifting buttons for a new upgrade design, high reliability and easy operation.
○ The intelligent controller controls the engine to start safely. When the engine is not in neutral, the machine cannot start, and the intelligent instrument will warn the operator.
○ Add electronic closed-loop control to the drum stepless speed change system to stabilize the drum rotation speed.
Versatile and reliable
○ Equipped with grain header, optional other headers (wheat headers, sorghum headers, corn header). The vertical axial flow roller is adjusted by hydraulic stepless speed adjustment, which is suitable for harvesting difficult to break and easily broken crops the main harvest is corn, and special components are installed to harvest wheat, rice, soybean, sorghum, millet and other crops.
○ Strong regional adaptability, suitable for different working conditions.
○ It can meet the needs of different seasons and full-time operations.
○ Imported components for bearings and belts in key parts, high reliability.
○ Steering tires are off-road tires with good abrasion resistance
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
Video
SIMILAR PRODUCTS
FAQ
1.What about your Warranty period and how do I fix it, if he was damaged?
Warranty period of one year since machine arrives destination port. The quality of our products is very good, damage under the condition of reasonable operation is rare. If it happened, our machine adopts modular design, it's easy for you to change one parts. We will send you the free part. We still offer free lifetime technical support.
2.How to buy your products and Does this payment safety for me?
We use T/T (Telegraphic transfer) payment: 30% as order money, 70% balance payment shall be paid after delivery. That can protect you to receive our products, on time and with high quality. Of course, Alibaba platform provides a perfect credit guarantee system, we can follow Alibaba platform security means to achieve the transaction. To put it simply, your expenses will be paid to the Alibaba platform. Only after you confirm receipt of the goods and in good condition then the money will be paid to our company's account.
3.What can you offer for customers?
Free OEM, Marketing support and Regional protection. We also provide purchasing agents in Chinese market of various products and assume the risk of goods and transport, to provide legal protection in the Chinese region. Provide warehouse and overall freight service. Our strong network of Chinese companies and experience in the agricultural machinery industry in China can ensure efficient, low-cost and high-quality procurement.
Warranty period of one year since machine arrives destination port. The quality of our products is very good, damage under the condition of reasonable operation is rare. If it happened, our machine adopts modular design, it's easy for you to change one parts. We will send you the free part. We still offer free lifetime technical support.
2.How to buy your products and Does this payment safety for me?
We use T/T (Telegraphic transfer) payment: 30% as order money, 70% balance payment shall be paid after delivery. That can protect you to receive our products, on time and with high quality. Of course, Alibaba platform provides a perfect credit guarantee system, we can follow Alibaba platform security means to achieve the transaction. To put it simply, your expenses will be paid to the Alibaba platform. Only after you confirm receipt of the goods and in good condition then the money will be paid to our company's account.
3.What can you offer for customers?
Free OEM, Marketing support and Regional protection. We also provide purchasing agents in Chinese market of various products and assume the risk of goods and transport, to provide legal protection in the Chinese region. Provide warehouse and overall freight service. Our strong network of Chinese companies and experience in the agricultural machinery industry in China can ensure efficient, low-cost and high-quality procurement.
