Quick Details
-
Brand Name:
-
Haolu
-
Motor Power:
-
11-36kw
-
Charging Capacity:
-
560-1500L
-
Reclaiming capacity:
-
350-1000L
-
Speed of Mixing Drum:
-
13-15
-
Water Supply Mode:
-
Pump
-
Working Cycle Period:
-
≤45s
-
Discharge Way:
-
Automatic falling
-
Outline Dimension:
-
2766*2140*3000
-
Weight (KG):
-
2600 kg
-
Product name:
-
High Efficiency Concrete Mixers
-
Keywords:
-
Climbing Bucket Concrete Mixer
-
Power type:
-
Electric Motor or Diesel Motor
-
Advantage:
-
High Mixing Efficiency
-
After-sales Service Provided:
-
core component
-
Color:
-
Customer's Requirement
-
Application:
-
Construction Projects
-
Type:
-
Friction drive
-
material:
-
Cement, mortar, concrete, cobblestone
-
Loading method:
-
climbing bucket loading
Quick Details
-
Mixing Power:
-
5.5-22kw
-
Productivity:
-
10-45m³/h
-
Place of Origin:
-
Henan
-
Brand Name:
-
Haolu
-
Motor Power:
-
11-36kw
-
Charging Capacity:
-
560-1500L
-
Reclaiming capacity:
-
350-1000L
-
Speed of Mixing Drum:
-
13-15
-
Water Supply Mode:
-
Pump
-
Working Cycle Period:
-
≤45s
-
Discharge Way:
-
Automatic falling
-
Outline Dimension:
-
2766*2140*3000
-
Weight (KG):
-
2600 kg
-
Product name:
-
High Efficiency Concrete Mixers
-
Keywords:
-
Climbing Bucket Concrete Mixer
-
Power type:
-
Electric Motor or Diesel Motor
-
Advantage:
-
High Mixing Efficiency
-
After-sales Service Provided:
-
core component
-
Color:
-
Customer's Requirement
-
Application:
-
Construction Projects
-
Type:
-
Friction drive
-
material:
-
Cement, mortar, concrete, cobblestone
-
Loading method:
-
climbing bucket loading

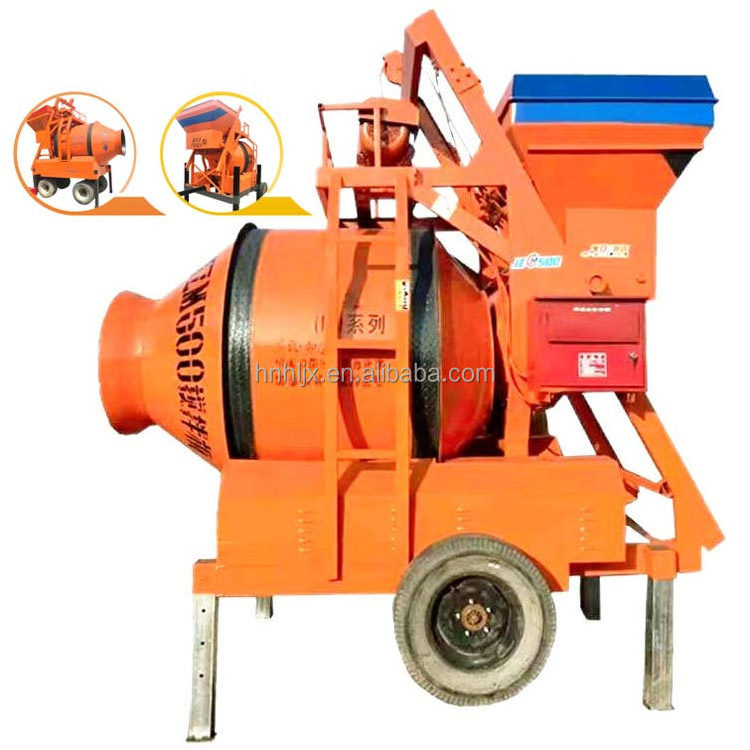

JZM drum mixer by friction rotation, forward rotation mixing, reverse discharge concrete mixer. The machine can mix plastic and semi-dry hard concrete. JZM drum mixer has the advantages of reliable transmission, low noise, low energy consumption, compact mechanism, smooth running, easy operation, good mixing quality and high productivity. The machine is suitable for construction sites, roads, Bridges, hydropower, small and medium-sized concrete components factory. The JZM mixer is divided into two types: climbing bucket feeding and tipping bucket feeding, power can be selected from electric or diesel, equipped with movable tires and traction, and can be customized according to your needs.
|
Item
|
JZM350
|
JZM400
|
JZM500
|
JZM750
|
JZM1000
|
|
Feed capacity
(L)
|
560
|
640
|
800
|
1200
|
1500
|
|
Discharge capacity
(L)
|
350
|
400
|
500
|
750
|
100
|
|
Productivity
(m³/h)
|
10-13
|
12-16
|
18-20
|
30-35
|
35-45
|
|
Bone particle maximum particle
(mm)
|
60
|
60
|
60-80
|
60-80
|
60-80
|
|
Stirring motor power
(kw)
|
5.5
|
5.5
|
5.5*2
|
7.5*2
|
11*2
|
|
Lifting motor power
(kw)
|
4.5
|
4.5
|
5.5
|
7.5
|
13
|
|
Pump motor power
(kw)
|
0.55
|
0.55
|
0.75-1.1
|
1.1
|
1.1
|
|
Drum speed
(r/min)
|
14
|
15
|
13
|
13
|
13
|
|
Long overall dimensions
L*W*H
(mm)
|
2766*2140*3000
|
3800*2050*2690
|
5226*2200*5460
|
6116*2056*6060
|
4000*2460*3650
|
Double pulley design, so that the aggregate lifting more light, reduce the equipment wear degree.
Copper core motor
Pure copper core motor, strong power, so that your equipment has enough power to run.
Thickened sheet
The thickened cylinder body and thicker legs make the mixer more durable and efficient.
Gearbox
All copper coil. Strong and durable. Smooth is not stuck.
Chain drive
National standard chain, smooth transmission, high wear resistance.
Fine electric control box, The external button works fine, easy to operate, the internal structure is clear, easy to install,reliable quality.
JZM series friction mixer is a positive mixing, reverse discharge type concrete mixer. Each mixing cycle of 100 seconds, can mix plastic and semi-dry hard, sexual concrete. The machine adopts rubber wheel friction drive, with low noise, smooth operation, easy to move, mixing quality, quantity, high production efficiency, high degree of automation, and batching equipment, can form small and medium-sized mixing station, suitable for general construction sites, roads, Bridges, hydropower and other projects, suitable for urban residential area construction.
Q: What information should I provide when I ask about the product?
A:
The more specific the information, the better service we can provide.
1. Tell us what you need to mix. Such as: concrete, cement, mortar, dry powder, fly ash and so on
2. Tell us what powers the blender. Such as: electric, diesel, pneumatic, hydraulic and so on.
3. Tell us how much concrete you need to mix each time. Such as 0.35m³, 0.4m³,, 0.5m³,
0.75m³,
1m³
etc.
Q: Are you trading company or manufacturer?
A:
We are a factory that can process and customize according to needs
Q: What are the terms of payment in your formal trade?
A:
Normally we can work on T/T term ,L/C term and Alibaba Trade Assurance Order Online .
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
Q: What’s your after-sale service?
A:
12 months warranty for main parts since departure. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well.
Q:What’s your delivery time?
A:
The goods will be delivered in 30-45 days after the 30% of the total amout is paid as deposit, and maybe a little longer if busy in the factory.
B:
Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
