Quick Details
-
Working voltage::
-
DC 8 ~ 24V or AC 6 ~ 18V
-
Display::
-
0.56 red
-
Output current::
-
20mA (for sensor)
-
Measuring range::
-
9999
-
Measurement accuracy::
-
± 0.1%
-
Refresh rate::
-
> 3 times / second
-
Overrange display::
-
display "----"
-
Opening size::
-
76.5 x 39.5 (mm)
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Product name:
-
Tachometer
-
Working voltage::
-
DC 8 ~ 24V or AC 6 ~ 18V
-
Display::
-
0.56 red
-
Output current::
-
20mA (for sensor)
-
Measuring range::
-
9999
-
Measurement accuracy::
-
± 0.1%
-
Refresh rate::
-
> 3 times / second
-
Overrange display::
-
display "----"
-
Opening size::
-
76.5 x 39.5 (mm)

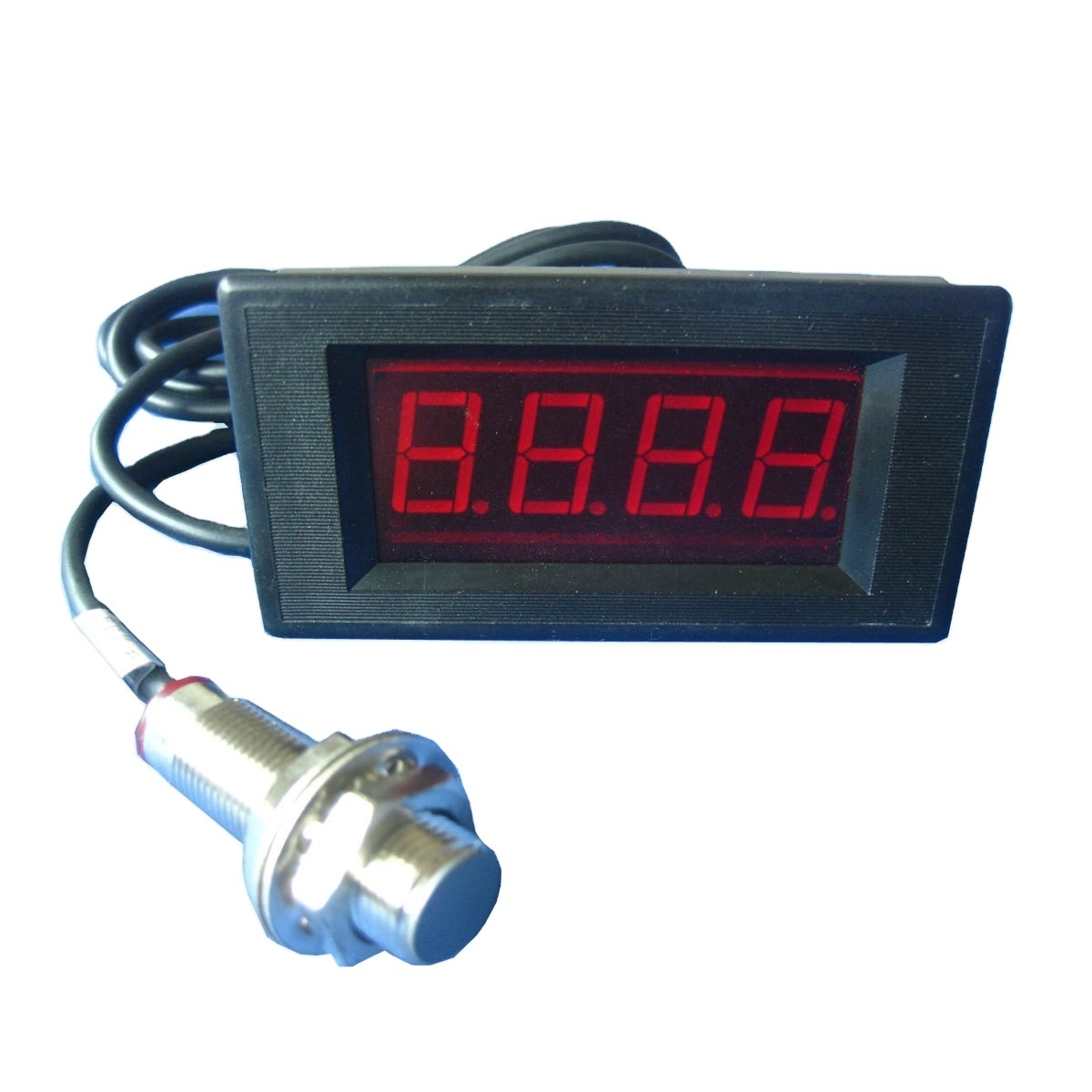

RC41 Digital Rpm Meter Gauge Rpm Meter Tachometer excluding the HALL SENSOR 2 stroke engine tachometer
Speed measuring range: 99999 ~ 3.8 rpm
Input power supply: DC 8 ~ 24V or AC 6 ~ 18V
Output current: 20mA (for sensor)
Error range: ± 0.5 ‰ ~ ± 1.5 ‰ rpm
Display: 4-bit led, word height 14mm (as shown in Figure 1)
Overall dimension: 78 × forty-two × 24 (mm) standard face frame size, embedded installation
Opening size: 76.5 × 39.5 (mm)
Operating temperature: - 10 ~ 60 ℃ (relative humidity below 80%)
Magnet size: Φ 6mm*3mm
Sensor probe diameter: Φ 12mm (if required) Φ 8mm, please add 10 yuan)
RPM Display Explain
>99999 FULL Excess
99999~10000 X.XXX X.XXX million revolutions
9999~1000 XXXX XXXX turn
999~100 XXX XXX turn, thousand position blanking
99.9~10.0 XX. X XX. X turn, thousands blanking
9.9~3.8 X.X Thousand bit, hundred bit blanking
<3.8 0.0 Min. 3.8 rpm
