Quick Details
-
Brand Name:
-
CY
-
Model Number:
-
CY-3500
-
External Size:
-
2030*900*900
-
Product name:
-
telecom equipment outdoor cabinet
-
Protection level:
-
IP55 IP20 etc
-
security design:
-
Embedded door, embedded hinges, 3-point security lock
-
cooling system:
-
compressed air conditioner 220v 110v
-
Internal capacity:
-
42U ,15U,19inch ,21inch rack
-
Weight:
-
330KGS
-
External size:
-
2030*900*900MM
-
INternal size:
-
1800*800*800MM
-
Structure characteristics:
-
double layer heat insulcation structure
Quick Details
-
Protection Level:
-
IP55
-
Type:
-
telecom cabinet
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CY
-
Model Number:
-
CY-3500
-
External Size:
-
2030*900*900
-
Product name:
-
telecom equipment outdoor cabinet
-
Protection level:
-
IP55 IP20 etc
-
security design:
-
Embedded door, embedded hinges, 3-point security lock
-
cooling system:
-
compressed air conditioner 220v 110v
-
Internal capacity:
-
42U ,15U,19inch ,21inch rack
-
Weight:
-
330KGS
-
External size:
-
2030*900*900MM
-
INternal size:
-
1800*800*800MM
-
Structure characteristics:
-
double layer heat insulcation structure
CE certificate 19 inch rack outdoor telecom cabinet
19 inch rack outdoor telecom cabinet specification
A,cabinet outer size:H*W*D 2030*900*900mm
B,cabinet inner size:H*W*D 1800*800*800mm ,internal capacity:19" 42U
C,cabinet type: 1unit1cabin,front door,assembly structure,double layer
D,Material: left ,right and back part are color steel plate,other parts are Galvanization plate ,insulation thickness 45mm,insulation cotton material is PEF
E,Thermal insulation performance:Thermal Conductivity<0.472W/(m2.k)
F,equipment rack:standard 19"rack,4 pairs Tropsch Article,3 floors
G,cabinet base:150mm H,thickness 2.0mm
H,cable entry:under bottom in and out Φ50*5
I,security design: Embedded door, embedded hinges, 3-point security lock
J,protection level:IP55

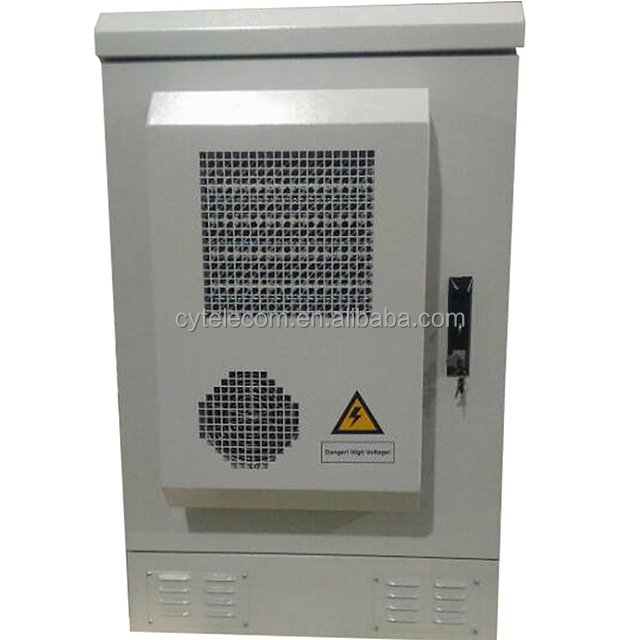

19 inch rack outdoor telecom cabinet Product Display
19 inch rack outdoor telecom cabinet Application areas: communications, industrial, electricity, radio and television, special equipment
cheng tong yuan Communication Equipment cabinets configuration
| Configuration | Items | Technical Index (one unit one cabin) | |||
| Standard | Model No. | ODC-140606-SACM | ODC-140808-SACM | ODC-180606-SAHM | ODC-180808-SAHM |
| Size(H*W*D) | 1400*600*600MM | 1400*800*800MM | 1800*600*600MM | 1800*800*800MM | |
| Material | color steel plate | steel plate+cotton insulation | |||
| Insulation Thickness | 45mm (other thickness customized) | 0mm/20mm/40mm (customized) | |||
| Maintenance Mode | front door/front back door | ||||
| Assembly Mode | assembly/complete | ||||
| Rack size | 19inch/ 21inch | ||||
| Protection Level | IP55 | ||||
| Working temperature | ,-40℃~+55℃ | ||||
| Optional | Compressor A/C | AC220V cooling capacity:300W/500W/800W/1100W/1500W/2000W/2500W | |||
| Heat exchanger | DC48V heat exchage capacity:80W/K,130W/K,150W/K,200W/K | ||||
| Switching power supply | DC power:DC48V60A/DV48V90A/DC48V120A/DC48V150A/DC48V200A | ||||
| UPS power supply | UPS: 1KW/2KW/3KW/6KW/10KW | ||||
| Power Distribution Unit | alternating-current distribution/direct current distribution/Ac,dc power distribution | ||||
| dynamic environment monitoring system | 1U monitoring comprising (access control, flooding, smoke, hit, temperature and humidity, mains supply off alarm) | ||||
new design 19 inch rack outdoor telecom cabinet standard wooden box packing +wooden pallet +OEM LOGO
19 inch rack outdoor telecom cabinet Features
* High reliability, maintenance-free, fast assembly, suitable for harsh environment
* High integration, small footprint, short construction period, reduce the construction cost
* Improved thermal design, efficient energy saving, effectively extending the battery life
* Support for fast assembly, ready for the summit, multi-scene roof installation
*dynamic environment monitoring system, full alarm signal detection, real-time alarm information reported
Welcome your inquiry for further discussion regarding on 19 inch rack outdoor telecom cabinet project!
