Quick Details
-
Type:
-
Hydraulic Semi-automatic Cutting Machine
-
Voltage:
-
380v/220v
-
Color:
-
Customized
-
Function:
-
Cut Nonmetal Materials
-
CUTTING AREA:
-
1000*500mm, other size available
-
Driven Type:
-
Hydraulic, no need compressed air
-
Cutting force:
-
8T, 10T, 22T, 25T, 27T etc
Quick Details
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Field installation, commissioning and training, Engineers available to service machinery overseas
-
Application:
-
Shoe Making Industry, cloth, toys, football etc
-
Type:
-
Hydraulic Semi-automatic Cutting Machine
-
Voltage:
-
380v/220v
-
Color:
-
Customized
-
Function:
-
Cut Nonmetal Materials
-
CUTTING AREA:
-
1000*500mm, other size available
-
Driven Type:
-
Hydraulic, no need compressed air
-
Cutting force:
-
8T, 10T, 22T, 25T, 27T etc
Arm Swing Textile Hydraulic Cutter Fabric Cutting Leather Press die Cutting Machine
A pplicable Materials:
This swing arm t extile hydraulic cutter fabric cutting leather press die cutting machine is used for cutting nonmetal materials such as shoe upper, cotton, textile, hand bags, leather, rubber, plastic, paper, facial mask, or other similar materials. It is widely used in shoes making industry, glove making plant, cloth making factory, toy making company, cosmetic industry and etc.
Specification :
|
Model number |
GSB-2C/12 |
GSB-2C/20 |
GSB-2C/25 |
|
Max cutting force |
120KN |
200KN |
250KN |
|
Stroke adjustment |
5-55mm |
5-75mm |
5-75MM |
|
Distance between upper table and lower table |
60-140mm |
65-150mm |
65-150mm |
|
Arm Width |
330x400mm |
350x400mm |
400x500mm |
|
Cutting table size |
900X410mm |
1000x500mm |
1000*500mm |
|
Power |
380v 50Hz/60Hz |
380v 50Hz/60Hz |
380v 50Hz/60Hz |
|
Package size |
880x845x1420mm |
900x960x1570mm |
1080x1030x1600mm |
|
Gross weight |
350kg |
5 5 0kg |
6 5 0kg |

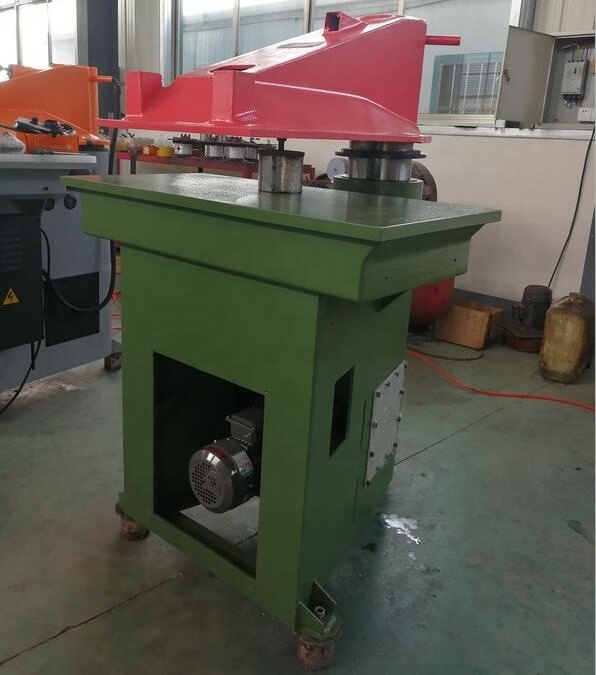

Pictures for Die Cutting Machine :
Other Machine in Plant:
Strip Cutting Machine:
High Precision Four Pore Hydraulic Die Pressing Machine:
Auto Feeding Die Cutting Machine, with feeding and output plate:
Export Wooden Case Package :
