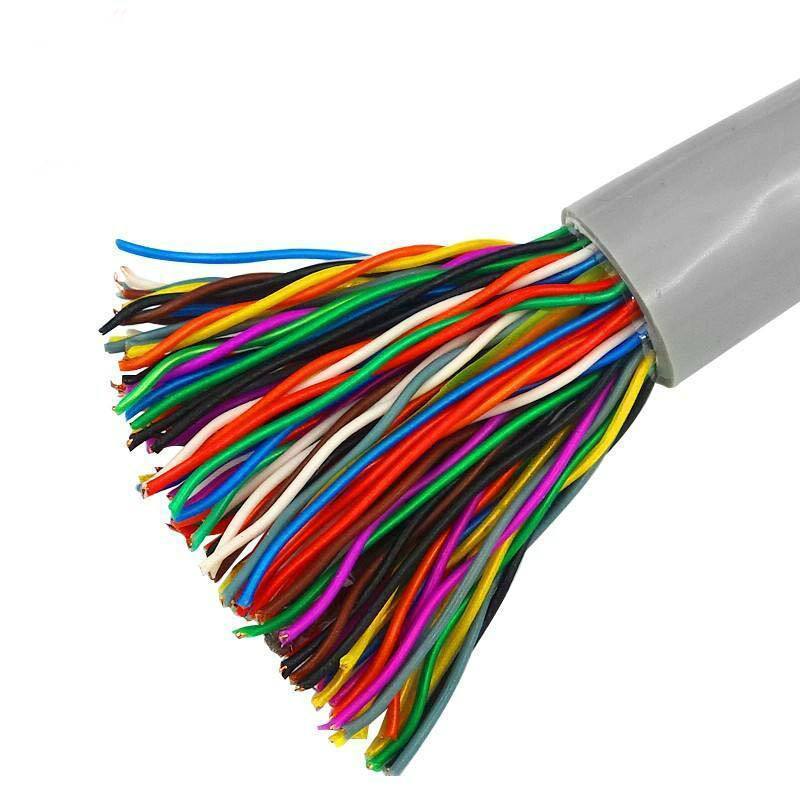

Multicore Jelly Filled Telecommunication Cable HYA/HYAT Armored/Unarmored Telephone Cable Drop Cable for Voice Communication

FOB Reference Price: Get Latest Price
≥1000 Meters
US $0.01
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product name:
Multi Pairs Telephone Cable
Length:
100m/200m/300m/customized
Conductor:
Copper CCA
Color:
White,Black
Insulation:
HD-PE
Packing:
carton/wooden
Insulation Material:
HD-PE 0.9mm
Keyword:
25 pairs telephone cable/ network cable
Certification:
RoHS, ce

Quick Details

Brand Name:
SZADP
Model Number:
Telephone Cable
Place of Origin:
Guangdong, China
Product name:
Multi Pairs Telephone Cable
Length:
100m/200m/300m/customized
Conductor:
Copper CCA
Color:
White,Black
Insulation:
HD-PE
Packing:
carton/wooden
Insulation Material:
HD-PE 0.9mm
Keyword:
25 pairs telephone cable/ network cable
Certification:
RoHS, ce
Product Description
1-200 pairs telephone cable
1)BC ,CCA conductor
2)HDPE insulation
3)PE, PVC or LSZH jacket4)Reference standard:TIA/EIA-568B
Complies to TIA/EIA-568B&ISO/IEC 11801
5)Application:
10 Base-T, 100 Base-T4,
Telephone Voice Wiring
6)Conductor Dimension: 0. 50mm or produced
as per customer request
7)Packing:
a) 305m/roll or Other lengths available
according to client's request.
b) Inner packing: Wooden reel, plastic
reel, and paper reel available.
c) Other packing available according to
client's request.
Parameters
Conductor Size (mm)

0.4
0.5
0.63
0.9
Conductor Resistance                         (Per km in Ohms.) Individual

135 ± 8

86 ± 6

58 ± 4

28 ± 2
Conductor Resistance Unbalance (%) Individual Average
3
1.5
2.5
1
2
1
2
1
Conductor Elongation (minimum %)
15
15
18
18
Attenuation at 150 Khz (db / km)
Shall not exceed
12
8.25
6.3
4.4
Insulation
Solid (MDPE/HDPE)
Spark Test
3 KV RMS AC, 1 Spark per 5 km
Retraction of Insulation               (Shall not exceed)
2.5 mm after 1 min.
Resistance to Compression
200 N, 12 V DC
Insulation Resistance at 500V
5000 Mega Ohm - Km.
Construction
10/20 Pair units & 50/100 pair super units of sizes : 1pair to 200 pairs.
Filling Compound
Water Resistant Compound (Petro Jelly)
Core wrap
Polyester tape
Moisture Barrier
Poly - Al
Sheath / Jacket
PVC/LDPE
Armouring
Galvanised Steel Tape
Armouring Bedding
PE Tape (Water - Proof)
Mutual Capacitance (NF/KM)
Individual Average
52 ± 4.5
52 ± 3
Capacitance Unbalance (PF/KM)
Individual Average
3000 PF
750 PF
Far End Cross Talk (db) at 150 khz
Better than 67.8 RMS indvl. 55 RMS
Near End Cross talk (db) at 150 khz
Better than 55 RMS (individual value)
Pairs
From 1 pair to 200 pairs
